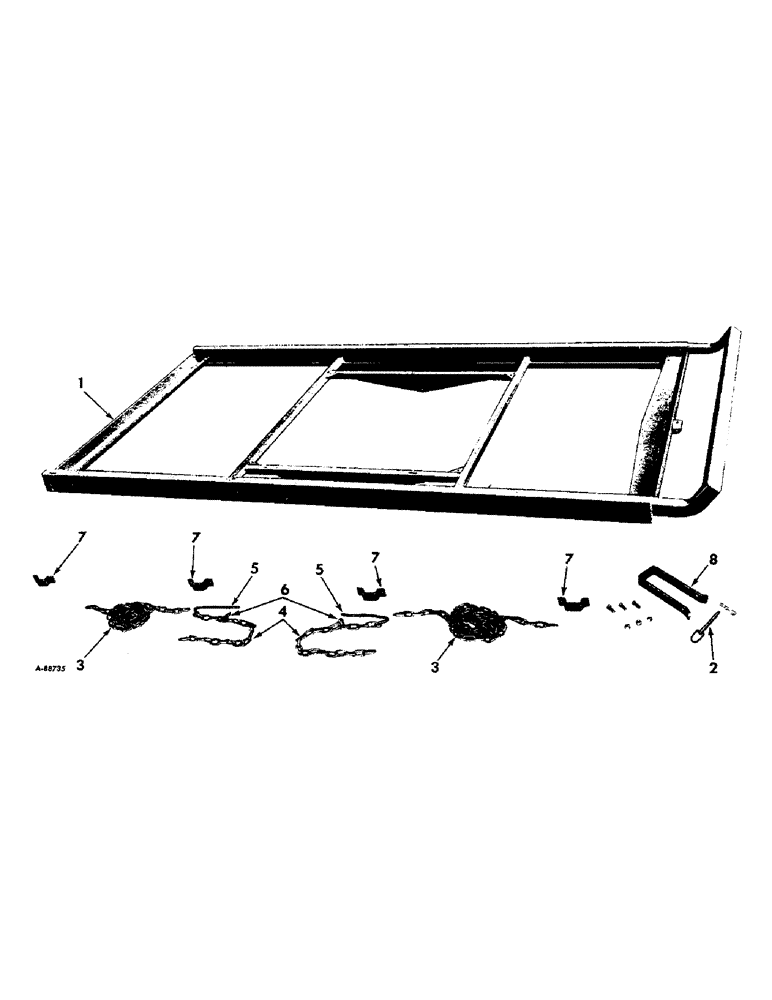

Запчасти Case IH VARIOUS (B-154) - TIE-DOWN CHAIN AND STAKE POCKET ATTACHMENTS AND TILT BED

1

951030R91

TILT BED

1шт.

2

963351R11

PIN, bed latch

1шт.

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

PIN, quick attachable cotter

1шт.

3

963429R1

CHAIN, long

2шт.

4

963403R1

CHAIN, short

2шт.

BOLT, 5/16 x 1 xcrg

4шт.

NUT, 5/16

4шт.

WASHER, 3/8 x 1-1/8 x 18 ga

4шт.

WASHER, 5/16 lock

4шт.

5

964023R1

ARM, tightener

2шт.

6

963394R1

LINK, repair

2шт.

7

959484R1

POCKET, stake

12шт.

BOLT, 5/16 x 3/4 crg

24шт.

NUT, 5/16

24шт.

WASHER, 5/16 lock

24шт.

8

963390R1

STRAP, latch

1шт.

BOLT, 5/16 x 1-1/4 mach

3шт.

WASHER, 5/16 x 3/4 x 16 ga

3шт.

NUT, 5/16 lock

3шт.

963400R91

CHAIN ASSY, short, ref. 4, 5 and 6

1шт.

951041R1

FLOOR BOARD, 5 x 10 ft.

1шт.

BOLT, 3/8 x 1-3/4 crg

12шт.

NUT, 3/8

12шт.

1001029R3

DECAL

IH, on each side rail

2шт.

2750860R1

SAFETY, front of bed

1шт.

2751257R1

PRODUCT GRAPHIC

INTERNATIONAL, on each side rail

2шт.

2753488R1

7 TILT BED TRAILER, on each side rail

2шт.
