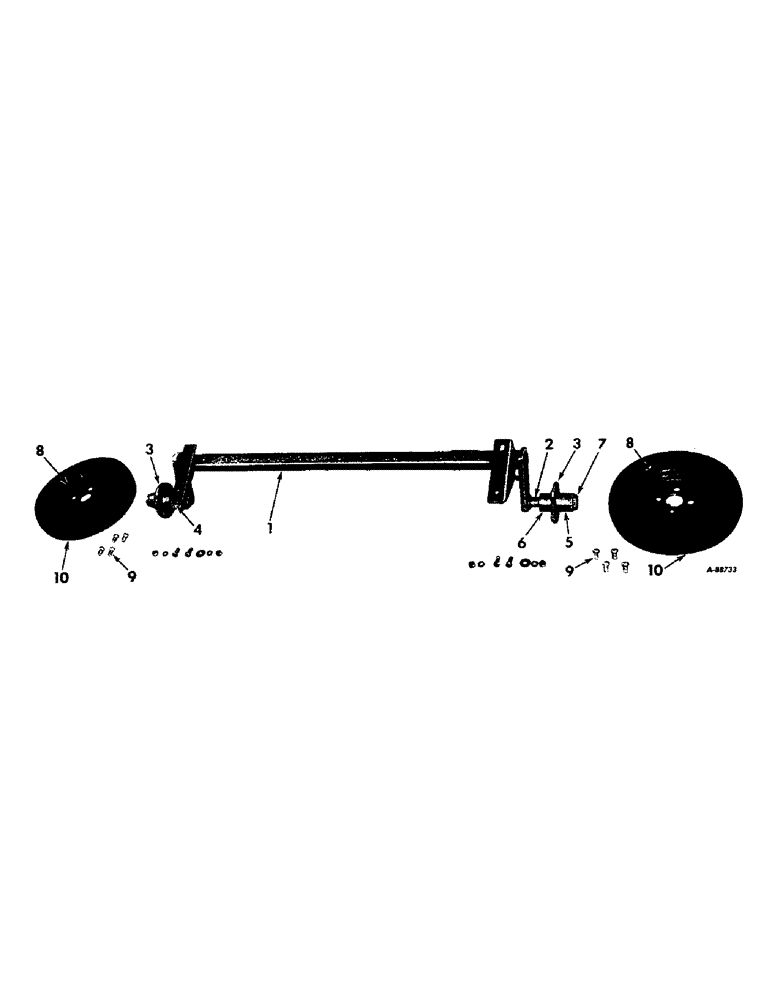

Запчасти Case IH VARIOUS (B-152) - AXLE, HUB AND WHEEL

1

951098R91

AXLE ASSY

2шт.

BOLT, 1/2 x 1-1/4 mach

8шт.

NUT, 1/2

8шт.

WASHER, 9/16 x 1-3/8 x 12 ga

4шт.

WASHER, 1/2 lock

8шт.

NUT, 1 in. NF, spindle

2шт.

PIN, 1/8 x 1-1/2 cotter, spindle

2шт.

2

964032R91

SPINDLE W/NUT AND COTTER PIN, service part

1шт.

3

959300R1

HUB

4шт.

4

964030R91

SEAL

grease

4шт.

5

572564R91

CUP, brg

8шт.

6

463911R91

ROLLER BEARING,1" ID x 0.58"

CONE, brg

8шт.

7

959299R1

CAP, grease

4шт.

8

964031R91

RIM, wheel

4шт.

9

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

cone-faced wheel

16шт.

10

964033R91

TIRE W/VALVE, 4.80/4.00, 4 ply

4шт.

964034R91

HUB W/CUPS PRESSED IN, ref. 3 and 5

1шт.

251H

GREASE, wheel brg, 1/4 lb per wheel

1шт.
