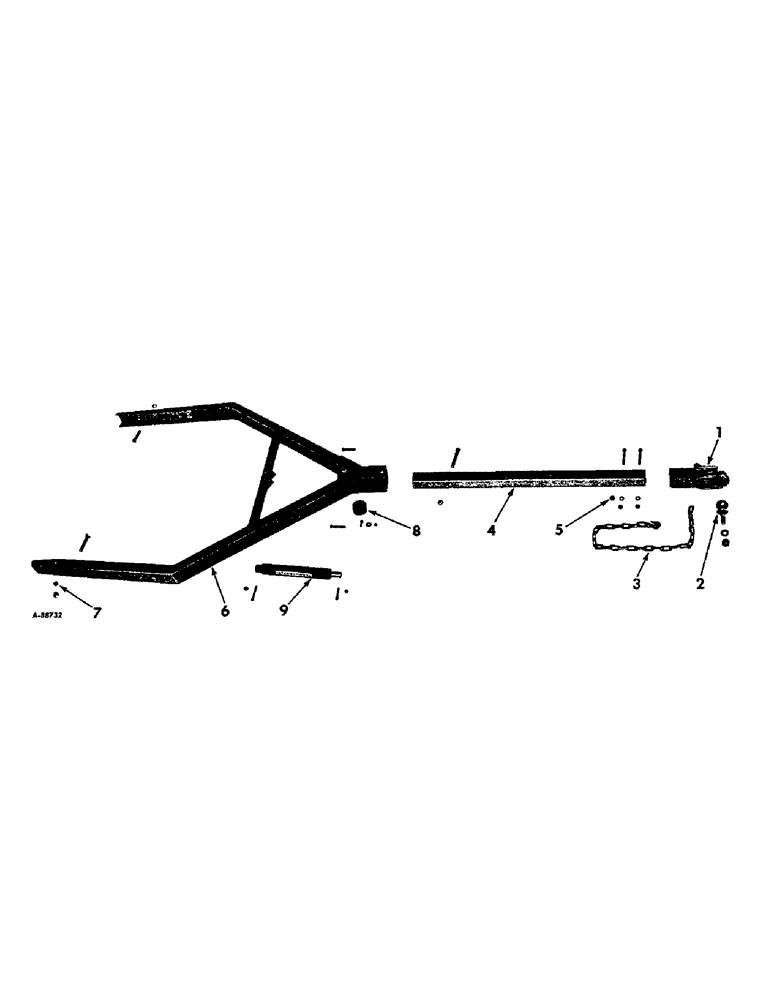

Запчасти Case IH VARIOUS (B-151) - HITCH, UNDERCARRIAGE AND TILT CONTROL CYLINDER

1

951096R91

COUPLER, ball

1шт.

SCREW, 1/2 x 3-1/2 cap

2шт.

NUT, 1/2 self-locking

2шт.

2

951097R91

BALL, hitch

1шт.

3

951128R1

CHAIN, safety

1шт.

4

951050R11

TONGUE, hitch

1шт.

5

GROMMET, no. 6

1шт.

SCREW, 5/8 x 4-1/2 cap

1шт.

NUT, 5/8 self-locking

1шт.

6

951042R91

UNDERCARRIAGE

1шт.

SCREW, 1/2 x 2-1/2 oval-pt set, Hitch tongue adjusting screws

2шт.

SCREW, 5/8 x 4 cap, pivot screws

2шт.

NUT, 5/8 self-locking

2шт.

7

GROMMET, no. 6

1шт.

SCREW, 10-24 x 3/4 rd-hd mach, on ground wire

1шт.

NUT, 10-24

1шт.

WASHER, no. 10 lock

1шт.

8

660115R1

INSULATOR BLOCK

PAD, shock

1шт.

BOLT, 5/16 x 1 crg

1шт.

NUT, 5/16

1шт.

WASHER, 5/16 x 3/4 x 16 ga

1шт.

WASHER, 3/8 x 1-1/8 x 18 ga

1шт.

9

963362R91

CYLINDER, tilt control, 1-1/2 x 8, See hydraulic section of TM-4A parts catalog for components

1шт.

BOLT, 3/8 x 2-1/4 mach

1шт.

BOLT, 3/8 x 3-1/4 mach

1шт.

NUT, 3/8 self-locking

2шт.

951101R91

COUPLER REAPAIR KIT, internal coupler parts, Not illustrated

1шт.
