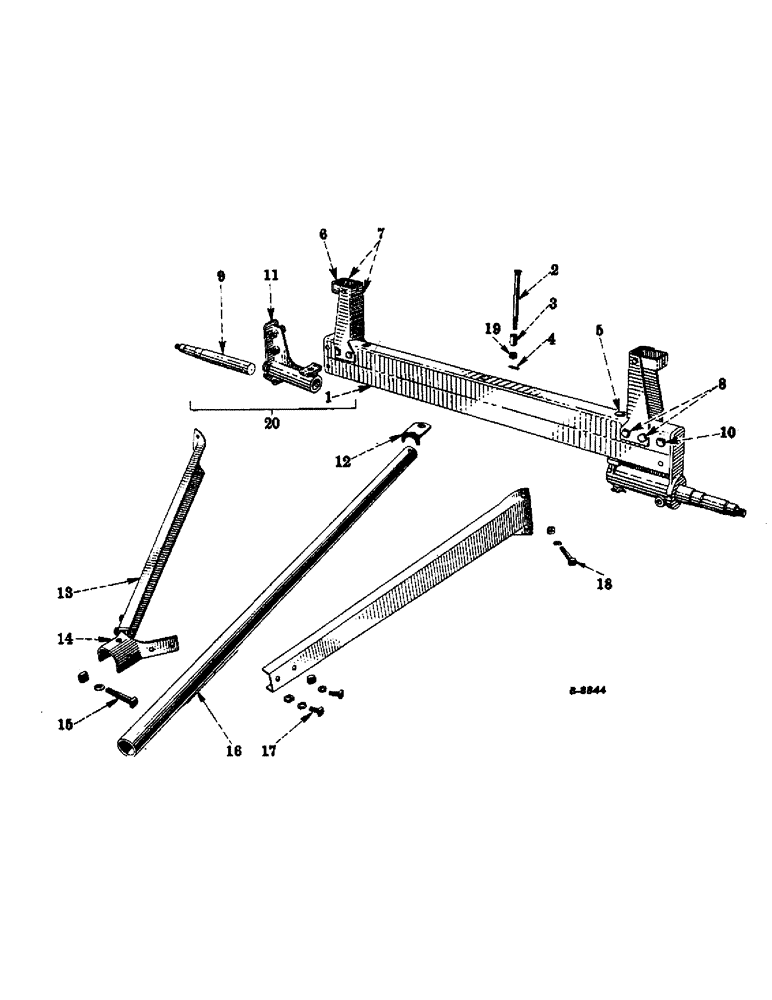

Запчасти Case IH VARIOUS (A-21) - CHASSIS ASSEMBLY, REAR END

1

16663WA

CHANNEL, rear axle

1шт.

2

Q3847

BOLT, 5/8-11NC x 8 no. 3 plow

1шт.

25-1210

SLOTTED NUT,5/8"-11, G5

NUT, 5/8-11NC slt-hex

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

3

16671W

SPACER, rear reach

1шт.

4

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

5

Q3846

BOLT, 5/8-11NC x 9 dld no. 3 plow

2шт.

25-1210

SLOTTED NUT,5/8"-11, G5

NUT, 5/8-11NC slt-hex

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

6

16699W

RING, stake

2шт.

104196

RIVET, 3/8 x 7/8 x 90 deg csk-hd

4шт.

7

16696W

STAKE W/RING, 16699W

2шт.

8

17675R11

BOLT W/NUT, 1/2-13NC x 3-1/2 hex-hd mach

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

9

456110R1

AXLE, rear stub

2шт.

427639

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-16NF slotted hex

2шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

2шт.

103346

WASHER

13/16 ID x 1-1/2 OD x 10 ga, plain

2шт.

10

17650R11

BOLT

W/NUT, 1/2-13NC x 3-1/4 hex-hd mach

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

11

456114R1

HOLDER, rear axle

2шт.

12

16672W

HITCH, rear axle

1шт.

13

16726W

HOUND, rear

2шт.

14

16725W

BRACE, rear reach

1шт.

15

179896

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 5

1шт.

114774

NUT, 1/2-13NC hex

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

16

16721W

PIPE, rear reach

1шт.

17

17427R11

BOLT

W/NUT, 7/16-14NC x 1 hex-hd mach

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

18

17675R11

BOLT W/NUT, 1/2-13NC x 3-1/2 hex-hd mach

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

19

25-1210

SLOTTED NUT,5/8"-11, G5

NUT, 5/8-11NC slt-hex

1шт.

20

456125R91

AXLE ASSY, rear, Composed of

1шт.

456110R1

AXLE

2шт.

Q3846X

BOLT

2шт.

16663WA

CHANNEL

1шт.

456114R1

HOLDER

2шт.
