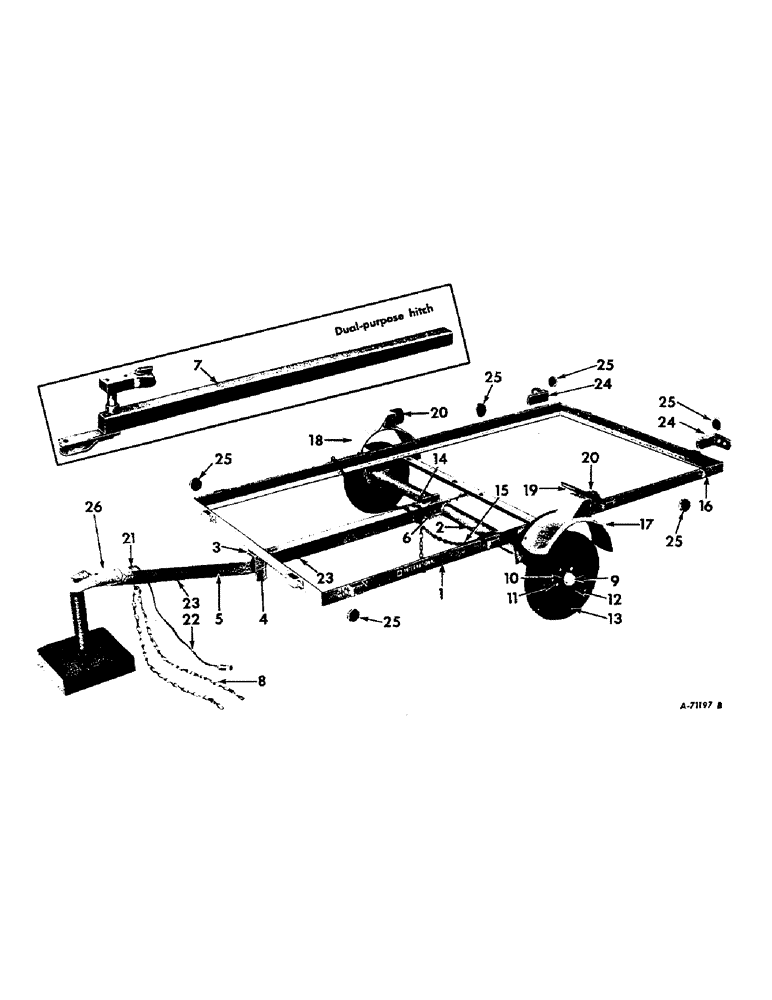

Запчасти Case IH VARIOUS (B-145) - FRAME, HITCH LICENSE BRACKET, FENDERS,, TAILLIGHT, WHEELS AND RELATED PARTS

1

959443R91

FRAME, bed

1шт.

2

959446R91

CHASSIS

1шт.

3

959439R1

SHOCK, pad bed

1шт.

RIVETS, 1/4 x 3/4 wagon box

2шт.

4

959459R1

PIN

headed

1шт.

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

PIN, quick attachable cotter

1шт.

5

964020R92

HITCH W/COUPLER AND BALL

1шт.

5

964024R92

HITCH W/O COUPLER AND BALL

1шт.

6

516227R1

DOWEL

PIN, headed

1шт.

PIN, 3/16 x 1-1/4 cotter

1шт.

7

964017R92

HITCH, dual-purpose

1шт.

959458R1

PIN, headed

1шт.

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

PIN, quick attachable cotter

1шт.

8

964004R91

CHAIN, safety

1шт.

9

959299R1

CAP, grease

2шт.

10

959300R1

HUB

2шт.

10

964034R91

HUB, with cups pressed in

2шт.

463911R91

ROLLER BEARING,1" ID x 0.58"

CONE, Timken

4шт.

572564R91

CUP

4шт.

11

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

S, wheel

8шт.

12

964031R91

RIM, 8 X 3-3/4 I. D. C.

2шт.

13

TIRE, trailer type, 4.80/4.00, 4 ply, not a service part

2шт.

14

964024R1

CHAIN

1шт.

BOLT, 5/16 x 1-1/4 crg

1шт.

NUT, 5/16

1шт.

WASHER, 5/16 lock

1шт.

WASHER, 3/8 x 7/8 x 16 ga

1шт.

15

964026R1

CHAIN

1шт.

BOLT, 5/16 x 1-1/4 crg

1шт.

NUT, 5/16

1шт.

WASHER, 5/16 lock

1шт.

WASHER, 3/8 x 7/8 x 16 ga

1шт.

16

959484R1

POCKETS, stake

12шт.

BOLTS, 5/16 x 3/4 crg

24шт.

NUT, 5/16

24шт.

WASHER, 5/16 lock

24шт.

17

959481R93

FENDER, LH

1шт.

BOLT, 1/2 x 1-1/4 crg

2шт.

WASHER, 1/2 lock

2шт.

NUT, 1/2

2шт.

18

959482R93

FENDER, RH

1шт.

BOLT, 1/2 x 1-1/4 crg

1шт.

WASHER, 1/2 lock

1шт.

NUT, 1/2

1шт.

19

962120R92

BRACKET, license

1шт.

BOLT, 5/16 x 1 crg

4шт.

WASHER, 5/16 lock

4шт.

NUT, 5/16

4шт.

20

962350R91

TAILLIGHT, Consists of:

2шт.

964586R1

LENS

1шт.

964587R1

GASKET

1шт.

964588R1

SNAP RING

1шт.

964589R1

LICENSE WINDOW

1шт.

964590R1

WIRING PIGTAIL

1шт.

21

117962

GROMMET,3/8" ID x 27/32" x .188"

1шт.

22

959499R92

HARNESS, wiring

1шт.

23

63402H

CLIP, wire

7шт.

24

961318R1

BRACKET, reflector

2шт.

25

964187R1

REFLECTOR, red

4шт.

25

964188R1

REFLECTOR, amber

2шт.

26

959436R91

HITCH ASSY, trailer

1шт.

WASHER, 3/8 lock

2шт.

NUT, 3/8

2шт.

BOLT, 3/8 x 3-1/2 mach

2шт.

50425H

LINK, repair

1шт.

959479R11

BALL, coupler, For towing vehicle

1шт.

964000R1

FLOOR BOARD, heavy duty

1шт.

BOLTS, 5/16 x 1-1/2 crg

10шт.

NUT, 5/16

10шт.

WASHER, 5/16 lock

10шт.

251H

GREASE, wheel brg, 1/4 lb per wheel

1шт.

964030R91

SEAL

2шт.

964023R1

TIGHTENER, arm

1шт.

964023R11

ARM, tie down chain end

1шт.
