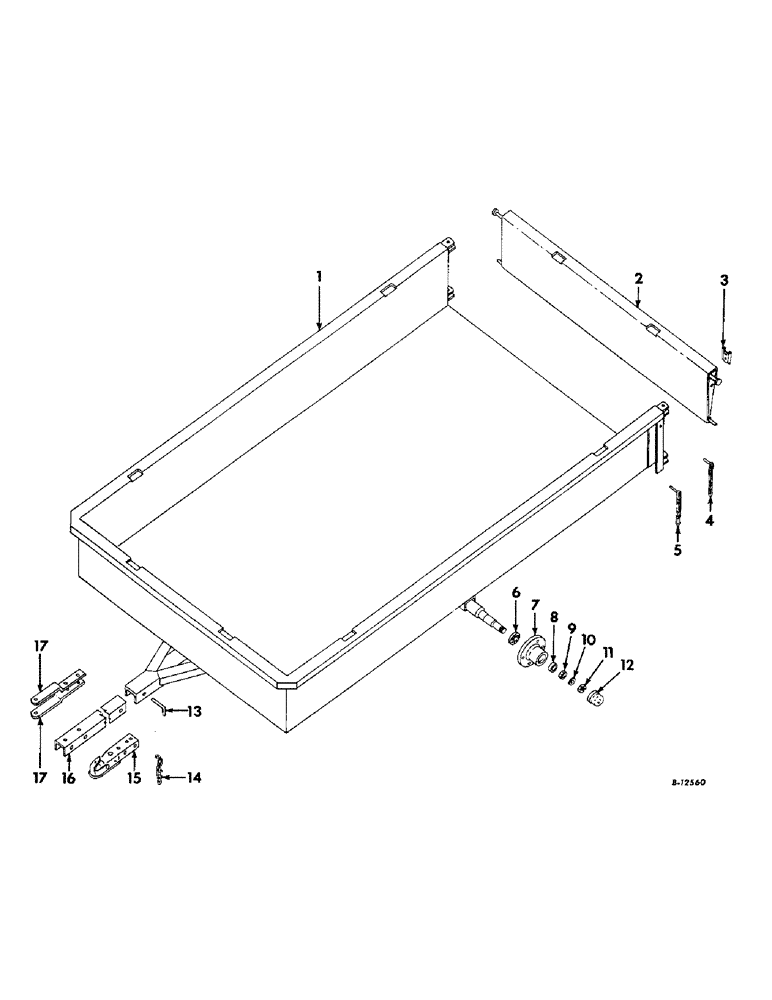

Запчасти Case IH VARIOUS (B-141) - TRAILER BOX, TAILGATE, HITCH, WHEEL BEARINGS AND HUB, SOCKET UNIT AND TAPE PACKAGE

1

465652R91

BOX, trailer

1шт.

.

Q3434

PIN

3/4 x 3-1/4 dld std-hd

1шт.

.

PIN, 1/4 x 1-1/4 cotter

1шт.

2

465675R11

TAILGATE

1шт.

3

398976R1

BRACKET

SOCKET, safety lamp, Will work for 363919R1

1шт.

.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16-18 x 3/4 c-z sq-nk crg

2шт.

.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

.

619855R1

WASHER

11/32 x 3/4 x 16 ga c-z

2шт.

.

120376

NUT,5/16"-18, G5

2шт.

4

465679R11

CHAIN W/PIN, tailgate holdup

2шт.

.

NUT, 1/4 c-z

2шт.

.

187759

SCREW, 1/4 x 7/8 c-z truss-hd slt mach

2шт.

.

WASHER, 1/4 c-z lock

2шт.

.

97865H

WASHER

9/32 x 7/8 x 18 ga c-z

2шт.

5

465680R11

CHAIN W/PIN, lower tailgate

2шт.

.

NUT, 1/4 c-z

2шт.

.

187759

SCREW, 1/4 x 7/8 c-z truss-hd slt mach

2шт.

.

WASHER, 1/4 c-z lock

2шт.

.

97865H

WASHER

9/32 x 7/8 x 18 ga c-z

2шт.

6

602957R91

BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W

CONE W/SEAL AND CUP, inner

2шт.

7

465870R21

HUB

W/CUPS, Order 465492R2

2шт.

.

453769R2

BOLT,Round, 1/2" - 20 x 1 5/8", Grade 8

1/2 UNF x 1-5/8

8шт.

.

453770R1

WHEEL NUT

1/2 UNF

8шт.

7

465492R2

HUB

wheel

2шт.

.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

1/2 x 15/16 c-z conical hd

8шт.

8

651814R1

BEARING CUP

CUP, outer bearing

2шт.

9

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE, outer bearing

2шт.

9

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

10

575813R1

WASHER

21/32 x 1-1/4 x 11 ga

2шт.

11

69442D

NUT

3/4UNF slotted

2шт.

.

PIN, 5/32 x 1-1/4 cotter

2шт.

12

651194R1

CAP

hub

2шт.

13

465664R1

PIN, tongue release

1шт.

.

520175R1

CLIP

PIN, quick attachable cotter

1шт.

14

459902R1

CHAIN W/HOOKS, stay, special

2шт.

.

WASHER, 13/32 x 13/16 x 16 ga

1шт.

15

465683R91

COUPLER W/BALL, hitch, special

1шт.

.

BOLT W/NUT, 3/8 x 3 hex-hd mach

2шт.

.

WASHER, 3/8 lock

2шт.

16

465672R11

TONGUE, hitch

1шт.

17

465674R91

STRAP, hitch

2шт.

.

BOLT W/NUT, 1/2 x 2 hex-hd mach

2шт.

.

WASHER, 1/2 lock

2шт.

.

463036R1

WHEEL (STEERING)

WHEEL W/RIM, disk, 14 X 5J

2шт.

.

455169R92

WHEEL

W/RIM, disk, 15 X 4-1/2, special

2шт.

.

TIRE, passenger, 6.70 X 15, 6 ply

2шт.

.

TUBE, pneumatic, 6.70 X 15

2шт.

.

624342R91

TAPE PACKAGE, reflective, special, Consists of two 2 x 8 in. strips of scotchlight tape or equivalent

1шт.

.

476841R91

PRODUCT GRAPHICS, Consists of:

1шт.

.

2751047R1

PRODUCT GRAPHIC

MCCORMICK INTERNATIONAL, on center of tailgate

1шт.

.

1000840R3

DECAL

IH, above McCormick International

1шт.
