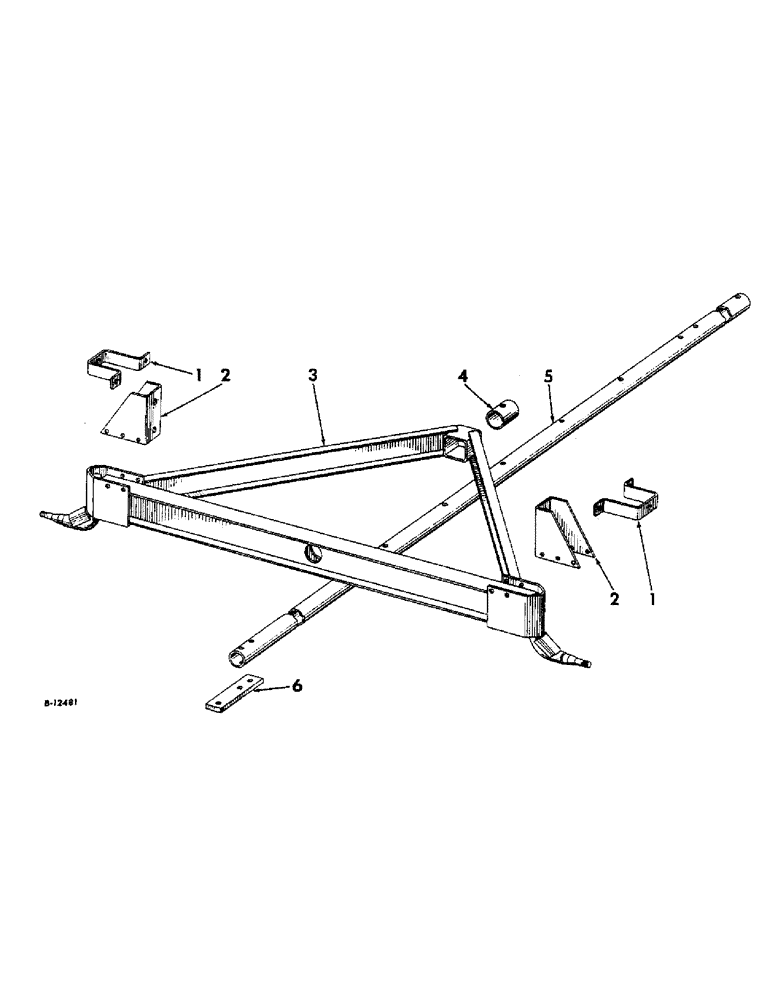

Запчасти Case IH VARIOUS (B-136) - REAR FRAME AND REACH POLE

1

465039R1

TIE, bolster stake

2шт.

2

465031R1

STAKE, bolster

2шт.

BOLT, 3/8 x 4 c-z mach

4шт.

NUT, 3/8 c-z hex

4шт.

WASHER, 3/8 c-z lock

4шт.

3

467469R91

FRAME, rear

1шт.

69442D

NUT

3/4UNF slotted

2шт.

PIN, 5/32 x 1-1/4 cotter

2шт.

615168R1

WASHER

25/32 x 1-1/2 x 11 ga

2шт.

4

463666R1

COLLAR, reach

1шт.

BOLT W/NUT, 1/2 x 3-1/4 c-z mach

2шт.

WASHER, 1/2 c-z lock

2шт.

5

484969R1

POLE, standard reach, Will work for 463697R3

1шт.

5

470152R2

POLE, cotton rech, special

1шт.

5

463698R2

POLE, extended reach, special

1шт.

6

463668R1

PLATE, rear draft

1шт.

BOLT W/NUT, 1/2 x 1-1/4 c-z mach

2шт.

WASHER, 1/2 c-z lock

2шт.
