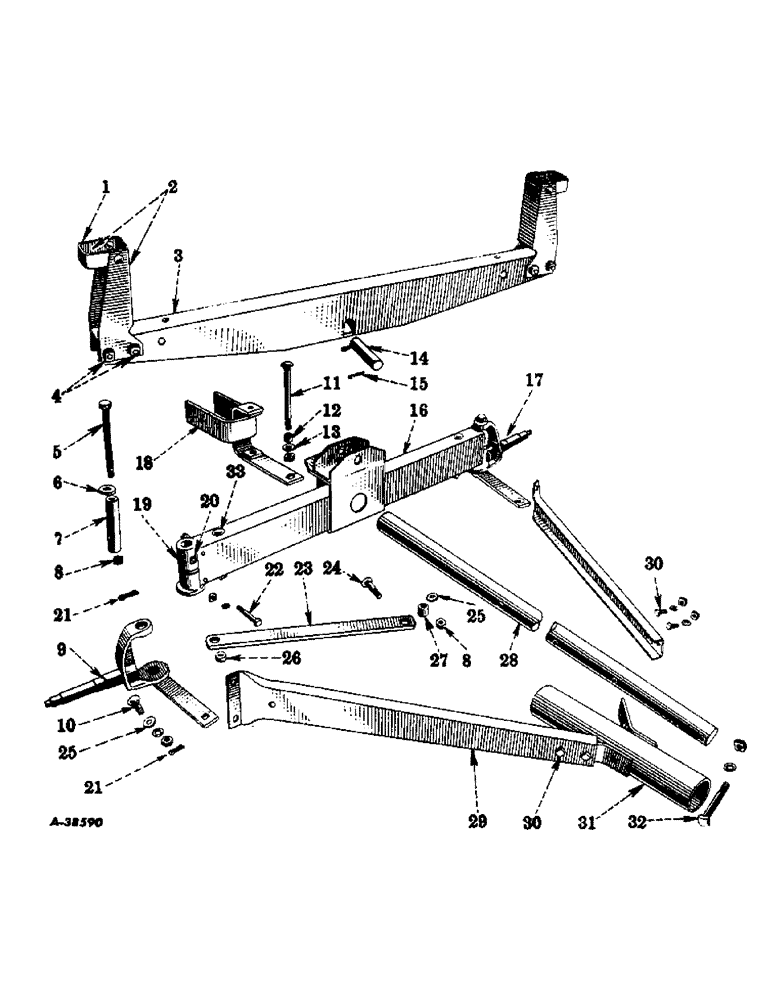

Запчасти Case IH VARIOUS (A-19) - CHASSIS ASSEMBLY, FRONT END

1

16699W

RING, stake

2шт.

104196

RIVET, 3/8 x 7/8 x 90 deg csk-hd

4шт.

2

16696W

STAKE

2шт.

3

16692WB

BOLSTER, floating

1шт.

4

17675R11

BOLT W/NUT, 1/2-13NC x 3-1/2 hex-hd mach

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

5

Q5032

SCREW, 5/8-11NC x 8 dld cap

2шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

6

16744W

WASHER

21/32 ID x 1-1/2 OD x 3/16 plain

2шт.

7

16658WA

SPACER, front spindle yoke

2шт.

8

25-1210

SLOTTED NUT,5/8"-11, G5

NUT, 5/8-11NC hex slotted

3шт.

9

456111R91

SPINDLE, left front

1шт.

427639

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-16NF slotted hex

1шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

1шт.

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

13/16 ID x 1-1/2 OD x 10 ga, plain

1шт.

10

Q3845

BOLT, 5/8-11NC x 1-3/4 dld crg

2шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

11

Q3842

BOLT, 3/4-10NC x 8-1/2 dld crg

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

427636

SLOTTED NUT,3/4"-10, G5

NUT, 3/4-10NC slotted hex

1шт.

12

16648W

BUSHING, steering yoke support

1шт.

13

Q3698

WASHER

3/4 ID x 2 OD x 11 ga, plain

1шт.

14

16695W

PIN, floating bolster

1шт.

15

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

2шт.

16

16649WB

CHANNEL, front axle

1шт.

16

456124R92

AXLE ASSY, front, Composed of

1шт.

16660W

BAR

1шт.

683WB

BEARING

2шт.

16643WD

BRACKET

1шт.

16648W

BUSHING

1шт.

16661W

BUSHING

1шт.

16662W

BUSHING

2шт.

16649WB

CHANNEL

1шт.

16695W

PIN

1шт.

16658WA

SPACER

2шт.

456111R91

SPINDLE

1шт.

456112R91

SPINDLE

1шт.

16744W

WASHER

2шт.

17

456112R91

SPINDLE, right front

1шт.

427639

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-16NF slotted hex

1шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

1шт.

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

13/16 ID x 1-1/2 OD x 10 ga, plain

1шт.

18

16643WD

BRACKET, draft

1шт.

Q3841

BOLT, 5/8-11NC x 6-1/2 dld crg

1шт.

M153M

NUT

5/8-11NC horned

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

19

683WB

BEARING, front spindle

2шт.

20

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

21

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

6шт.

22

17650R11

BOLT

W/NUT, 1/2-13NC x 3-1/4 hex-hd mach

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

23

16660W

BAR, steering tie

2шт.

24

Q3844

BOLT, 5/8-11NC x 2-3/8 dld crg

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

25

Q1540

WASHER

21/32 ID x 1-3/4 OD x 12 ga, plain

3шт.

26

16662W

BUSHING, short tie bar

2шт.

27

16661W

BUSHING, long tie bar

1шт.

28

16720W

PIPE, front reach

1шт.

29

16675WA

HOUND, front

2шт.

30

17427R11

BOLT

W/NUT, 7/16-14NC x 1 hex-hd mach

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

31

16722WA

BRACE, front reach

1шт.

32

17721R11

BOLT W/NUT, 1/2-13NC x 4 hex-hd mach

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

33

15314R1

BOLT, 5/8-11NC x 5-3/4 crg

2шт.

114820

NUT, 5/8-11NC hex

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.
