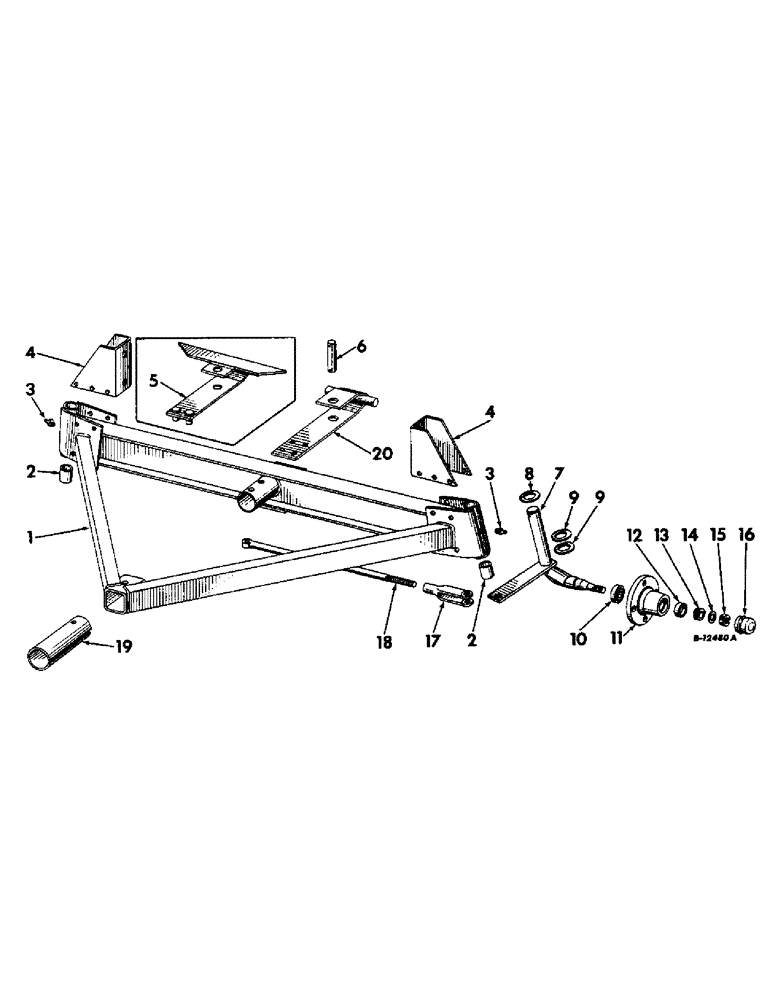

Запчасти Case IH VARIOUS (B-135) - FRONT FRAME, SPINDLES AND STEERING BRACKET

1

465016R62

FRAME, front

1шт.

.

BOLT, 1/2 x 3-1/2 c-z mach

1шт.

.

NUT, 1/2 c-z

3шт.

.

472065R1

SCREW, 1/2 x 3.26 in, c-z cap

2шт.

.

WASHER, 1/2 c-z lock

3шт.

2

582245R1

BUSHING

4шт.

3

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

NIPPLE, LUBE, 90°, 1/4" NPT x .75" lg, Drive

2шт.

4

465031R1

STAKE, bolster

2шт.

.

BOLT, 3/8 x 4 c-z mach

4шт.

.

NUT, 3/8 c-z hex

4шт.

.

WASHER, 3/8 c-z lock

4шт.

5

465041R91

BRACKET, steering, 1961 and 1962

1шт.

.

PIN, 3/16 x 1 cotter

2шт.

.

PIN, 1/4 x 2 cotter

2шт.

.

551177R1

WASHER

21/32 x 1-1/4 x 16 ga

2шт.

.

WASHER, 1-1/32 x 1-3/4 x 16 ga

2шт.

.

WASHER, 1-1/32 x 1-3/4 x 22 ga

2шт.

6

465040R1

PIN, king

1шт.

.

PIN, 1/4 x 2 cotter

2шт.

.

WASHER, 1-1/32 x 1-3/4 x 16 ga

2шт.

7

472083R91

SPINDLE, front LH, 1963 and since

1шт.

7

467471R91

SPINDLE, front LH, 1961 and 1962

1шт.

7

466026R91

SPINDLE, front LH, Order 467471R91

1шт.

.

PIN, 1/4 x 2-1/2 cotter

1шт.

.

PIN, 5/32 x 1-1/4 cotter

1шт.

7

472084R91

SPINDLE, front RH, 1963 and since

1шт.

7

467472R91

SPINDLE, front RH, 1961 and 1962

1шт.

7

465028R91

SPINDLE, front RH, Order 467472R91

1шт.

.

PIN, 1/4 x 2-1/2 cotter

1шт.

.

PIN, 5/32 x 1-1/4 cotter

1шт.

8

243

WASHER, 1-17/32 x 2 x 16 ga

2шт.

9

551183R1

WASHER, 1-17/32 x 2-1/2 x 16 ga

4шт.

10

602957R91

BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W

CONE W/SEAL AND CUP, inner

4шт.

11

472220R11

HUB

W/SET SCREW, 443804 assy, wheel, 1964 and since

4шт.

.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

hub

16шт.

.

443804

SCREW, 1/4NF x 1/4 cd-pltd slt-ov-pt set

4шт.

11

461892R31

HUB, wheel, Serial Range: 1961-1964

4шт.

.

453769R2

BOLT,Round, 1/2" - 20 x 1 5/8", Grade 8

1/2UNF x 1-5/8

16шт.

.

453770R1

WHEEL NUT

1/2UNF

16шт.

12

651814R1

BEARING CUP

CUP, outer bearing

4шт.

13

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE, outer bearing

4шт.

13

651815R91GV

BEARING CONE

Value, Cone Bearing

4шт.

14

615168R1

WASHER

25/32 x 1-1/2 x 11 ga

2шт.

15

69442D

NUT

3/4 slotted

2шт.

16

651194R1

CAP

CPA, hub

4шт.

17

127786

ADJUSTABLE CLEVIS,5/16"-18 x 4 15/16"

CLEVIS

1шт.

.

26209B

AXLE PIN

PIN, 5/8 x 1-13/16 dld std-hd

2шт.

.

PIN, 3/16 x 1 cotter

2шт.

.

551177R1

WASHER

21/32 x 1-1/4 x 16 ga

2шт.

18

465045R1

ROD, steering

2шт.

.

114498

JAM NUT,Jam, 5/8"-18, G5

2шт.

19

463656R1

COLLAR, reach

1шт.

20

472061R91

BRACKET, steering, 1963 and since

1шт.

.

PIN, 3/16 x 1 cotter

2шт.

.

PIN, 1/4 x 2 cotter

2шт.

.

PIN, 5/8 x 1-5/16 dld std-hd

2шт.

.

551177R1

WASHER

21/32 x 1-1/4 x 16 ga

2шт.

.

WASHER, 1-1/32 x 1-3/4 x 16 ga

2шт.

.

WASHER, 1-1/32 x 1-3/4 x 22 ga

2шт.

.

455169R92

WHEEL

W/RIN, disk, 15 x 4-1/2

4шт.

.

463063R1

BUSHING

WHEEL W/RIM, disk, 14 x 5J

4шт.

.

TIRE, passenger, 6.70 X 15, 6 ply

4шт.

.

TIRE, passenger, 7.10 X 15, 6 ply

4шт.

.

TIRE, passenger, 8.00 X 14, 6 ply

4шт.

.

TUBE, pneumatic, 6.70 X 15

4шт.

.

TUBE, pneumatic, 7.10 X 15

4шт.

.

TUBE, pneumatic, 8.00 X 14

4шт.
