Запчасти Case IH VARIOUS (B-130) - VACUUM HYDRAULIC BRAKES, BUILT 1966 AND CONTINUED SINCE, OPTIONAL

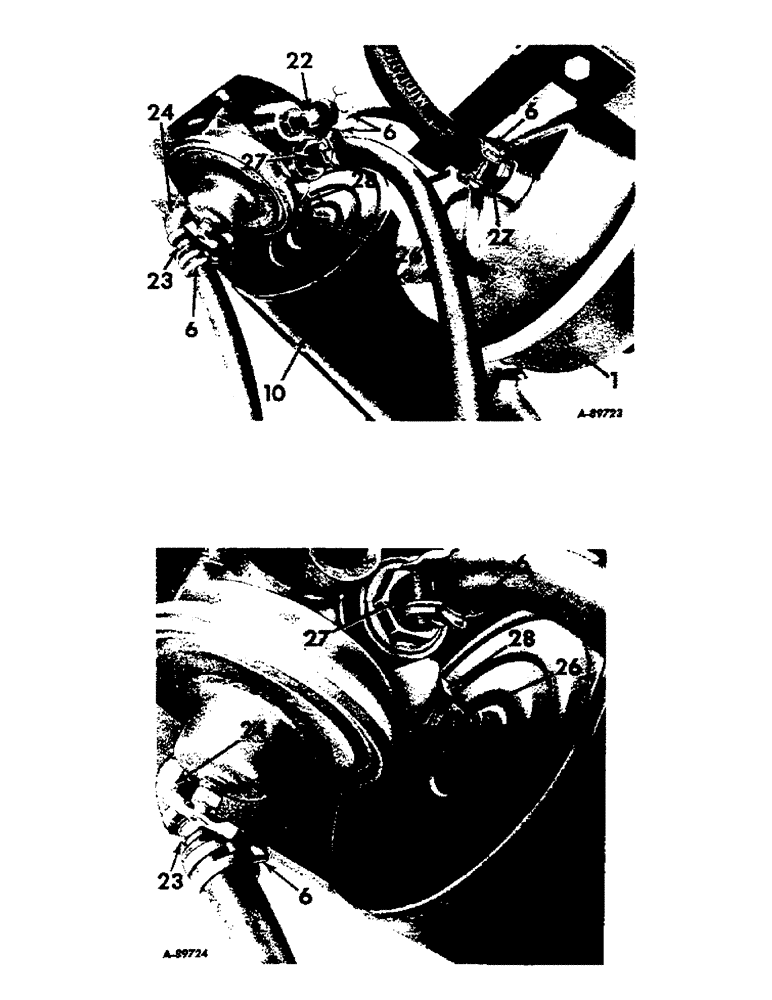

Схема запчастей Case IH VARIOUS - (B-130) - VACUUM HYDRAULIC BRAKES, BUILT 1966 AND CONTINUED SINCE, OPTIONAL

Артикул

Название

Примечание

Количество

1

951900R91

POWER KIT, vacuum, Consists of:

1шт.

951901R91

POWER KIT

1шт.

BOLT, 7/16 x 1 mach

2шт.

NUT, 7/16

2шт.

NUT, 1/2

1шт.

WASHER, 1/2 lock

1шт.

951902R1

COUPLING, hose

1шт.

951903R1

COUPLING, hose w/restrictor

1шт.

951904R1

PLUG, coupling

2шт.

30846H

NIPPLE, 3/8 pipe to 1/2 in. hose

2шт.

240369R91

CLAMP, hose, 8 required

4шт.

103647

VALVE

COCK, drain

1шт.

698567R1

BOLT, terminal

2шт.

Included in kit but not used in this application.

1шт.

BOLT, 3/8 x 1 mach

4шт.

Included in kit but not used in this application.

1шт.

NUT, 3/8

4шт.

WASHER, 3/8 lock

4шт.

ELBOW, 1/2 x 45 deg street, pipe

2шт.

Included in kit but not used in this application.

1шт.

ELBOW, 3/8 pipe to 1/2 hose

2шт.

TEE, 3/8 in, pipe

1шт.

Included in kit but not used in this application.

1шт.

REDUCER, 1/4 to 3/8, pipe

1шт.

Included in kit but not used in this application.

1шт.

951965R1

HOSE, vacuum, 8 ft length

1шт.

2

951902R1

COUPLING, hose

1шт.

3

951903R1

COUPLING, hose w/restrictor

1шт.

4

951904R1

PLUG, coupling

2шт.

5

30846H

NIPPLE, 3/8 in. pipe to 1/2 in. hose

2шт.

6

240369R91

CLAMP, hose

8шт.

7

103647

VALVE

COCK, drain

1шт.

8

951988R1

BRACKET, front mounting

1шт.

9

951989R1

BRACKET, rear mounting

1шт.

BOLT, 3/8 x 1 mach

4шт.

NUT, 3/8

4шт.

WASHER, 3/8 lock

4шт.

10

74285HB

TANK, vacuum

1шт.

11

964621R1

BAND, vacuum tank mounting

1шт.

BOLT, 1/4 x 1-1/2 mach

1шт.

NUT, 1/4

1шт.

WASHER, 1/4 lock

1шт.

12

951905R1

VALVE, relay

1шт.

13

951906R1

BREATHER

1шт.

BOLT, 7/16 x 1 mach

1шт.

NUT, 7/16

1шт.

WASHER, 7/16 lock

1шт.

14

964615R1

TUBE, hydraulic, 12 in.

1шт.

15

951990R1

TUBE, hydraulic, 33-1/2 in.

2шт.

16

951991R1

TUBE, hydraulic, 47 in.

1шт.

17

951912R1

TUBE, hydraulic, 60 in.

1шт.

18

127927

TEE,7/16"-24, Inv Flare, Fem, Brass

female, 7/16-24 straight thd, tube fitting

3шт.

19

567118R1

ELBOW, union 7/16-24 straight thd, tube fitting

2шт.

20

964191R1

HOSE, flex, hyd, brake hose

4шт.

21

140579

CLAMP, closed

8шт.

SCREW, no. 6-3/8 self-tapping, Type B

2шт.

BOLT, 1/4 x 3/4 mach

6шт.

Included in kit but not used in this application.

1шт.

NUT, 1/4

6шт.

WASHER, 1/4 lock

6шт.

22

30844H

ELBOW, 90 deg, 1/2 in. pipe to 1/2 in hose

1шт.

24

ELBOW, 1/4 x 90 deg street, pipe

1шт.

25

ELBOW, 3/8 x 90 deg street, pipe

1шт.

26

NIPPLE, 1/2 in. x 1-1/2 in. pipe

1шт.

27

68406H

NIPPLE, 1/2 in. pipe to 1/2 in. hose

3шт.

28

REDUCER, bushing type, 3/4 to 1/2 pipe

1шт.

29

REDUCER, bushing type, 1/2 to 1/4 pipe

1шт.

30

951907R91

BRAKE, LH

2шт.

31

951908R91

BRAKE, RH

2шт.

32

117962

GROMMET,3/8" ID x 27/32" x .188"

no. 6

2шт.

951995R1

HOSE, vacuum, 1/2 in. x 9 ft., This length of hose and the 8 ft. piece supplied with the power kit are cut to make the short lengths required.

1шт.

Выбрано товаров: 71
