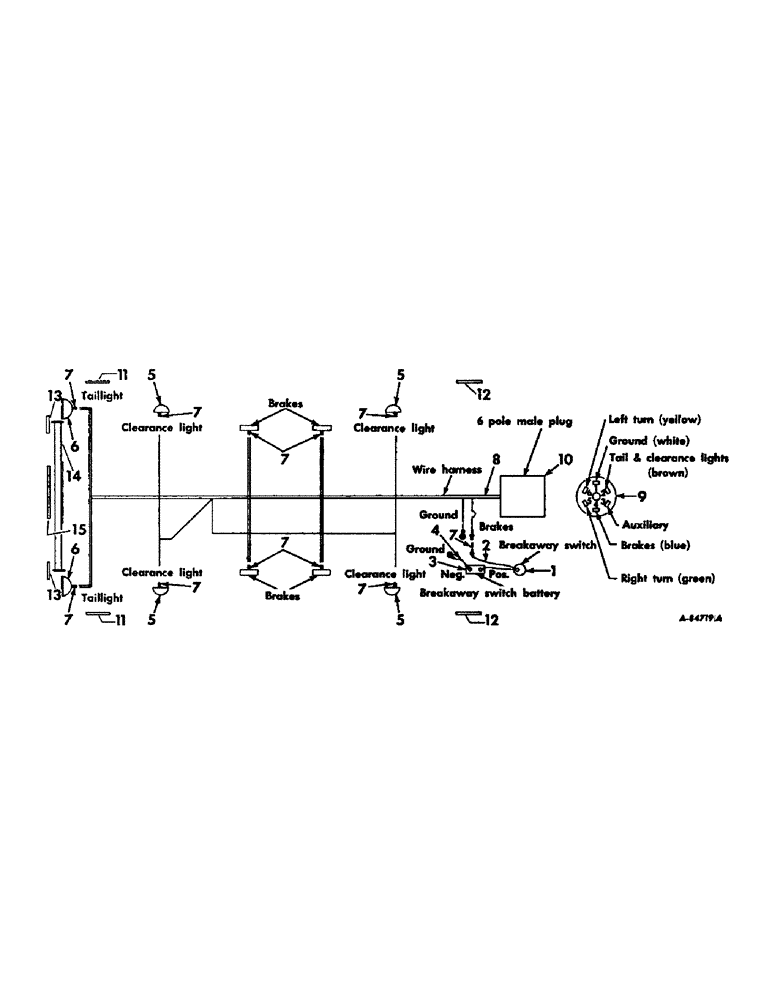

Запчасти Case IH VARIOUS (B-123) - WIRING DIAGRAM, FOR TRAILERS W/ELECTRIC BRAKES, 1965 AND SINCE

1

960095R91

SWITCH, breakaway

1шт.

BOLT, 1/4 x 3/4 mach

1шт.

NUT, 1/4

1шт.

WASHER, 1/4 lock

1шт.

2

962253R91

WIRE, switch jumper

1шт.

3

959302R91

BATTERY, breakaway switch, 12 volt

1шт.

4

950105R12

WIRE, ground

1шт.

5

962067R92

LIGHTS, red clearance

2шт.

5

962068R92

LIGHTS, amber clearance

2шт.

BOLT, 1/4 x 1 mach

8шт.

NUT, 1/4

8шт.

WASHER, 5/16 x 3/4 x 16 ga

8шт.

WASHER, 1/4 lock

1шт.

6

962350R91

TAILLIGHT

2шт.

NUT, 1/4

4шт.

WASHER, 1/4 lock

4шт.

7

377630C1

CONNECTOR, ELEC

CONNECTOR, wire

20шт.

8

962013R96

HARNESS, wiring

1шт.

9

962106R91

SOCKET, female

1шт.

10

960174R91

SOCKET, male

1шт.

11

959337R1

REFLECTOR

red

2шт.

12

959338R1

REFLECTOR

amber

2шт.

13

964187R1

REFLECTOR, red

2шт.

14

959336R1

BRACKET, light

1шт.

15

959339R1

LIGHT BAR, identification

1шт.

SCREW, no. 10-24 x 1/2 self tapping

2шт.

WASHER, 3/16 x 7/16 x 20 ga

2шт.

964245R1

LOOM, wiring, on wire ends

1шт.

957648R1

LOOM, wiring, on wire ends

1шт.

117958

GROMMET,1/4" ID x 5/8" x .188"

wire

2шт.

962291R1

CLIP, brake wire

4шт.

63402H

CLIP, wire

22шт.
