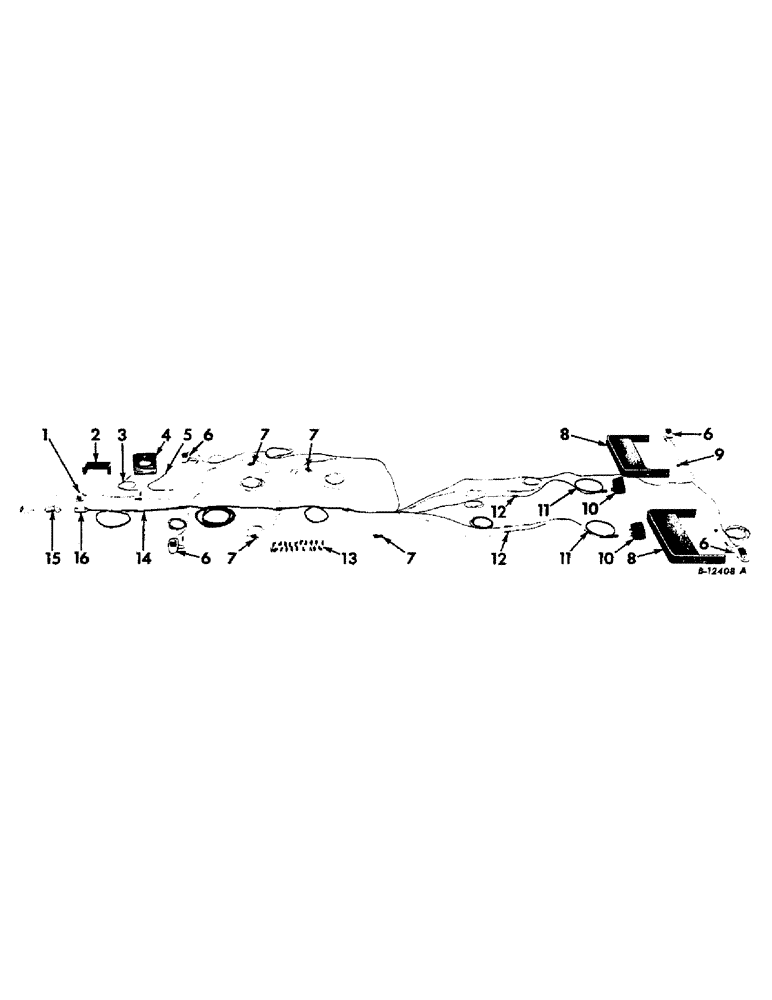

Запчасти Case IH VARIOUS (B-122) - ELECTRIC EQUIPMENT ATTACHMENT, FOR TRAILERS W/ELECTRIC BRAKES 1960 - 1965

1

960095R91

SWITCH, breakaway

1шт.

BOLT, 1/4 x 3/4

1шт.

NUT, 1/4

1шт.

WASHER, 1/4 lock

1шт.

2

960080R1

BRACKET, battery

1шт.

BOLT, 1/4 x 3/4 mach

2шт.

NUT, 1/4

2шт.

WASHER, 1/4 lock

2шт.

3

962253R91

WIRE, switch jumper

1шт.

4

959302R91

BATTERY, breakaway switch, 12 volt

1шт.

5

960105R12

WIRE, ground

1шт.

6

962067R92

LIGHTS, clearance, red

2шт.

6

962068R92

LIGHTS, clearance, amber

2шт.

BOLT, 1/4 x 1 mach

8шт.

NUT, 1/4

8шт.

WASHER, 5/16 x 3/4 x 16 ga

8шт.

WASHER, 1/4 lock

1шт.

7

962291R1

CLIP, brake wire

4шт.

8

962090R92

BRACKET, light and license

2шт.

BOLT, 1/2 x 1-1/2 mach

8шт.

NUT, 1/2

8шт.

WASHER, 1/2 lock

8шт.

9

117958

GROMMET,1/4" ID x 5/8" x .188"

6шт.

10

962350R91

TAILLIGHT, Consists of:

1шт.

964586R1

LENS

1шт.

964587R1

GASKET

1шт.

964588R1

SNAP RING

1шт.

964589R1

LICENSE WINDOW

1шт.

964590R1

WIRING PIGTAIL

1шт.

NUT, 1/4

4шт.

WASHER, 1/4 lock

4шт.

11

185910R91

CABLE

2шт.

12

377630C1

CONNECTOR, ELEC

CONNECTOR, wire

18шт.

13

63402H

CLIP, wire

20шт.

14

962013R96

HARNESS, wiring

1шт.

15

962106R91

SOCKET, female

1шт.

16

960174R91

SOCKET, male

1шт.

962349R91

REFLECTOR

2шт.

SCREW, 10-24 x 3/4 rd-hd mach

2шт.

NUT, 10-24

2шт.

964245R1

LOOM, wire

1шт.
