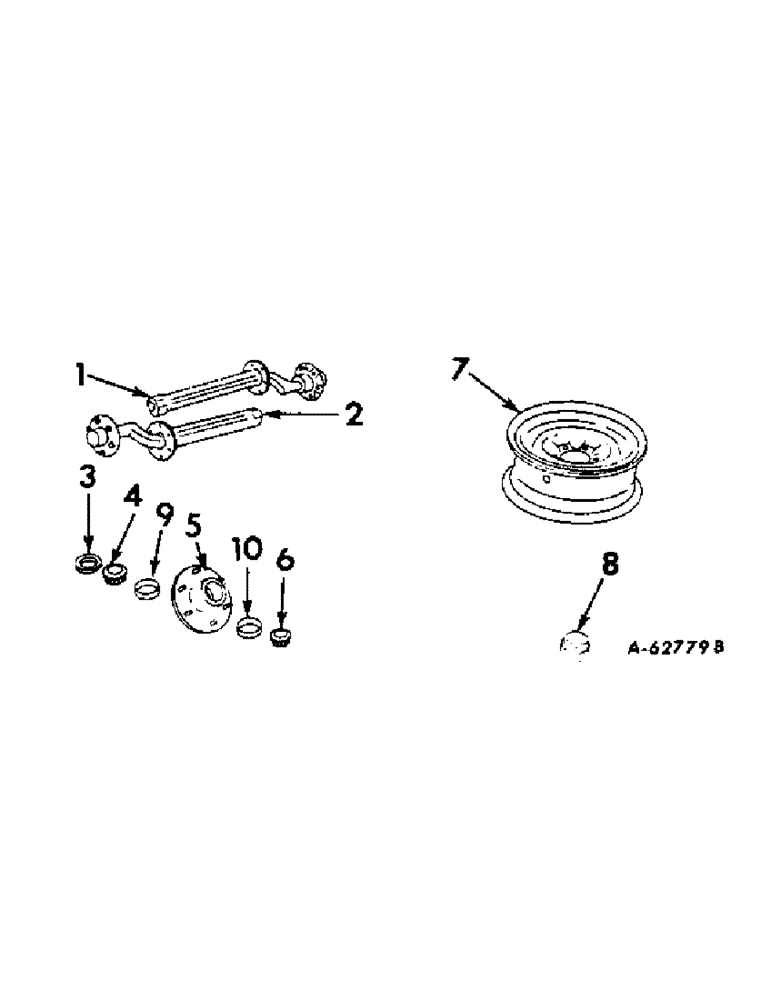

Запчасти Case IH VARIOUS (B-120) - DISC WHEELS AND AXLE, WITHOUT BRAKES, REGULAR EQUIPMENT 1960 TO 1965

1

964047R91

AXLE W/O BRAKE FLANGE LH, stub

2шт.

2

964048R91

AXLE W/O BRAKE FLANGE RH, stub

2шт.

BOLT, 1/2 x 1-1/2 mach, 6 per axle

1шт.

NUT, 1/2, 6 per axle

1шт.

WASHER, 1/2 lock, 6 per axle

1шт.

3

959272R91

SEAL

4шт.

4

130504H

ROLLER BEARING,42.887 mm ID x 25.48 mm

CONE, inner bearing

4шт.

5

959278R91

HUB ASSEMBLY, Consists of:

1шт.

959279R1

HUB

1шт.

651817R1

BEARING CUP

CUP, outer brg

1шт.

130503H

BEARING CUP

CUP, inner brg

1шт.

959280R1

STUD

6шт.

6

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, outer bearing

4шт.

7

960417R92

WHEEL, 15 in., optional, Consists of:

4шт.

See exploded view in list on 95 and 130 trailers.

1шт.

962391R1

RIM

1шт.

962392R1

LOCKING RING

1шт.

957620R1

NUT, wheel, For 15 in. wheel

6шт.

7

959266R91

WHEEL ASSY, 14.5 x 6.00

4шт.

959271R1

NUT

wheel, For 14.5 wheel

24шт.

NUT, in slt NF

4шт.

PIN, 3/16 x 1-3/4 cotter

4шт.

WASHER, 1 in.

4шт.

8

960418R2

CPA, grease, 1960 to 1964, threaded

4шт.

9

130503H

BEARING CUP

CUP, inner brg

1шт.

10

651817R1

BEARING CUP

CUP, outer brg

1шт.

962052R1

CAP, hub, 8.00 X 14.5 wheel

4шт.

960440R1

CAP, hub, 15 in. wheel

1шт.

251H

GREASE, wheel brg, 1/4 lb per wheel

1шт.
