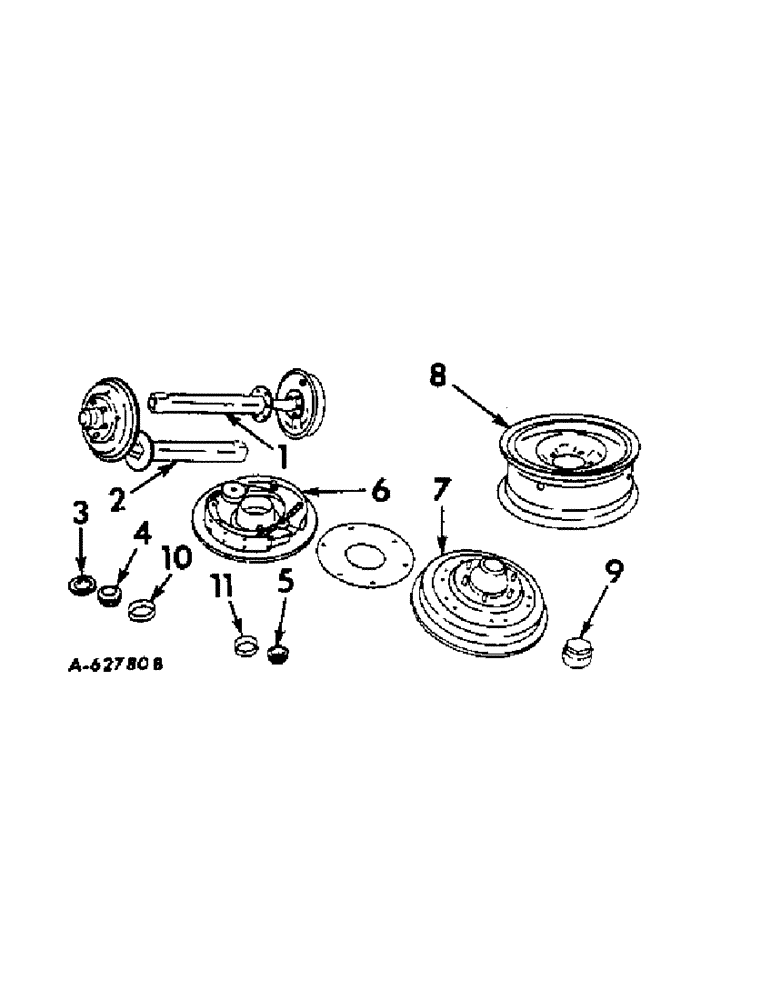

Запчасти Case IH VARIOUS (B-120[1]) - DISK WHEELS AND AXLES, FOR ELECTRIC BRAKES IN LIEU OF REGULAR WHEELS AND AXLES 1960 TO 1965

1

964045R91

AXLE W/FLANGE LH, stub

1шт.

2

964046R91

AXLE W/FLANGE RH, stub

1шт.

BOLT, 1/2 x 1-1/2 mach, 6 per axle

1шт.

NUT, 1/2, 6 per axle

1шт.

WASHER, 1/2 lock, 6 per axle

1шт.

3

959272R91

SEAL

2шт.

4

130504H

ROLLER BEARING,42.887 mm ID x 25.48 mm

CONE, inner bearing

2шт.

5

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, outer bearing

2шт.

6

959303R91

BRAKE, LH

1шт.

6

959304R91

BRAKE, RH

1шт.

NUT, 3/8NF cd-pltd

10шт.

WASHER, 3/8 lock

10шт.

WASHER, 1/4 lock

10шт.

7

959277R91

HUB ASSEMBLY, Consists of:

1шт.

959279R1

HUB

1шт.

651817R1

BEARING CUP

CUP, outer brg

1шт.

130503H

BEARING CUP

CUP, inner brg

1шт.

962086R1

PLATE, armature

1шт.

962096R1

DRUM

1шт.

8

959266R91

WHEEL ASSY, 14.5 X 6.00

4шт.

959271R1

NUT

wheel, For 14.5 wheel

24шт.

NUT, 1 in. slt NF

4шт.

PIN, 3/16 x 1-3/4 cotter

4шт.

WASHER, 1 in.

4шт.

8

960417R92

WHEEL, 15 in., optional, Consists of:

4шт.

See exploded view in list on 95 and 130 trailers.

1шт.

962391R1

RIM

1шт.

962392R1

LOCKING RING

1шт.

957620R1

NUT, wheel, For 15 in. wheel

6шт.

9

960418R2

CAP, grease, 1960 to 1964, threaded

4шт.

10

130503H

BEARING CUP

CUP, inner brg

1шт.

11

651817R1

BEARING CUP

CUP, outer brg

1шт.

251H

GREASE, wheel brg, 1/4 lb per wheel

1шт.
