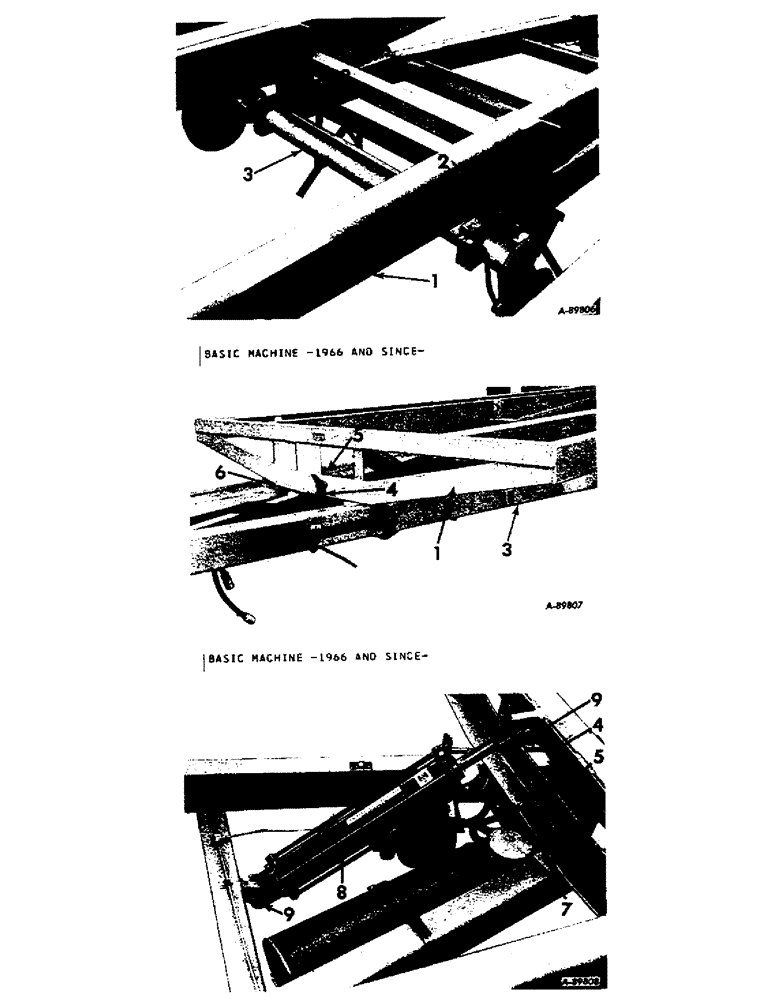

Запчасти Case IH VARIOUS (B-119) - BASIC MACHINE, 1966 AND SINCE

1

951967R2

BED, tilt

1шт.

2

960479R1

PIN, bed pivot

2шт.

PIN, 5/16 x 2-1/4 cotter

4шт.

3

951971R1

FRAME, carrier

1шт.

962146R1

BOLT, 5/8 x 9/16 cone-faced mach, axle tube

8шт.

4

959397R1

LATCH, bed

1шт.

F18422

AXLE PIN

PIN, latch

1шт.

PIN, 1/4 x 1-1/4 cotter

1шт.

5

591107R1

COTTER PIN

quick attachable

1шт.

6

959394R1

CAM, latch

1шт.

PIN, 7/32 x 1-1/4 roll

1шт.

7

119057H

SPRING, latch

1шт.

8

962344R91

CYLINDER, 3-1/2 x 16 in. hydraulic, See TM-4A parts catalog for components

1шт.

9

958200R92

PIN, cylinder mounting

2шт.

PIN, 1/4 x 2 cotter

2шт.

962019R2

PLATE, board end, Not shown, See ref. 15 on basic machine, Serial Range: 1960-1966

1шт.
