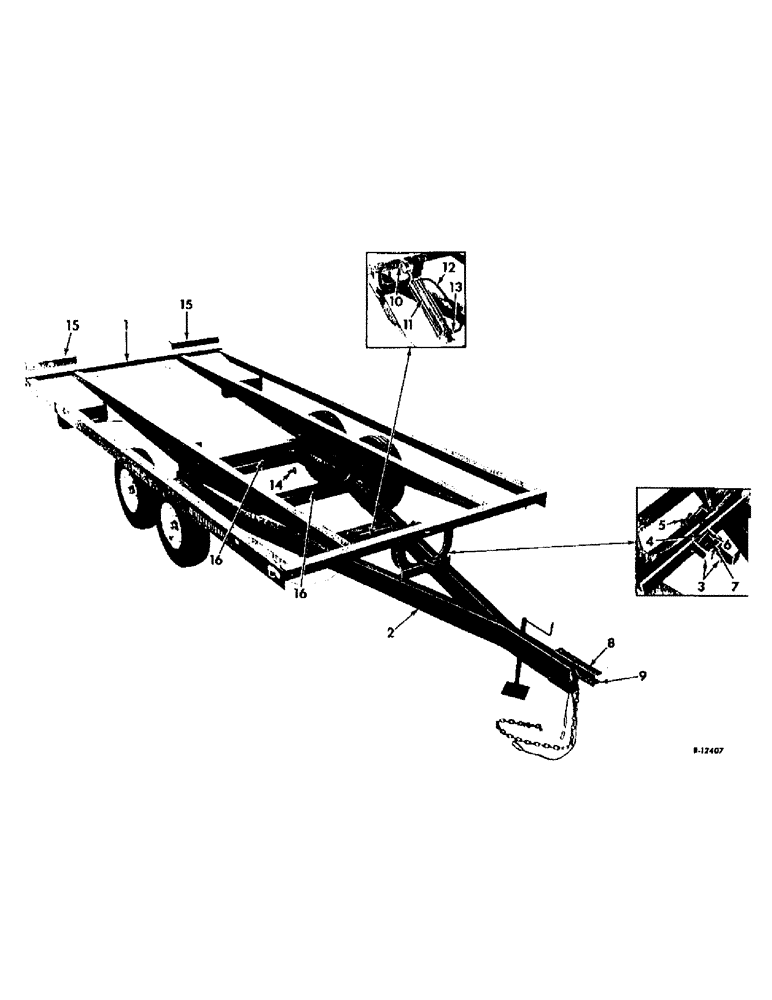

Запчасти Case IH VARIOUS (B-117) - BASIC MACHINE, 1960 TO 1966

1

960475R93

BED, tilt

1шт.

SCREW, 5/8 x 1-3/4 cap

1шт.

NUT, 5/

1шт.

WASHER, 5/8 lock

1шт.

WASHER, 5/8

1шт.

2

960476R93

FRAME, carrier

1шт.

3

962081R92

LATCH ASSY

1шт.

591107R91

PIN, quick attachable cotter

1шт.

4

576484R1

LOCK PIN,3/16" x 1 3/4", Slotted

Pin, 3/16" x 1 3/4", Slotted

1шт.

5

962069R1

LATCH, stop

1шт.

6

962087R1

WASHER, spring

1шт.

7

962094R1

SPRING, latch

1шт.

PIN, 1/8 x 1 cotter

1шт.

WASHER, 1/2 SAE flat

1шт.

8

960387R1

PLATE, clevis hitch

1шт.

9

960388R1

STRAP, hammer

1шт.

SCREW, 5/8 x 2-3/4 cap

3шт.

NUT, 5/8

3шт.

WASHER, 5/8 lock

3шт.

10

958200R92

PIN, hydraulic cylinder

2шт.

PIN, 1/4 x 2 cotter

2шт.

11

962344R91

CYLINDER, hydraulic, 3-1/2 x 16, 1964 and since

1шт.

11

959672R92

CYLINDER, hydraulic, 3-1/2 x 16, 1960 to 1964, Refer to TM-4A parts catalog for listing of cylinder components

1шт.

12

955494R91

HOSE ASSY.

HOSE ASSY, hydraulic, 1/2 x 30 in., Serial Range: 1960-1964

1шт.

13

955515R91

UNION ASSY, restricting, Serial Range: 1960-1964

1шт.

14

960479R1

PIN, bed pivot

2шт.

PIN, 5/16 x 2-1/4 cotter

4шт.

15

962019R2

PLATE, board end

2шт.

16

962146R1

BOLT, 5/8 x 9/16 mach

8шт.
