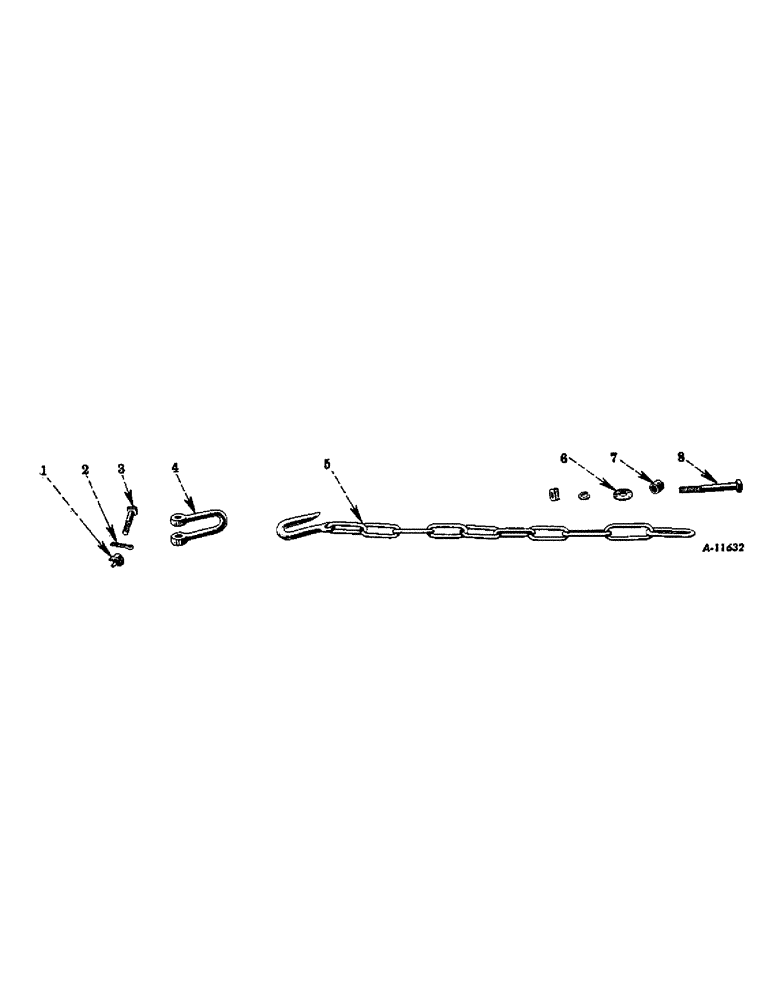

Запчасти Case IH VARIOUS (A-15) - STAY CHAINS, ZMA499, SPECIAL, BUILT 1940 TO 1953

ZMA499

STAY CHAIN, machine attachment

1шт.

1

M151M

NUT, 7/16-14NC horned

2шт.

2

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

3

D3078

BOLT, 7/16-14NC x 2-3/4 dld mach, in, Serial Range: singletree-doubletree

2шт.

M151M

NUT, 7/16-14NC horned

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

4

16487W

CLEVIS, stay chain

2шт.

5

16490W

CHAIN, stay

2шт.

6

Q262

WASHER

9/16 ID x 1-1/2 OD x 12 ga, plain

3шт.

7

16729W

SPACER, stay chain bolt

1шт.

8

15236R11

BOLT

W/NUT, 1/2-13NC x 4-1/2 hex-hd, Thru steel or wood tongue

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

Q262

WASHER

9/16 ID x 1-1/2 OD x 12 ga, plain

3шт.
