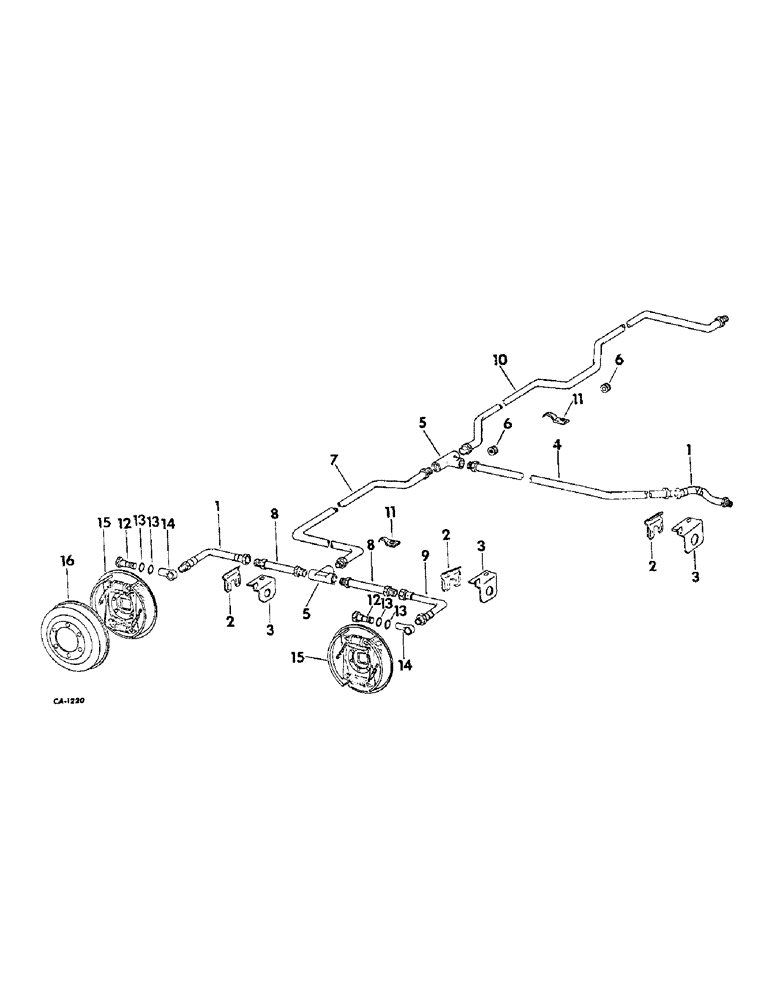

Запчасти Case IH VARIOUS (B-113) - TUBES, FITTINGS, BRAKES & DRUMS, FOR 95 TRAILER W/SURGE BRAKES BUILT 1970 AND SINCE

1

964556R1

HOSE, 13 in. hyd flex

3шт.

2

964557R1

BRACKET

5шт.

3

964561R1

CLIP

5шт.

4

964607R1

TUBE, 101 in. hyd assy

1шт.

5

127927

TEE,7/16"-24, Inv Flare, Fem, Brass

tube

3шт.

6

117958

GROMMET,1/4" ID x 5/8" x .188"

2шт.

7

964605R1

TUBE, 39 in. hyd assy

1шт.

8

964604R1

TUBE, 2 in. hyd assy

4шт.

9

964568R1

HOSE, 19 in. hyd flex

2шт.

10

964606R1

TUBE, 78 in. hyd assy

1шт.

11

191754

CLAMP, open

3шт.

145373

SCREW,Drive, U, Rnd Hd, #6 x 1/4"

#6 rd-hd drive

3шт.

12

964629R1

BOLT

4шт.

13

964631R1

GASKET

8шт.

14

964630R1

FITTING

4шт.

15

964569R91

BRAKE, LH

2шт.

15

964570R91

BRAKE, RH

2шт.

181364

BOLT,Hex, 3/8" - 24 x 1", Gr 5

SCREW, 3/8 x 1 cap

10шт.

120639

NUT, 3/8

10шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

10шт.

16

964608R1

DRUM

4шт.

964609R91

TUBE & FITTING KIT COMPLETE, Ref. 1 thru 14

1шт.

964628R91

HUB & DRUM, Consists of 964608R1 drum and 959278R91 hub w/caps and studs

1шт.
