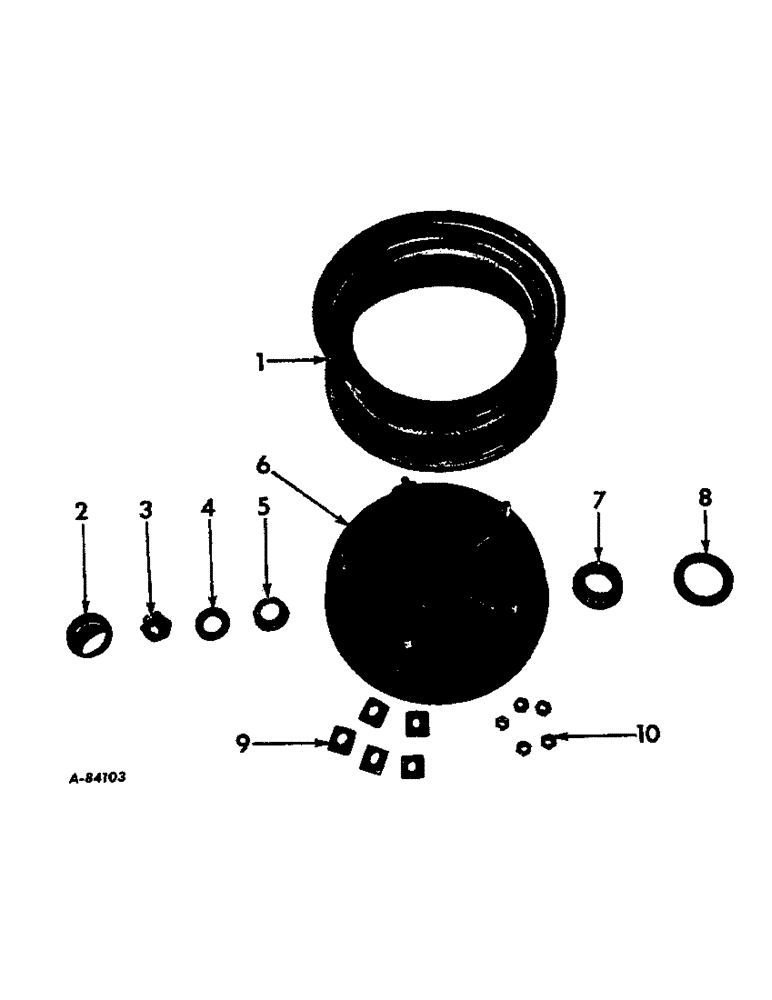

Запчасти Case IH VARIOUS (B-112) - SPOKE WHEELS, WITH BRAKES, 1965 AND SINCE

1

957565R1

RIM

1шт.

3

NUT, 1 in. NF slotted

1шт.

PIN, 3/16 x 1-3/4 cotter

1шт.

4

WASHER, 1-1/16 x 2 x 10 ga

1шт.

5

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, outer brg

1шт.

6

957563R91

HUB ASSY, Consists of:

1шт.

957567R1

HUB

1шт.

957568R1

BOLT

5шт.

651817R1

BEARING CUP

CUP, outer brg

1шт.

130503H

BEARING CUP

CUP, inner brg

1шт.

962086R1

ARMATURE PLATE

1шт.

957761R1

DRUM

1шт.

7

130504H

ROLLER BEARING,42.887 mm ID x 25.48 mm

CONE, inner brg

1шт.

8

959272R91

SEAL, grease

1шт.

10

956115R1

NUT

1/2 NF c-z

5шт.

959303R91

BRAKE, LH

1шт.

959304R91

BRAKE, RH

1шт.

46894H

WIRE CONNECTOR,14 - 16 SAE

TERMINAL, butt

2шт.

NUT, 3/8NF cd-pltd

5шт.

WASHER, 3/8 cd-pltd lock

5шт.

962026R1

TIRE, tubeless, 8.00 X 14.5 in., 12 ply nylon

1шт.

962027R1

VALVE, TR-416 rim

1шт.

251H

GREASE, wheel brg, 1/4 lb per wheel

1шт.
