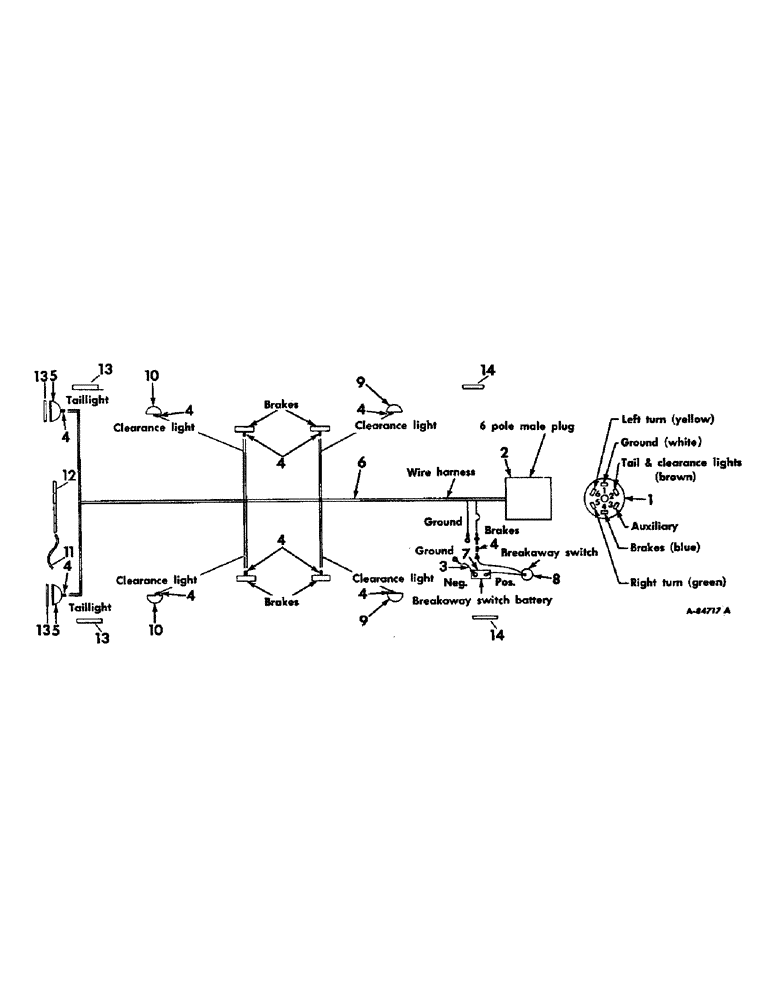

Запчасти Case IH VARIOUS (B-105) - WIRING, 1965 AND SINCE, FOR TRAILERS WITH ELECTRICAL BRAKES

1

962106R91

SOCKET, female

1шт.

2

960174R91

SOCKET, male, Service part only

1шт.

3

960105R12

WIRE, ground

1шт.

4

377630C1

CONNECTOR, ELEC

CONNECTOR, wire, 19 on 95, 23 on 130

1шт.

5

962350R91

TAILLIGHT, Consists of:

2шт.

964586R1

LENS

1шт.

964587R1

GASKET

1шт.

964588R1

SNAP RING

1шт.

964589R1

LICENSE WINDOW

1шт.

964590R1

WIRING PIGTAIL

1шт.

6

956516R94

WIRING, electrical, For 95

1шт.

6

959444R92

WIRING, electrical, For 130

1шт.

7

959302R91

BATTERY, breakway switch, 12 volt

1шт.

8

960095R91

SWITCH ASSEMBLY, breakway

1шт.

9

959371R91

LIGHT, amber clearance

2шт.

10

959372R91

LIGHT, red clearance

2шт.

11

964186R3

LOOM, wiring, 95 trailer

1шт.

11

964185R2

LOOM, wiring, 130 trailer

1шт.

12

959339R1

LIGHT BAR, identification

1шт.

SCREW, no. 10-24 x 5/8 mach

2шт.

NUT, no. 10-24

2шт.

WASHER, no. 10-24 lock

2шт.

13

959337R1

REFLECTOR

red

4шт.

14

959338R1

REFLECTOR

amber

2шт.

63402H

CLIP, wire, 10 on 95, 2 on 130

1шт.

962291R1

CLIP, brake wire, 16 on 95, 8 on 130

1шт.

140581

CLIP

CLAMP, closed, 5 on 95, 25 on 130

1шт.

BOLT, 3/8 x 1 crg, 4 on 95, 21 on 130

1шт.

NUT, 3/8, 1 per bolt

1шт.

WASHER, 3/8 lock, 1 per bolt

1шт.

BOLT, 1/4 x 5/8 crg

1шт.

NUT, 1/4

1шт.

WASHER, 1/4 lock

1шт.
