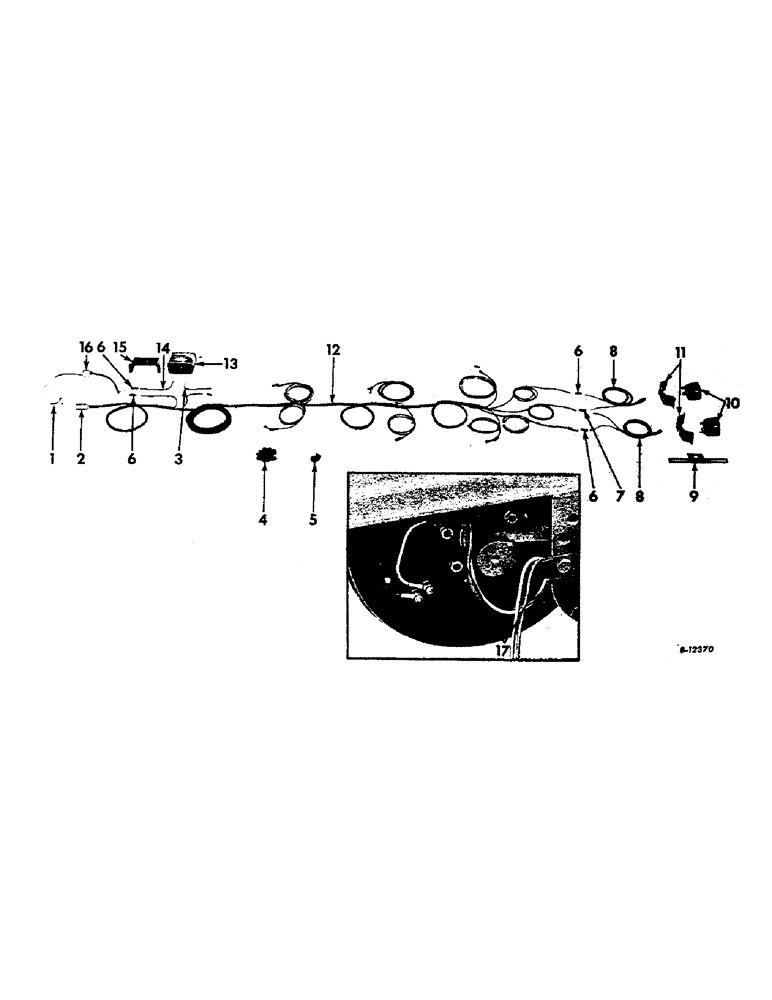

Запчасти Case IH VARIOUS (B-103) - WIRING, 1960 TO 1965

1

962106R91

SOCKET, female

1шт.

2

960174R91

SOCKET, male, Service part only

1шт.

3

960105R12

WIRE, ground

1шт.

4

140581

CLIP

CLAMP, closed, 4 on 95, 24 on 130

1шт.

BOLT, 3/8 x 1 crg

1шт.

NUT, 3/8

1шт.

WASHER, 3/8 lock

1шт.

5

63402H

CLIP, wire, 10 on 95, 6 on 130

1шт.

6

377630C1

CONNECTOR, ELEC

CONNECTOR, wire, 18 on 95, 22 on 130

1шт.

7

63404H

COUPLER

1шт.

8

185910R91

CABLE

1шт.

9

962120R92

BRACKET, license

1шт.

10

962350R91

TAILLIGHT, Consists of:

2шт.

964586R1

LENS

1шт.

964587R1

GASKET

1шт.

964588R1

SNAP RING

1шт.

964589R1

LICENSE WINDOW

1шт.

964590R1

WIRING PIGTAIL

1шт.

11

960499R2

BRACKET, tail light

2шт.

BOLT, 1/4 x 5/8 crg

8шт.

NUT, 1/4

8шт.

WASHER, 1/4 lock

8шт.

12

960498R92

WIRING, electrical, For 95, Serial Range: 1960-1963

1шт.

12

956516R93

WIRING, electrical, For 95, Serial Range: 1963-1965

1шт.

12

959444R91

WIRING, electrical, For 130

1шт.

13

959302R91

BATTERY, breakway switch, 12 volt

1шт.

14

960426R93

WIRE, switch jumper

1шт.

15

960080R1

BRACKET, battery

1шт.

BOLT, 1/4 x 5/8 mach

2шт.

NUT, 1/4

2шт.

WASHER, 1/4 lock

2шт.

16

960095R91

SWITCH ASSY, breakway

1шт.

17

962291R1

CLIP, brake wire, 16 on 95, 20 on 130

1шт.

962349R91

REFLECTOR

2шт.

RIVET, 1/4 x 3/8 truss-hd

1шт.

962186R1

LOOM, wire, 95 trailer

1шт.

962185R1

LOOM, wire, 130 trailer

1шт.

118833

CHAIN,5/8" ID x 1 11/64" x .156", Diag Cut

2шт.
