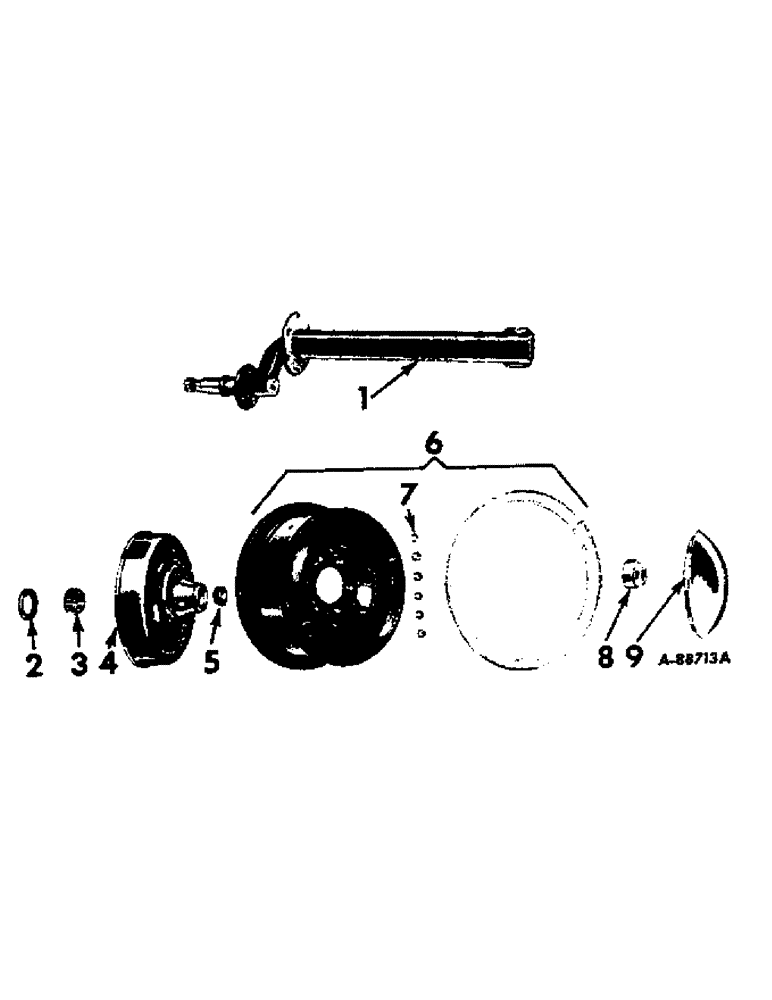

Запчасти Case IH VARIOUS (B-102) - DISC WHEEL AND AXLE, FOR 95 TRAILERS W/SURGE BRAKES, BUILT 1970 & SINCE

1

964045R91

STUB AXLE, LH, w/brake flange

1шт.

1

964046R91

STUB AXLE, RH, w/brake flange

1шт.

103348

WASHER,1" x 2" x .134"

WASSHER, 1-1/16 x 2 x 10 ga

1шт.

432-1232

COTTER PIN,3/16" OD x 2" L

Pin, Split (Cotter), 3/16" x 1 3/4"

1шт.

962146R1

BOLT, 5/8 x 9/16 cone-faced mach

2шт.

BOLT, 1/2 x 1-1/2 mach

6шт.

NUT, 1/2

6шт.

WASHER, 1/2 lock

6шт.

2

959272R91

SEAL, grease

1шт.

3

130504H

ROLLER BEARING,42.887 mm ID x 25.48 mm

CONE, inner brg

1шт.

4

959278R91

HUB, w/cups and studs, Consists of:

1шт.

959279R1

HUB

1шт.

130503H

BEARING CUP

CUP, inner brg

1шт.

651817R1

BEARING CUP

CUP, outer brg

1шт.

959280R1

STUD

6шт.

5

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, outer brg

1шт.

6

960417R92

WHEEL, complete, 15 X 5.5 in., Consists of:

4шт.

962391R1

RIM

1шт.

962392R1

LOCKING RING

1шт.

7

957620R1

NUT, wheel

6шт.

9

960440R1

CAP, hub

1шт.

960367R1

TIRE, tube type, 7.50 X 15 in., 8 ply nylon

1шт.

960378R91

TUBE W/TR-150 SIDE VALVE

1шт.

960263R1

FLAP

1шт.

251H

GREASE, wheel brg, 1/4 lb per wheel

1шт.
