Запчасти Case IH VARIOUS (B-101) - RELAY VALVE RELATED PARTS, BREATHER, HYDRAULIC BRAKE HOSE & CONNECTIONS

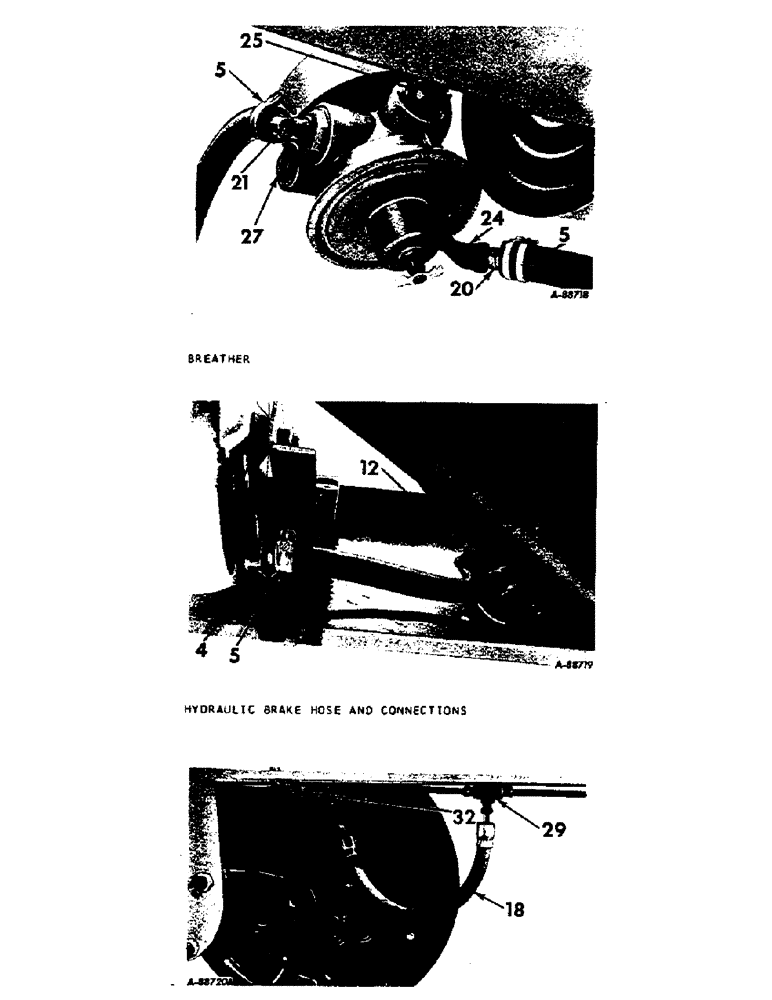

Схема запчастей Case IH VARIOUS - (B-101) - RELAY VALVE RELATED PARTS, BREATHER, HYDRAULIC BRAKE HOSE & CONNECTIONS

Артикул

Название

Примечание

Количество

1

951901R91

POWER UNIT

1шт.

BOLT, 7/16 x 1 mach

2шт.

NUT, 7/16

2шт.

NUT, 1/2

1шт.

WASHER, 1/2 lock

1шт.

2

951902R1

COUPLING, hose

1шт.

3

951903R1

COUPLING, hose

1шт.

4

30846H

NIPPLE, 3/8 in. pipe to 1/2 in. hose

2шт.

5

240369R91

CLAMP, hose

8шт.

6

103647

VALVE

COCK, drain

1шт.

7

964619R1

BRACKET, front mounting

1шт.

8

964620R1

BRACKET, rear mounting

1шт.

BOLT, 3/8 x 1 mach

4шт.

NUT, 3/8

4шт.

WASHER, 3/8 lock

4шт.

9

74285HB

TANK, vacuum

1шт.

10

964621R1

BAND, vacuum tank

1шт.

BOLT, 1/4 x 1-1/2 mach

1шт.

NUT, 1/4

1шт.

WASHER, 1/4 lock

1шт.

11

951905R1

VALVE, relay

1шт.

12

951906R1

BREATHER

1шт.

BOLT, 7/16 x 1 mach

1шт.

NUT, 7/16

1шт.

WASHER, 7/16 lock

1шт.

13

965615R1

TUBE, hydraulic, 12 in.

1шт.

14

964617R1

TUBE, hydraulic, 30 in, 2 on 95, 3 on 130

1шт.

15

964618R1

TUBE, hydraulic, 40 in, 1 on 95, 2 on 130

1шт.

16

951930R1

TUBE, hydraulic, 50 in, 1 on 130 only

1шт.

17

951912R1

TUBE, hydraulic, 60 in., 3 on 95, 2 on 130

1шт.

18

964191R1

HOSE, flex hydraulic, brake hose, 4 on 95, 6 on 130

1шт.

19

68406H

NIPPLE, 1/2 in. pipe to 1/2 in. hose

2шт.

21

30844H

ELBOW, 90 deg, 1/2 in. pipe to 1/2 in. hose

2шт.

22

NIPPLE, 1/2 in. x 3 in. pipe

1шт.

23

ELBOW, 3/8 x 90 deg street pipe

1шт.

24

ELBOW, 1/4 x 45 deg street pipe

1шт.

25

REDUCER, bushing type, 3/4 x 1/2 pipe

1шт.

26

REDUCER, bushing type, 1/2 to 1/4 pipe

1шт.

27

PLUG, 1/2 recessed head type

1шт.

28

ELBOW, 1/2 x 90 deg street pipe

1шт.

29

127927

TEE,7/16"-24, Inv Flare, Fem, Brass

female, 7/16-24 straight thd, tube fitting, 3 on 95, 5 on 130

1шт.

30

NLS

NO LONGER SERVICED

UNION, 7/16-24 straight thd, tube fitting (PN 137413)

2шт.

31

567118R1

ELBOW, union 7/16-24 straight thd, tube fitting

2шт.

32

140579

CLAMP, closed, hydraulic tubing to frame, 11 on 95, 1 on 130

1шт.

BOLT, 3/8 x 1 crg

1шт.

NUT, 3/8

1шт.

WASHER, 3/8 lock

1шт.

33

117958

GROMMET,1/4" ID x 5/8" x .188"

in trailer frame, 2 on 95 only

1шт.

951963R1

HOSE, vacuum, 6 ft., This length of hose and the pipe supplied with the power kit are cut to make the short lengths required

1шт.

951907R91

BRAKE, LH vacuum hyd, 2 on 95, 3 on 130

1шт.

951908R91

BRAKE, RH vacuum hyd, 2 on 95, 3 on 130

1шт.

951900R91

POWER KIT, vacuum, Consists of:

1шт.

BOLT, 3/8 x 1 mach, For mounting bracket

4шт.

BOLT, 7/16 x 1 mach, For power unit

2шт.

698567R1

BOLT, terminal

2шт.

Included in kit but not used in this application.

1шт.

240369R91

CLAMP, hose

4шт.

103647

VALVE

COCK, drain

1шт.

951902R1

COUPLING, hose

1шт.

951903R1

COUPLING, hose

1шт.

ELBOW, 3/8 pipe to 1/2 hose

2шт.

Included in kit but not used in this application.

1шт.

ELBOW, 1/2 x 45 deg street pipe

2шт.

Included in kit but not used in this application.

1шт.

951965R1

HOSE, vacuum, 8 ft long

1шт.

30846H

NIPPLE, 3/8 pipe to 1/2 hose

2шт.

NUT, 3/8, For mounting bracket

4шт.

NUT, 7/16, For power unit

2шт.

NUT, 1/2, For power unit

1шт.

951904R1

PLUG, coupling

2шт.

951901R91

POWER UNIT

1шт.

REDUCER, 1/4 x 3/8 pipe

1шт.

Included in kit but not used in this application.

1шт.

TEE, 3/8 pipe

1шт.

Included in kit but not used in this application.

1шт.

WASHER, 3/8 lock, For mounting bracket

4шт.

WASHER, 1/2 lock, For power unit

1шт.

Выбрано товаров: 77
