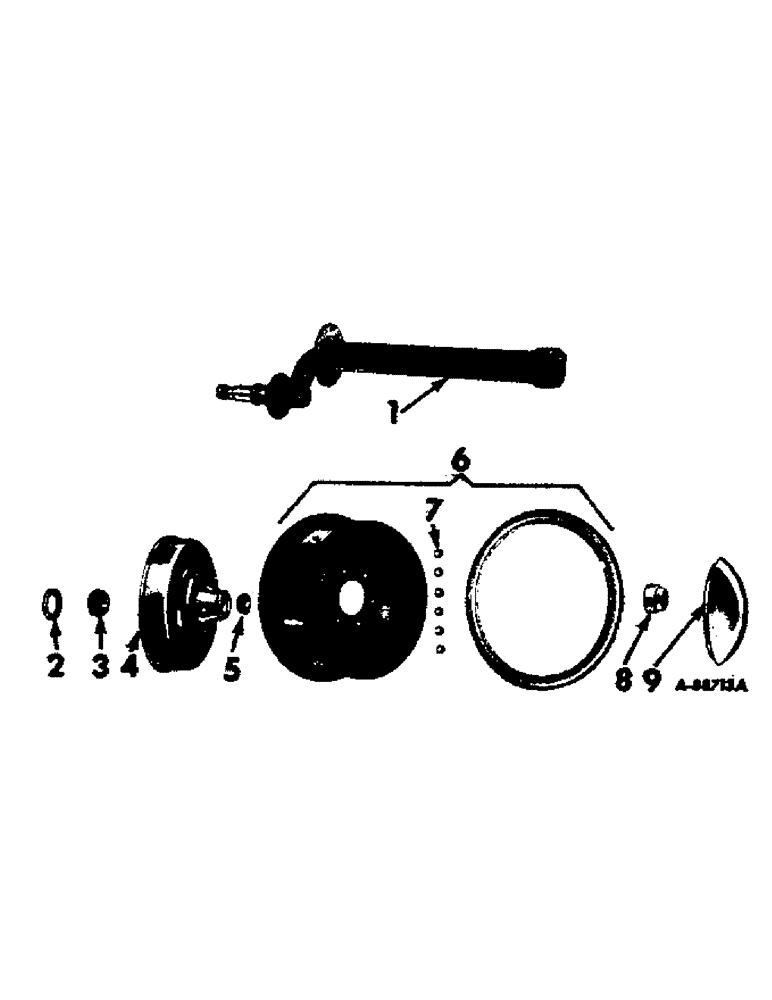

Запчасти Case IH VARIOUS (B-099) - DISC WHEEL AND AXLE

1

964045R91

STUB AXLE, LH, w/brake flange

1шт.

1

964046R91

STUB AXLE, RH, w/brake flange

1шт.

NUT, 1 in. NF slotted

1шт.

WASHER, 13/16 x 1-1/2 x 10 ga

1шт.

PIN, 3/16 x 1-3/4 cotter

1шт.

962146R1

BOLT, 5/8 x 9/16 cone-faced mach

2шт.

BOLT, 1/2 x 1-1/2 mach

6шт.

NUT, 1/2

6шт.

WASHER, 1/2 lock

6шт.

2

959272R91

SEAL, grease

1шт.

3

130504H

ROLLER BEARING,42.887 mm ID x 25.48 mm

CONE, inner brg

1шт.

4

949277R91

HUB AND SRUM, w/studs and cups, Consists of:

1шт.

If this hub is order to replace a hub with a threaded grease cap, order th unthreaded grease cap also.

1шт.

959279R1

HUB

1шт.

130503H

BEARING CUP

CUP, inner brg

1шт.

651817R1

BEARING CUP

CUP, outer brg

1шт.

962086R1

PLATE, armature

1шт.

962096R1

DRUM

1шт.

5

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, outer brg

1шт.

6

960417R92

WHEEL, complete, 15 X 5.5 in, 4 on 95, 6 on 130, Consists of:

1шт.

962391R1

RIM

1шт.

962392R1

LOCKING RING

1шт.

7

957620R1

NUT, wheel

6шт.

8

960418R2

CAP, grease, threaded

1шт.

9

960440R1

CAP, hub

1шт.

962503R91

BRAKE, LH, 6 volt, w/grease guards and mounting bolts

1шт.

962504R91

BRAKE, RH, 6 volt, w/grease guards and mounting bolts

1шт.

959303R91

BRAKE, LH, 12 volt, w/grease guards and mounting bolts

1шт.

959304R91

BRAKE, RH, 12 volt, w/grease guards and mounting bolts

1шт.

NUT, 3/8NF cd-pltd

5шт.

WASHER, 3/8 cd-pltd lock

5шт.

960367R1

TIRE, tube type, 7.50 X 15 in., 8 ply nylon

1шт.

960378R91

TIRE W/TR-150 SIDE VALVE

1шт.

960263R1

FLAP

1шт.

251H

GREASE, wheel brg, 1/4 lb per wheel

1шт.
