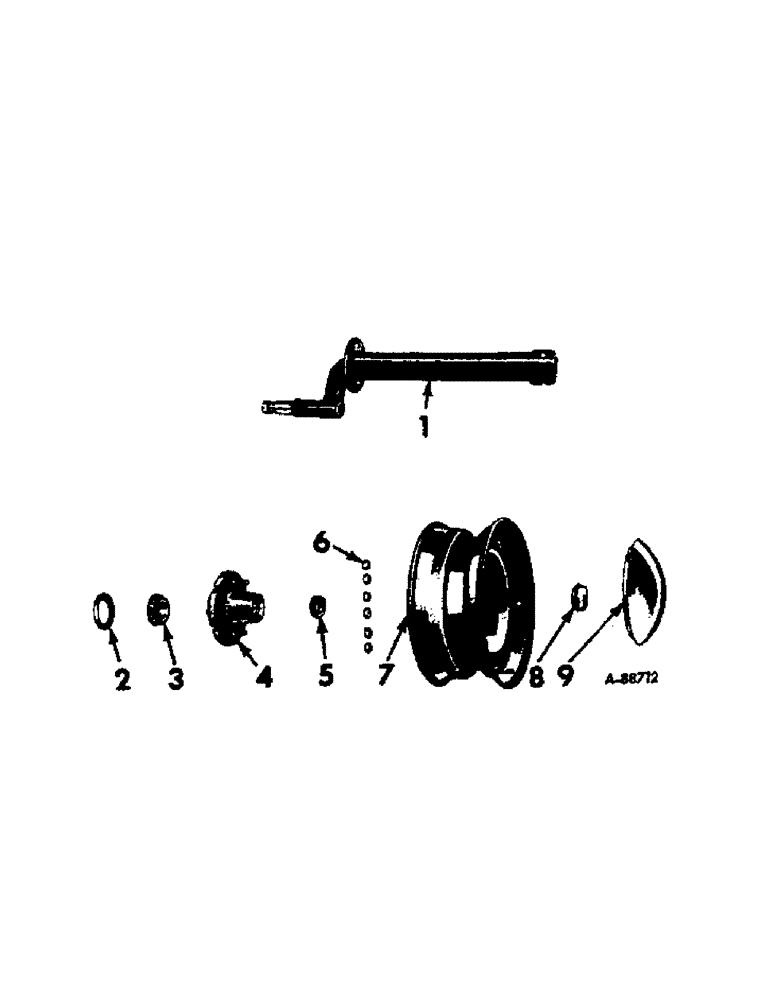

Запчасти Case IH VARIOUS (B-098) - DISC WHEEL AND AXLE

1

964047R91

STUB AXLE, LH, w/o brake flange

1шт.

1

964048R91

STUB AXLE, RH, w/o brake flange

1шт.

NUT, 1 in. NF slotted

1шт.

WASHER, 1-1/16 x 2-1/2 x 8 ga

1шт.

PIN, 3/16 x 1-3/4 cotter

1шт.

962146R1

BOLT, 5/8 x 9/16 cone-faced mach

2шт.

BOLT, 1/2 x 1-1/2 mach

6шт.

NUT, 1/2

6шт.

WASHER, 1/2 lock

6шт.

2

959272R91

SEAL, grease

1шт.

3

130504H

ROLLER BEARING,42.887 mm ID x 25.48 mm

CONE, inner brg

1шт.

4

959278R91

HUB W/STUDS AND CUPS, Consists of:

1шт.

If this hub is order to replace a hub with a threaded grease cap, order th unthreaded grease cap also.

1шт.

959279R1

HUB

1шт.

130503H

BEARING CUP

CUP, inner brg

1шт.

651817R1

BEARING CUP

CUP, outer brg

1шт.

959280R1

STUD

6шт.

5

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, outer brg

1шт.

6

959271R1

NUT

wheel

6шт.

7

959266R91

WHEEL, 14.5 X 6.00, 4 on 95, 6 on 130

1шт.

8

960418R2

CAP, greased, threaded, Serial Range: 1960-1964

1шт.

9

962052R1

CAP, hub

1шт.

251H

GREASE, wheel brg, 1/4 lb per wheel

1шт.

962026R1

TIRE, tubeless, 8.00 X 14.5 in. 12 ply nylon, 4 on 95, 6 on 130

1шт.

962027R1

VALVE, TR-416 rim

1шт.
