Запчасти Case IH VARIOUS (B-098[1]) - DISC AND WHEEL AXLE

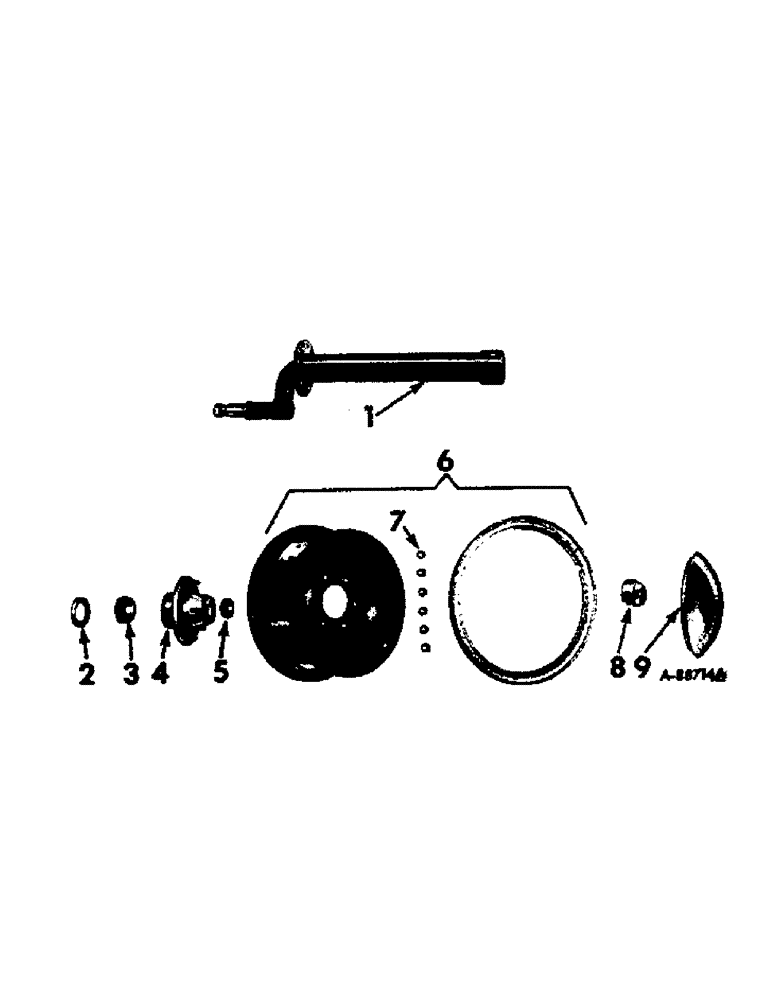

Схема запчастей Case IH VARIOUS - (B-098[1]) - DISC AND WHEEL AXLE

Артикул

Название

Примечание

Количество

1

964047R91

STUB AXLE, LH, w/o brake flange

1шт.

1

964048R91

STUB AXLE, RH, w/o brake flange

1шт.

NUT, 3/4 NF thick slotted

1шт.

WASHER, 13/16 x 1-1/2 x 10 ga

1шт.

PIN, 3/16 x 1-3/4 cotter

1шт.

962146R1

BOLT, 5/8 x 9/16 cone-faced mach

2шт.

BOLT, 1/2 x 1-1/2 mach

6шт.

NUT, 1/2

6шт.

WASHER, 1/2 lock

6шт.

2

959272R91

SEAL, grease

1шт.

3

130504H

ROLLER BEARING,42.887 mm ID x 25.48 mm

CONE, inner brg

1шт.

4

959278R91

HUB W/STUDS AND CUPS, Consists of:

1шт.

If this hub is order to replace a hub with a threaded grease cap, order th unthreaded grease cap also.

1шт.

959279R1

HUB

1шт.

130503H

BEARING CUP

CUP, inner brg

1шт.

651817R1

BEARING CUP

CUP, outer brg

1шт.

959280R1

STUD

6шт.

5

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, outer brg

1шт.

6

960417R92

WHEEL, complete, 15 X 5.5 in., 4 on 95, 6 on 130, Consists of:

1шт.

962391R1

RIM

1шт.

962392R1

LOCKING RING

1шт.

7

957620R1

NUT, wheel

6шт.

8

960418R2

CAP, grease, threaded

1шт.

9

960440R1

CAP, hub

1шт.

960367R1

TIRE, tube type 7.50 X 15 in. 8 ply nylon

1шт.

960378R91

TUBE W/TR-150 SIDE VALVE

1шт.

960263R1

FLAP

1шт.

251H

GREASE, wheel brg, 1/4 lb per wheel

1шт.

Выбрано товаров: 28
