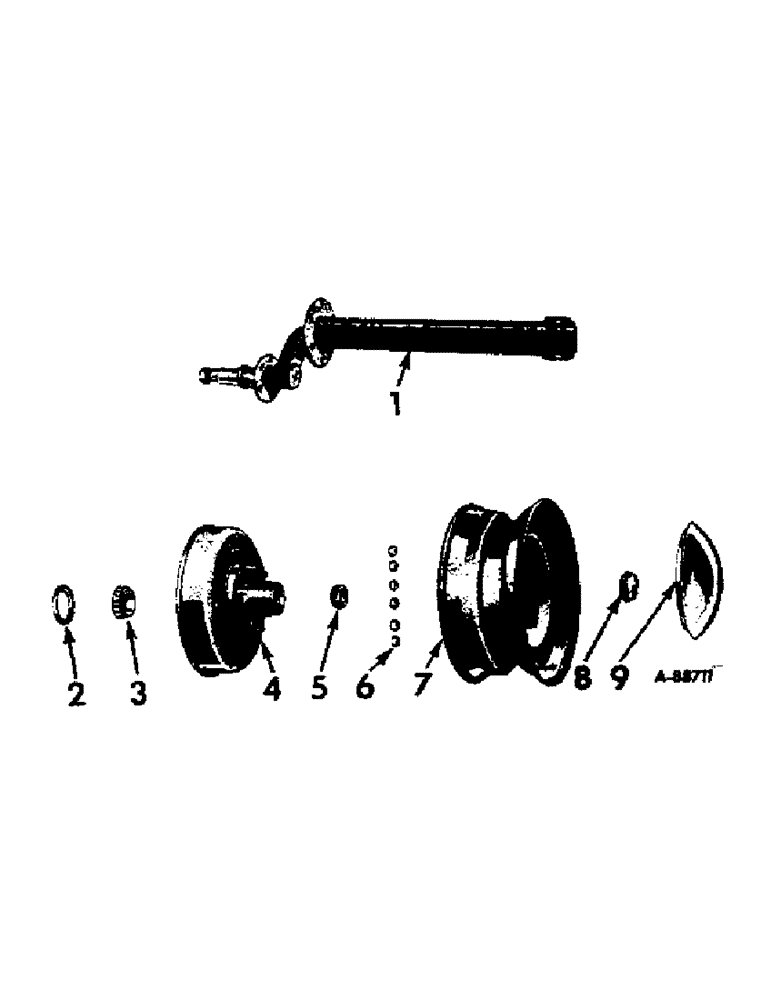

Запчасти Case IH VARIOUS (B-097) - DISC WHEEL AND AXLE, OPTIONAL EQUIPMENT

1

964045R91

STUB AXLE, LH, w/brake flange

1шт.

1

964046R91

STUB AXLE, RH, w/brake flange

1шт.

NUT, 1 in. NF slotted

1шт.

WASHER, 1-1/16 x 2-1/2 x 8 ga

1шт.

PIN, 3/16 x 1-3/4 cotter

1шт.

962146R1

BOLT, 5/8 x 9/16 cone-faced mach

2шт.

BOLT, 1/2 x 1-1/2 mach

6шт.

NUT, 1/2

6шт.

WASHER, 1/2 lock

6шт.

2

959272R91

SEAL, grease

1шт.

3

130504H

ROLLER BEARING,42.887 mm ID x 25.48 mm

CONE, inner brg

1шт.

4

959277R91

HUB AND DRUM, w/studs and cups, Consists of:

1шт.

If this hub is order to replace a hub with a threaded grease cap, order th unthreaded grease cap also.

1шт.

959279R1

HUB

1шт.

130503H

BEARING CUP

CUP, inner brg

1шт.

651817R1

BEARING CUP

CUP, outer brg

1шт.

962086R1

PLATE, armatube

1шт.

962096R1

DRUM

1шт.

5

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, outer brg

1шт.

6

959271R1

NUT

wheel

6шт.

7

959266R91

WHEEL, 14.5 X 6.00 in., 4 on 95, 6 on 130

1шт.

8

960418R2

CAP, grease, threaded, Serial Range: 1960-1964

1шт.

9

962052R1

CAP, hub

1шт.

962503R91

BRAKE, LH, 6 volt, w/grease guards and mounting bolts

1шт.

962504R91

BRAKE, RH, 6 volt, w/grease guards and mounting bolts

1шт.

959303R91

BRAKE, LH, 12 volt, w/grease guards and mounting bolts

1шт.

959304R91

BRAKE, RH, 12 volt, w/grease guards and mounting bolts

1шт.

NUT, 3/8NF cd-pltd

5шт.

WASHER, 3/8 cd-pltd lock

5шт.

962026R1

TIRE, tubeless 8.00 X 14.5 in. 12 ply nylon, 4 on 95, 6 on 130

1шт.

962027R1

VALVE, TR-416 rim

1шт.

251H

GREASE, wheel brg, 1/4 lb per wheel

1шт.

15 X 5.5 WHEELS FOR 7.50 X 15 IN. TUBE TYPE AUTOMOTIVE TIRES, optional equipment

1шт.

960417R92

WHEEL, complete, 15 x 5.5, 4 on 95, 6 on 130, optional equipment, Consists of:

1шт.

962391R1

RIM, optional equipment

1шт.

962392R1

LOCKING RING, optional equipment

1шт.

957620R1

NUT, wheel, optional equipment

6шт.
