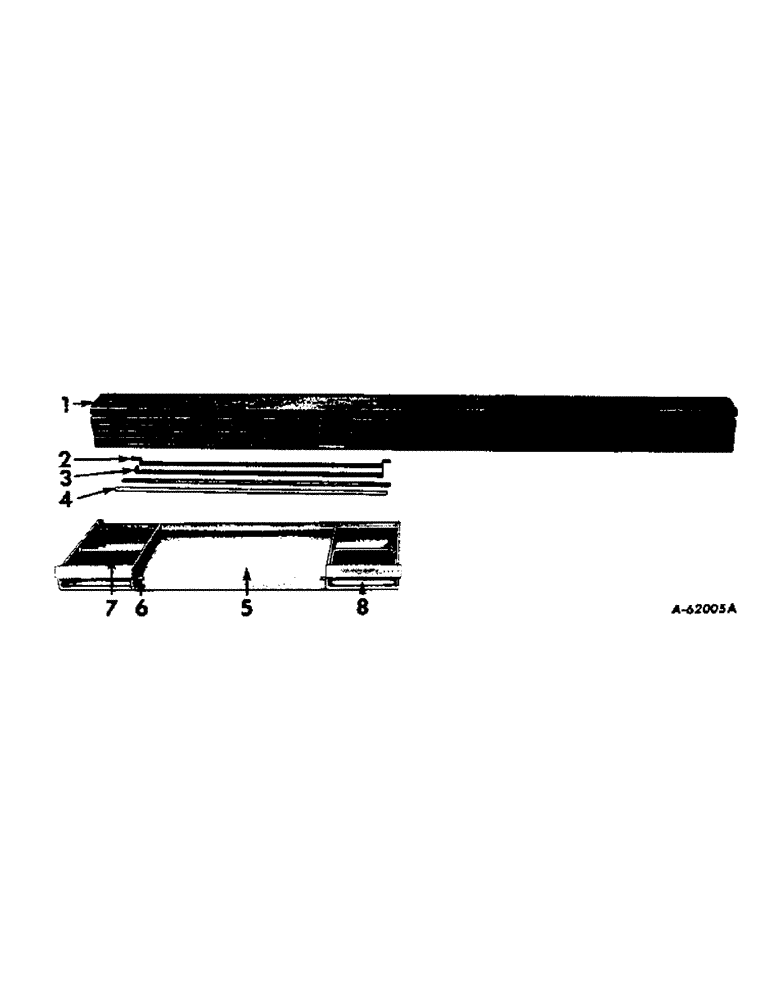

Запчасти Case IH VARIOUS (B-096) - FLOOR BOARDS AND RAMP ASSEMBLY

1

960171R1

FLOOR BOARD, wide, no. 130

4шт.

1

960172R1

FLOOR BOARD, narrow, no. 130

2шт.

1

960442R1

FLOOR BOARD, wide, no. 95

4шт.

1

960455R1

FLOOR BOARD, narrow, no. 95

2шт.

2

962169R1

RETAINER, floor board

1шт.

3

962170R1

STRAP, tie

2шт.

BOLT, 3/8 x 1-1/2 crg

2шт.

BOLT, 3/8 x 3 crg

10шт.

NUT, 3/8

12шт.

WASHER, 7/16 x 1 x 14 ga

12шт.

WASHER, 3/8 lock

12шт.

4

960173R1

RETAINER, rear

1шт.

BOLT, 3/8 x 3 crg

6шт.

NUT, 3/8

6шт.

WASHER, 3/8 lock

6шт.

5

962123R93

RAMP

1шт.

5

962242R91

RAMP, extended, special

1шт.

6

962131R1

PIN, ramp hinge

2шт.

7

962133R91

SUPPORT, ramp RH

1шт.

8

962132R91

SUPPORT, ramp LH

1шт.

960107R1

PIN, chain lock

2шт.

PIN, 3/16 x 1 cotter

1шт.
