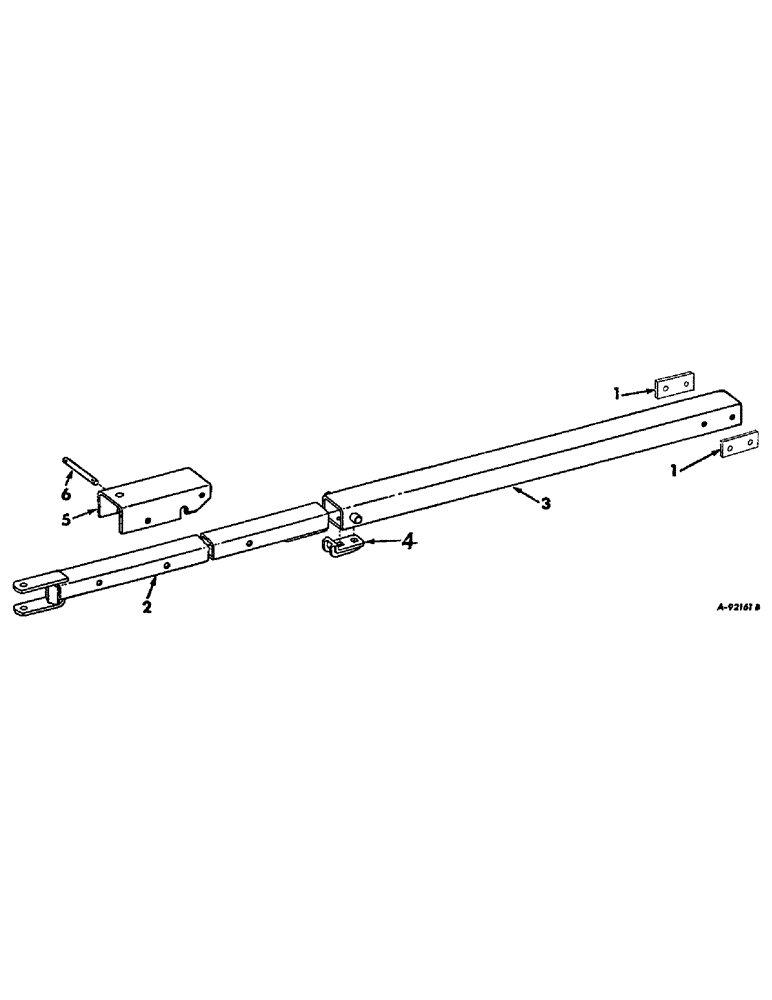

Запчасти Case IH VARIOUS (B-092) - TELESCOPING HITCH POLE ATTACHMENT

1

489796R1

BAR, spacer

2шт.

21695R1

BOLT,Hex, 5/8" - 11 x 5 3/4", Gr 5

SCREW, 5/8-11 x 5-3/4 znd hex-hd cap

2шт.

9413948

NUT,5/8"-11, GA

5/8-11 cdp hex. lock

2шт.

2

492350R1

HITCH ASSY

1шт.

3

492351R1

TUBE ASSY

1шт.

4

489807R3

STOP

1шт.

492028R1

BOLT, 3/8 x 1-5/16 c-z no. 3 plow

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

5

489808R1

LOCK ASSY

1шт.

540421R1

SPRING ASSY, lock

1шт.

520175R1

CLIP

PIN, quick attachable cot.

2шт.

6

489813R1

SHAFT, pivot

1шт.

2750752R2

NO. 70 TRAILER, right side, rear axle, centered under McCormick trademark

1шт.

2750221R1

IH TRADEMARK, centered left side, rear axle

1шт.

2750762R1

PRODUCT GRAPHIC

MCCORMICK, right side, rear axle placed high

1шт.
