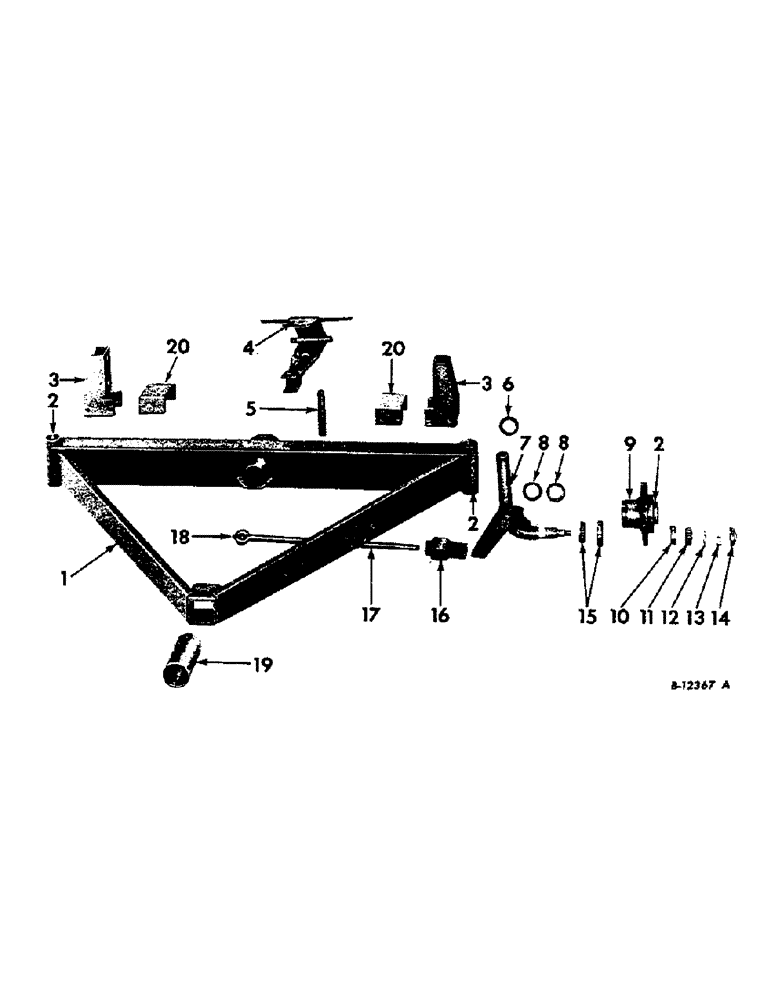

Запчасти Case IH VARIOUS (B-089) - FRONT FRAME, SPINDLES AND STEERING BRACKET

1

463675R91

FRAME W/4 BUSHINGS, front

1шт.

472065R1

SCREW, 1/2 x 3-1/4 c-z hex-hd cap

2шт.

BOLT, 1/2 x 3-1/2 c-z hex-hd mach

1шт.

457390R1

LOCK NUT,1/2"-13, GA

NUT, 1/2 c-z lock

3шт.

463678R1

BUSHING, front spindle

4шт.

2

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4 straight self-tapping lub

6шт.

3

459917R1

STAKE, bolster

1шт.

BOLT, 1/2 x 4 c-z hex-hd mach

2шт.

BOLT, 1/2 x 4-1/2 c-z hex-hd mach

2шт.

457390R1

LOCK NUT,1/2"-13, GA

NUT, 1/2 c-z

4шт.

4

463672R11

BRACKET ASSY, steering, 1960 to 1963, Order 478700R91 and 463671R2

1шт.

4

478700R91

BRACKET ASSY, steering, Serial Range: 1960-1963

1шт.

4

478701R91

BRACKET ASSY, steering, 1963 and since, Also order 8.6 in. long king pin, 463671R2 unless already so equipped

1шт.

PIN, 1/4 x 1-1/2 cot.

2шт.

557273R1

WASHER

1-1/32 x 2 x 11 ga

2шт.

Q3481

WASHER

1-1/32 x 1-1/2 x 16 ga

2шт.

5

463671R2

PIN, king

1шт.

PIN, 1/4 x 1-1/2 cotter

2шт.

Q3481

WASHER

1-1/32 x 1-1/2 x 16 ga

2шт.

6

Q3488

WASHER

1-25/32 x 2-1/2 x 11 ga

2шт.

7

463681R91

SPINDLE, front LH, Serial Range: 1960-1963

1шт.

7

463682R91

SPINDLE, front RH, Serial Range: 1960-1963

1шт.

7

474641R91

SPINDLE, front LH, 1963 and since

1шт.

7

474642R91

SPINDLE, front RH, 1963 and since

1шт.

PIN, 1/8 x 1-1/4 cotter

1шт.

441013R1

LOCK PIN,1/4" x 2 1/2", Slotted

Pin, 1/4" x 2 1/2", Slotted

1шт.

8

463684R1

WASHER, 1-21/32 x 2-1/2 x 11 ga thrust

4шт.

9

465493R1

HUB

wheel, 1961 AND SINCE

4шт.

9

663907R11

HUB

wheel, 1960 and 1961

4шт.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel hub

24шт.

10

371883R1

BEARING CUP

Outer

4шт.

11

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

Outer

4шт.

12

575813R1

WASHER

25/32 x 1-1/4 x11 ga

4шт.

13

69442D

NUT

3/4UNF slt jam

4шт.

14

663908R1

CAP

wheel hub

4шт.

15

459912R91

BEARING ASSY,1.3755" ID x 2.5635" OD x 0.74"

CONE W/SEAL AND CUP, inner bearing

4шт.

16

463639R1

CLEVIS, rod

2шт.

F18422

AXLE PIN

PIN, 3/4 x 2-1/4 dld-std-hd

2шт.

PIN, 1/4 x 1-1/4 cotter

2шт.

551658R1

WASHER

25/32 x 1-1/4 x 22 ga

6шт.

17

463674R1

ROD, steering

2шт.

218443

NUT

3/4 jam

2шт.

724775R1

HEADED PIN,3/4" x 3 1/4"

PIN, 3/4 x 3-1/4 dld-std-hd

1шт.

PIN, 1/4 x 1-1/8 cotter

1шт.

551178R1

WASHER

25/32 x 1-3/4 x 16 ga

4шт.

18

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4 straight self-tapping lub

2шт.

19

463656R1

COLLAR, reach

1шт.

BOLT, 1/2 x 3-1/2 c-z hex-hd mach

1шт.

457390R1

LOCK NUT,1/2"-13, GA

NUT, 1/2 c-z lock

1шт.

20

464679R1

SADDLE, axle, 1961 and since

2шт.

622192R91

WHEEL

W/RIM, disk, 15 X 5K

4шт.

463034R1

RIM

WHEEL W/RIM, 14 X 5K

4шт.

TIRE, passenger, 6.70 X 15, 7.00 X 16, 7.10 X 15, 7.50 X 16, 6 ply or rib implement 7.50 X 16, 6 ply

4шт.

TUBE, pneumatic, 6.70 X 15, 7.00 X 16, 7.10 X 15 or 7.50 X 16

4шт.
