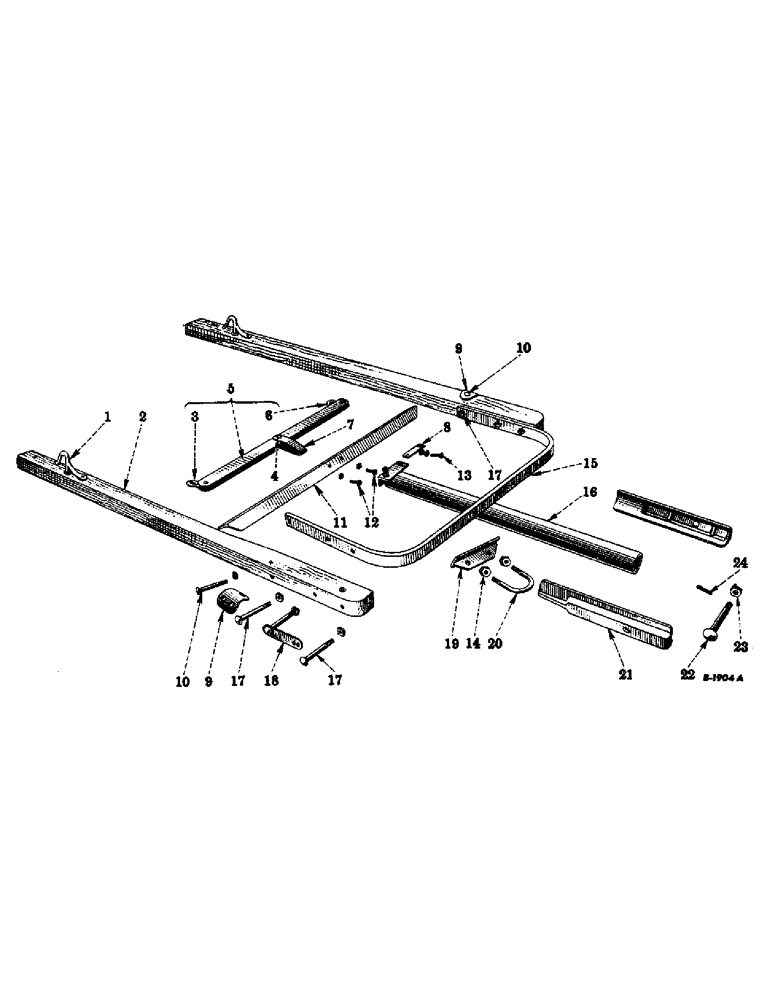

Запчасти Case IH VARIOUS (A-13) - ONE HORSE THILLS, ZMB201, SPECIAL, BUILT 1940 TO 1953
№
Артикул
Название
Примечание
Количество
ZMB201
ONE-HORSE THILLS, machine attachment, special
1шт.
1
J298Z
HOOK, holdback
2шт.
101930
SCREW
no. 10 x 3/4 fl-hd wood
2шт.
2
MB884
THILL, straight
2шт.
14937R1
RIVET, 1/4 x 2-1/8 truss-hd
2шт.
Q103
WASHER
17/64 ID x 5/8 OD x 16 ga, plain
2шт.
3
ST1035
HOOK, left singletree
1шт.
4
W4435
PIN
3/8 x 1-3/8 dld std-hd, singletree clevis
1шт.
103384
COTTER PIN,1/8" x 3/4"
Pin, Split (Cotter), 1/8" x 3/4"
1шт.
5
ST1040
HYDRAULIC OIL FILTER
SINGLETREE W/HOOKS, ST1025 and ST1035
1шт.
14332R1
RIVET, 3/8 x 1-1/16 rd-hd
2шт.
6
ST1025
HOOK, right singletree
1шт.
7
16348W
CLEVIS, singletree
1шт.
8
16347W
RETAINER, singletree clevis
1шт.
9
MA1226
WASHER, thill
2шт.
10
15142R11
BOLT
W/NUT, 3/8-16NC x 3 crg
2шт.
15198R11
BOLT W/NUT, 7/16-14NC x 3-7/8 crg
2шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
11
MA1175
BRACE, front thill
1шт.
12
13262R11
BOLT W/NUT, 3/8-16NC x 1-1/8 mach
2шт.
13
13279R1
BOLT, 3/8-16NC x 1-3/8 mach
2шт.
14
114773
NUT, 7/16-14NC hex
2шт.
15
M1225
BRACE, rear thill
1шт.
16
16353WB
TONGUE, stub
1шт.
13279R1
BOLT, 3/8-16NC x 1-3/8 mach
2шт.
105606
NUT
3/8-16NC sq
4шт.
17
15198R11
BOLT W/NUT, 7/16-14NC x 3-7/8 crg
4шт.
18
M920
PLATE, rear thill
2шт.
15198R11
BOLT W/NUT, 7/16-14NC x 3-7/8 crg
4шт.
103322
LOCK WASHER,7/16"
WASHER, LOCK, 7/16"
4шт.
19
16354W
BRACKET, rear thill brace
1шт.
13262R11
BOLT W/NUT, 3/8-16NC x 1-1/8 mach
2шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
20
W16097
U-BOLT, thill brace rear bracket
1шт.
114773
NUT, 7/16-14NC hex
2шт.
21
691W
ADAPTER, stub tongue
2шт.
22
Q3841
BOLT, 5/8-11NC x 6-1/8 dld crg, draft bracket and tongue connection
1шт.
M153M
NUT
5/8-11NC horned
1шт.
103386
COTTER PIN,1/8" x 1 1/4"
Pin, Split (Cotter), 1/8" x 1 1/4"
1шт.
23
M153M
NUT
5/8-11NC horned
1шт.
24
103386
COTTER PIN,1/8" x 1 1/4"
Pin, Split (Cotter), 1/8" x 1 1/4"
1шт.
Выбрано товаров: 42
