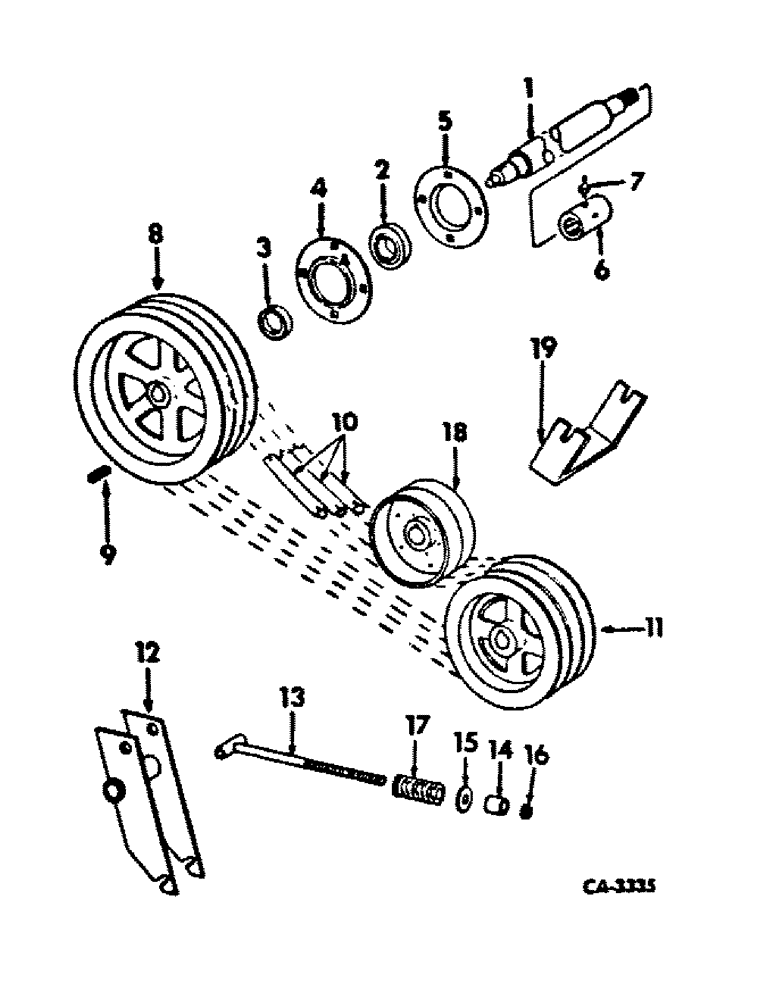

Запчасти Case IH 50 (C-07) - CROSS SHAFT & BELT DRIVE

1

491108R3

SHAFT

ASSY, drive

2шт.

19899R1

NUT

5/8-18 nylon insert

4шт.

2

478038R92

BALL BEARING,38.1mm ID x 80mm OD x 21mm W

ASSY, ball

2шт.

3

455112R11

COLLAR

W/SET SCREW, ball brg

2шт.

4

478023R91

FLANGE

W/FITTING, ball brg

2шт.

5

478024R1

FLANGE

ball brg

2шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2 x 1-1/4 crg type 5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

6

491112R2

HUB

spline

2шт.

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

SCREW, 5/16-18 x 2-1/2 znd hex-hd cap

2шт.

472146R1

LOCK NUT,5/16"-18, GB

NUT, 5/16-18 hex. lock

2шт.

7

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING, 1/4-28 ns 45 deg angle lub

2шт.

8

57032C1

PULLEY

drive

2шт.

21905R1

WASHER

21/32 x 1-3/4 x 3 ga znd

2шт.

9

Q72

KEY,5/16" Sq x 1 7/8", Par

3/8 x 1-7/8 sq parallel

4шт.

10

57034C1

SET OF BELTS,0.88" W

V-Belt, Matched set of 3 0.88" W

2шт.

11

57033C1

PULLEY

driven

2шт.

21905R1

WASHER

21/32 x 1-3/4 x 3 ga znd

2шт.

12

57035C1

PLATE

ASSY, idler pivot

2шт.

13

57038C1

BOLT

ASSY, idler adjusting

2шт.

22897R1

HEADED PIN,1/2" x 4 1/2"

PIN, 1/2 x 4-1/2 znd std-hd

2шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

3/16" x 1 1/2"

1шт.

14

663395R1

SPACER,1/2" X-Strng Pipe x 3/4"

1/2 x 3/4 extra strong pipe

2шт.

15

280874R1

WASHER

17/32 x 1-5/8 x 5/16

2шт.

16

120238

JAM NUT,Jam, 1/2"-13, G5

1/2 jam type 5

2шт.

16

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

17

549260R1

SPRING

compression

2шт.

18

57040C1

PULLEY ASSY.

PULLEY, idler

2шт.

187257R1

SPACER,1/2" Pipe x 1.219"

1/2 x 1.219 pipe

4шт.

433163

BOLT,Hex, 1/2" - 13 x 5", Gr 5

1/2 x 5 type 5

2шт.

19676R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 znd lock

2шт.

19

59778C1

BRACKET

GUIDE, belt

2шт.
