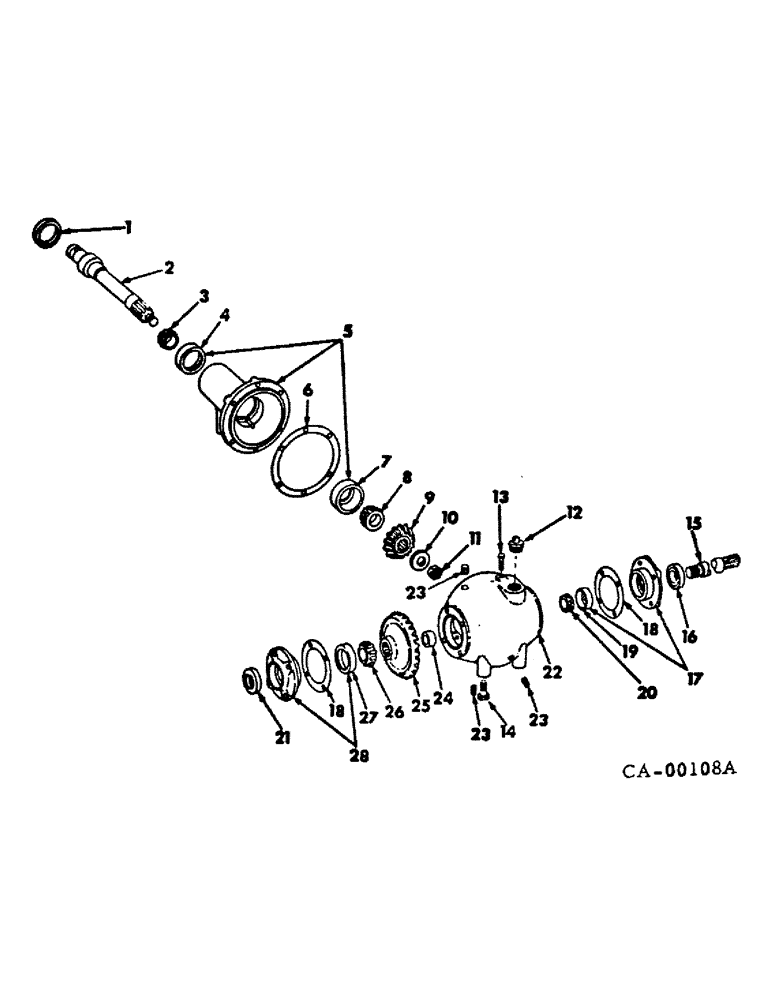

Запчасти Case IH 50 (C-04) - GEAR CASE

1

291596R91

SEAL

oil

1шт.

2

545610R2

SHAFT

ASSY, input

1шт.

3

13330DB

BEARING

ASSY, main drive case outer cone

1шт.

4

13324D

BEARING CUP,2.391" ID x 3.001" OD x 0.952"

main drive case outer cup

1шт.

491534R11

HOUSING

W/BRGS, main drive neck

1шт.

9617020

PLUG,1/4" - 18 x 0.48"

1/4-18 automotive Hex Socket pipe

1шт.

542640R1

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

SCREW, 3/8-16 x 1-1/2 hex-hd lock

6шт.

20661R1

BOLT,Hex, 5/8" - 11 x 2", Gr 8

SCREW, 5/8-11 x 2 hex-hd cap

2шт.

25711R1

WASHER

.656 x 1.312 x .150 hdn

2шт.

19724R1

BOLT (SPREADER),5/8"-11, G8

NUT, 5/8-11 hex. type 8

2шт.

6

673359R91

KIT

gear box large shim, (2) consists of, shim .005 (NSS), (2) shim .007 (NSS), (2) shim .020 (NSS)

1шт.

7

13201D

TAPERED BEARING

BEARING, main drive case inner cup

1шт.

8

13499DA

TAPERED BEARING

BEARING ASSY, main drive case inner cone

1шт.

9

GEAR, drive 26T, for 540 RPM, order gear set 1256489C1 (NSS)

1шт.

9

GEAR, drive 21T, for 1000 RPM, order gear set 1256488C1 (NSS)

1шт.

10

453599R1

WASHER

29/32 x 2 x 3 ga

1шт.

11

18501R1

LOCK NUT,7/8"-14

NUT, 7/8-14 nylon insert

1шт.

12

11691P

PLUG, 1 in filler

1шт.

103383

COTTER PIN,1/8" x 1/2"

Pin, Split (Cotter), 1/8" x 1/2"

1шт.

13

19532R1

BOLT,Hex, 3/8" - 16 x 1/2", Gr 2

3/8 x 1/2 type 1

1шт.

14

525841R1

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8

SCREW, 5/8-11 x 1-1/2 hex-hd cap

2шт.

25711R1

WASHER

.656 x 1.312 x .150 hdn

2шт.

15

541188R1

SHAFT

output

1шт.

16

629355R91

SEAL

oil

1шт.

17

626840R11

CAP

W/BEARING, main drive case L

1шт.

542640R1

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

SCREW, 3/8-16 x 1-1/2 hex-hd lock

4шт.

18

673358R91

PACKAGE

KIT, gear box small shim, consists of (2) shim .005 (NSS), (2) shim .007 (NSS), (2) shim .020 (NSS)

1шт.

19

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Main drive case L

1шт.

20

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING ASSY, main drive case L cone

1шт.

21

629355R91

SEAL

oil

1шт.

22

674403R1

HOUSING

CASE, main drive

1шт.

23

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

PLUG, PIPE, , pln Slotted, Headless, 1/8" NPT

2шт.

23

444612

PLUG

1/8-27 pln h/hd auto pipe

1шт.

24

202306R1

SNAP RING,#162, Ext

Ring, Snap, #162, Ext

1шт.

25

GEAR, driven 14T, for 540 RPM, order gear set, 1256489C1 (NSS)

1шт.

25

GEAR, driven 21T, for 1000 RPM, order gear set, 1256488C1 (NSS)

1шт.

26

560953R91

BEARING ASSY,1.375" ID x 2.875" OD x 0.9688"

BEARING ASSY, output shaft L cone

1шт.

27

165964R1

BEARING CUP

BEARING, output shaft L cup

1шт.

28

491101R91

CAP

W/BEARING, main drive case

1шт.

542640R1

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

SCREW, 3/8-16 x 1-1/2 hex-hd lock

4шт.

1256489C1

GEAR

SET, 14T and 26T, for 540 RPM, consists of gear, 14T driven (NSS), gear, 26T drive (NSS)

1шт.

1256488C1

GEAR-SET

GEAR SET, 21T and 21T, for 1000 RPM, consists of gear, 21T drive (NSS), gear, 21T driven (NSS)

1шт.
