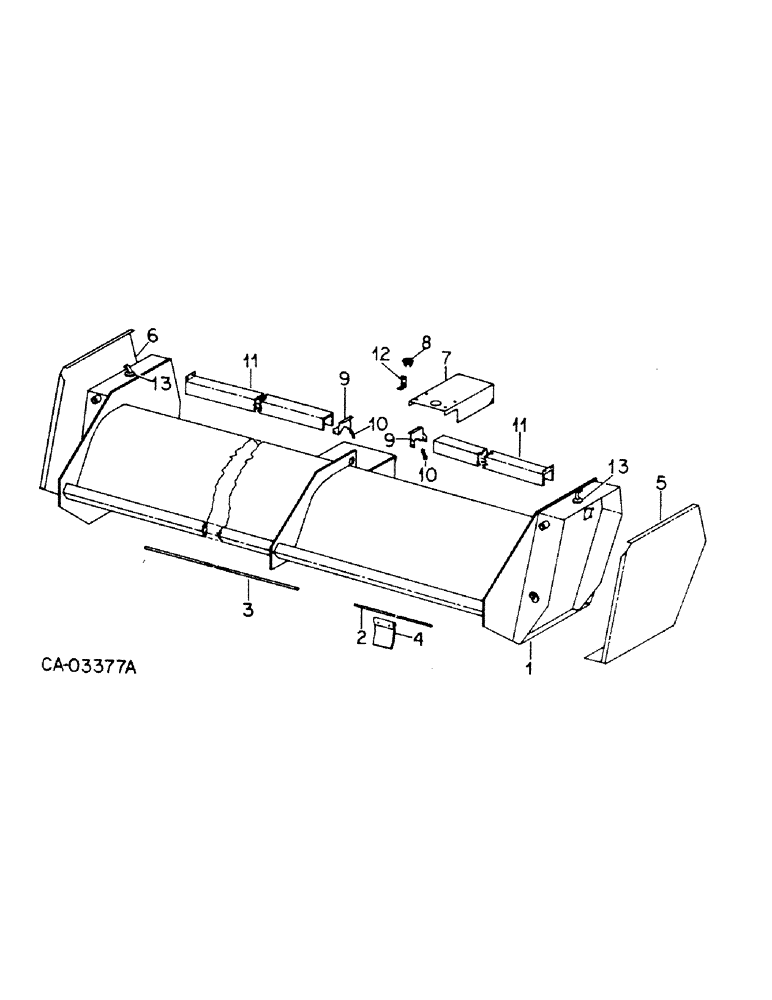

Запчасти Case IH 50 (C-03) - SHREDDER HOUSING AND CONNECTIONS

1

57236C1

FRAME W/PRODUCT GRAPHIC, 56628C3, main

1шт.

609836R1

WASHER

1-1/32 x 1-3/4 x .060

14шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

2

56880C1

PIPE

curtain long, LH

1шт.

3

58551C1

PIPE

curtain short, RH

1шт.

NLS

NO LONGER SERVICED

SPLIT (COTTER), 3/16" x 2"

2шт.

4

491066R1

CURTAIN

deflector

23шт.

21714R1

WASHER

29/32 x 1-1/2 x 11 ga znd, (1) washer, 21714R1 on each end & (2) washers, 21714R1 between curtains except at center support

44шт.

5

57046C1

SHIELD

drive, LH

1шт.

6

57047C1

SHIELD

drive, RH

1шт.

7

57021C92

SHIELD

W/PRODUCT GRAPHICS, 61908C1 and 202707C2, gear box

1шт.

18473R1

SCREW,Hex, 5/16"-18 X 5/8", G2

BOLT, 5/16-18 x 5/8 znd hex-hd mach

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120376

NUT,5/16"-18, G5

4шт.

8

398976R1

BRACKET

SOCKET, lamp bracket

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16-18 x 3/4 znd sq-nk crg

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

9

57027C1

SUPPORT

shield

2шт.

10

57045C1

STRAP

shield pivot

4шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4 crg type 5

4шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

4шт.

472146R1

LOCK NUT,5/16"-18, GB

NUT, 5/16-18 lock

8шт.

11

57250C1

SHIELD

ASSY, cross drive

2шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16-18 x 3/4 znd hex-hd mach

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120376

NUT,5/16"-18, G5

4шт.

12

493166R1

BRACKET, safety sigh

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2-13 x 1 znd hex-hd mach

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

13

56869C1

LATCH

over center

6шт.
