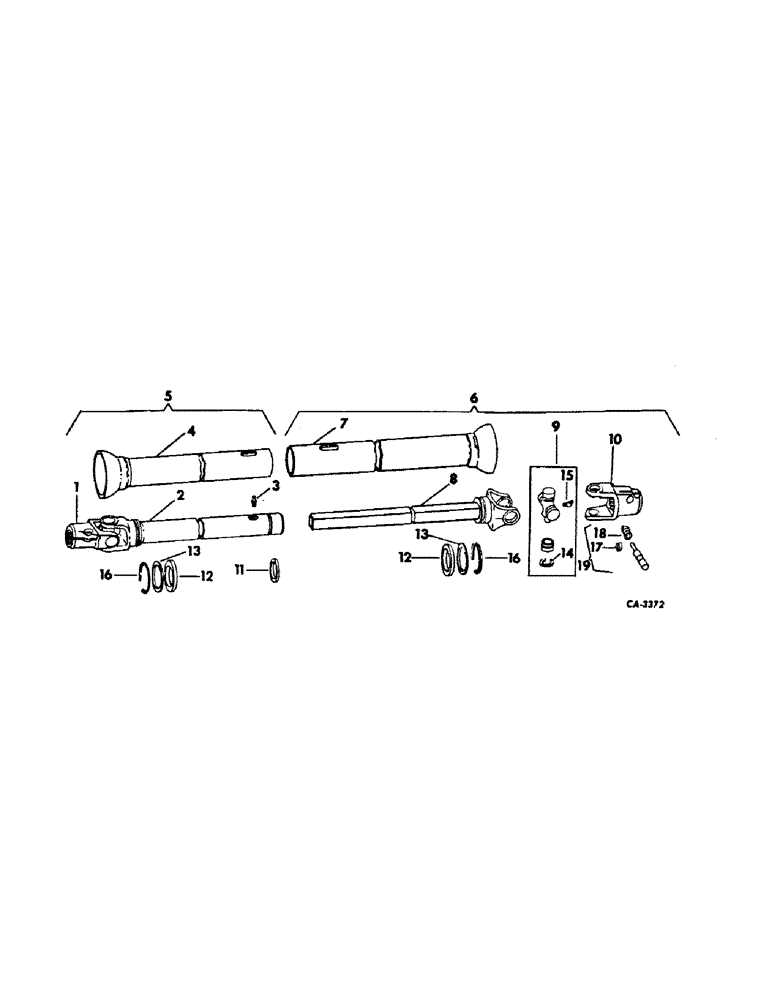

Запчасти Case IH 50 (C-10) - DOUBLE UNIVERSAL JOINTS, CLAMP TYPE YOKE, BOTH ENDS

1

547557R1

YOKE

splined, Rex chain belt, regular duty

1шт.

1

169950C1

YOKE

splined, Rockwell standard, regular duty

1шт.

1

547563R1

YOKE

splined, Rex chain belt, heavy duty

1шт.

1

548289R1

YOKE

splined, Rockwell standard, heavy duty

1шт.

25285R1

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 8

1/2-13 x 3-1/4 phc hex-hd, Rex chain belt

1шт.

275635R1

BOLT,Hex, 1/2" - 13 x 3", Gr 8

1/2 x 3 phc type 8, Rockwell standard

1шт.

25526R1

NUT,1/2"-13, G8

1/2-13 phc hex.

1шт.

116121

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

2

547559R1

YOKE W/TUBE & SLEEVE, regular duty

1шт.

2

547565R1

TUBE

YOKE W/TUBE & SLEEVE, heavy duty, Rex chain belt

1шт.

2

YOKE W/TUBE & SLEEVE, heavy duty, Rockwell standard, order joint assy, 545593R91 (NSS)

1шт.

3

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28NF2 str lub, Rex chain belt

1шт.

3

19688R1

LUBE NIPPLE,1/4"-28 x .44" lg

FITTING, 1/4 unf less ball check lub, Rockwell standard

1шт.

4

SHIELD, inner bell, regular duty, discontinued for service

1шт.

4

547564R1

SHIELD

inner bell, heavy duty, Rex chain belt

1шт.

4

548296R1

SHIELD

inner bell, heavy duty, Rockwell standard

1шт.

5

JOINT ASSY, implement end, regular duty, order component parts

1шт.

5

545593R91

JOINT

ASSY, implement end, heavy duty

1шт.

6

JOINT ASSY, tractor end, 540 RPM, regular duty, order component parts

1шт.

6

545591R93

JOINT

ASSY, tractor end, 540 RPM, heavy duty

1шт.

6

JOINT ASSY, tractor end, 1000 RPM, regular duty, order component parts

1шт.

6

545592R93

JOINT

ASSY, tractor end, 1000 RPM, heavy duty

1шт.

7

SHIELD, outer, 540 RPM, regular duty, discontinued for service

1шт.

7

SHIELD, outer, 1000 RPM, regular duty, discontinued for service

1шт.

7

547561R1

SHIELD

W/PRODUCT GRAPHIC, outer, heavy duty, Rex chain belt

1шт.

7

SHIELD, outer, heavy duty, Rockwell standard, discontinued for service

1шт.

8

483346R91

YOKE

W/SHAFT, 540 RPM, regular duty

1шт.

8

547555R2

YOKE W/SHAFT, 1000 RPM, regular duty

1шт.

8

547562R2

YOKE

W/SHAFT, heavy duty, Rex chain belt

1шт.

8

YOKE W/SHAFT, heavy duty, Rockwell standard, order joint assy, 545592R93 (NSS)

1шт.

9

347960R91

U-JOINT SPIDER

KIT, center cross, regular duty

2шт.

9

493849R91

KIT

center cross, heavy duty

2шт.

10

660484R21

FORK

YOKE ASSY, quick attachable, 540 RPM regular duty, tractor end, consists of Ref. nos. 17, 18 & 19

1шт.

10

547557R1

YOKE

splined, tractor end, 1000 RPM, regular duty

1шт.

10

547560R1

YOKE

splined, Rex chain belt, 540 RPM, heavy duty, for joint assy, 545591R93

1шт.

10

548290R1

YOKE

splined, Rockwell standard, 540 RPM, heavy duty, for joint assy, 545591R93

1шт.

10

547563R1

YOKE

splined, Rex chain belt, 1000 RPM heavy duty, for joint assy, 545592R93

1шт.

10

548289R1

YOKE

splined, Rockwell standard, 1000 RPM, heavy duty, for joint assy, 545592R93

1шт.

25285R1

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 8

1/2-13 x 3-1/4 phc hex-hd, Rex chain belt

1шт.

275635R1

BOLT,Hex, 1/2" - 13 x 3", Gr 8

1/2 x 3 phc type 8, Rockwell standard

1шт.

25526R1

NUT,1/2"-13, G8

1/2-13 phc hex.

1шт.

116121

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

11

613439R1

BRACKET

BEARING, nylon support, implement end, regular duty

1шт.

12

464920R1

NYLON BEARING,2.08" ID x 2.8" OD x 0.38"

nylon support, regular duty

2шт.

12

546970R1

BEARING COVER

nylon, heavy duty, Rex chain belt

4шт.

12

493848R1

BEARING HALF

nylon, heavy duty, Rockwell standard

4шт.

13

613437R1

THRUST WASHER,62.2mm ID x 71.12mm OD x 1.7mm Thk

thrust, regular duty

2шт.

14

495962R1

RING

lock, regular duty

8шт.

14

541057R1

TUBE

RING, lock, heavy duty

8шт.

15

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 65 deg angle lub

2шт.

16

613436R1

CLAMP

RING, retaining, regular duty

2шт.

17

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

X-WASHER, locking pin, used w/yoke assy, 660484R21

1шт.

18

455347R1

VALVE SPRING

SPRING, locking pin, used w/yoke assy, 660484R21

1шт.

19

455346R21

PIN

ASSY, locking, used w/yoke assy, 660484R21

1шт.
