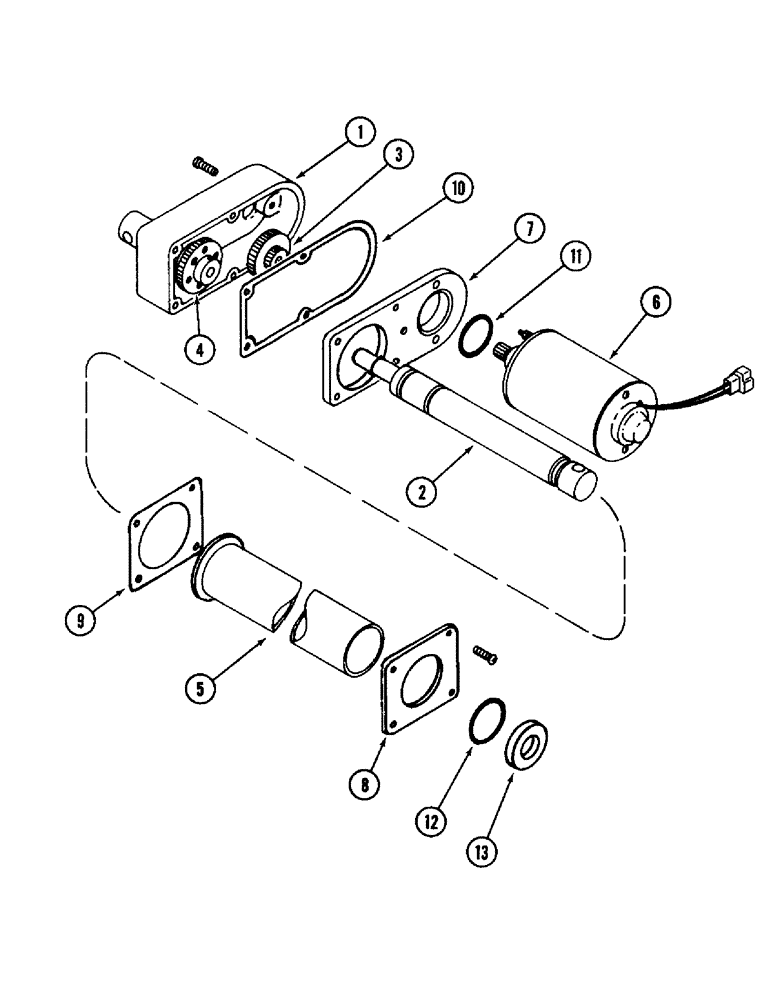

Запчасти Case IH 16 (12) - LINEAR ACTUATOR

ZA551810

SWITCH

ACTUATOR ASSEMBLY - linear

1шт.

1

1281482C1

HOUSING

- gear

1шт.

2

1251483C1

SCREW - actuator

1шт.

3

1281484C1

GEAR

- actuator

1шт.

4

1281485C1

CLUTCH

- actuator

1шт.

5

1281486C1

COVER

- rod

1шт.

6

1281487C1

KIT

MOTOR - actuator

1шт.

7

1281488C1

HOUSING

COVER - housing

1шт.

8

NSS

NOT SOLD SEPARAT

RETAINER - cover

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - retainer

1шт.

Part of seal kit P/N 1281489C1.

1шт.

10

NSS

NOT SOLD SEPARAT

GASKET - housing

1шт.

Part of seal kit P/N 1281489C1.

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL - motor

1шт.

Part of seal kit P/N 1281489C1.

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Part of seal kit P/N 1281489C1.

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL - lip

1шт.

Part of seal kit P/N 1281489C1.

1шт.

1281489C1

SEAL KIT

KIT - seal, Includes: Ref. 9 - 13

1шт.
