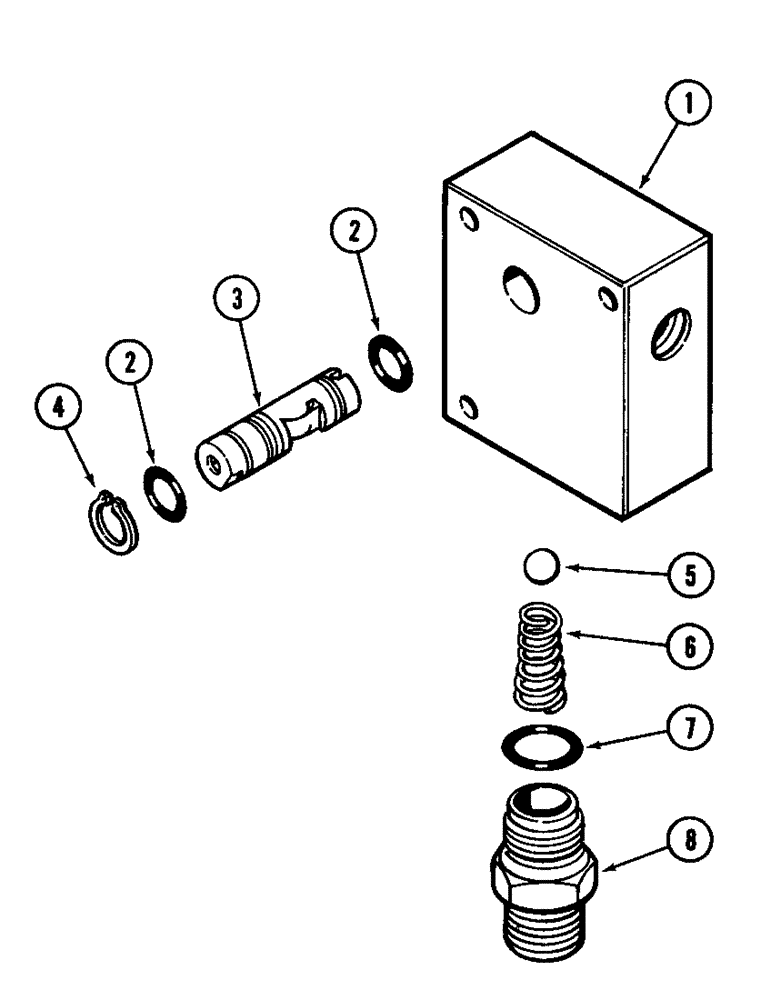

Запчасти Case IH 16 (10) - SPEED CONTROL VALVE

ZA551339

VALVE

ASSEMBLY - speed control

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve (Order ZA551339)

1шт.

2

382997R1

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- 1/2 ID x 1/16 inch (13 x 2 MM)

2шт.

3

ZA551838

SPOOL

- valve

1шт.

4

382627R1

SNAP RING,#59, Ext

Ring, Snap, #59, Ext

2шт.

5

17012R1

BALL,3/8" Dia

1шт.

6

ZA551839

SPRING

- compression

1шт.

7

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/64 inch (23 x 3 MM)

1шт.

8

9410205

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR - 3/4 inch tube, short

1шт.
