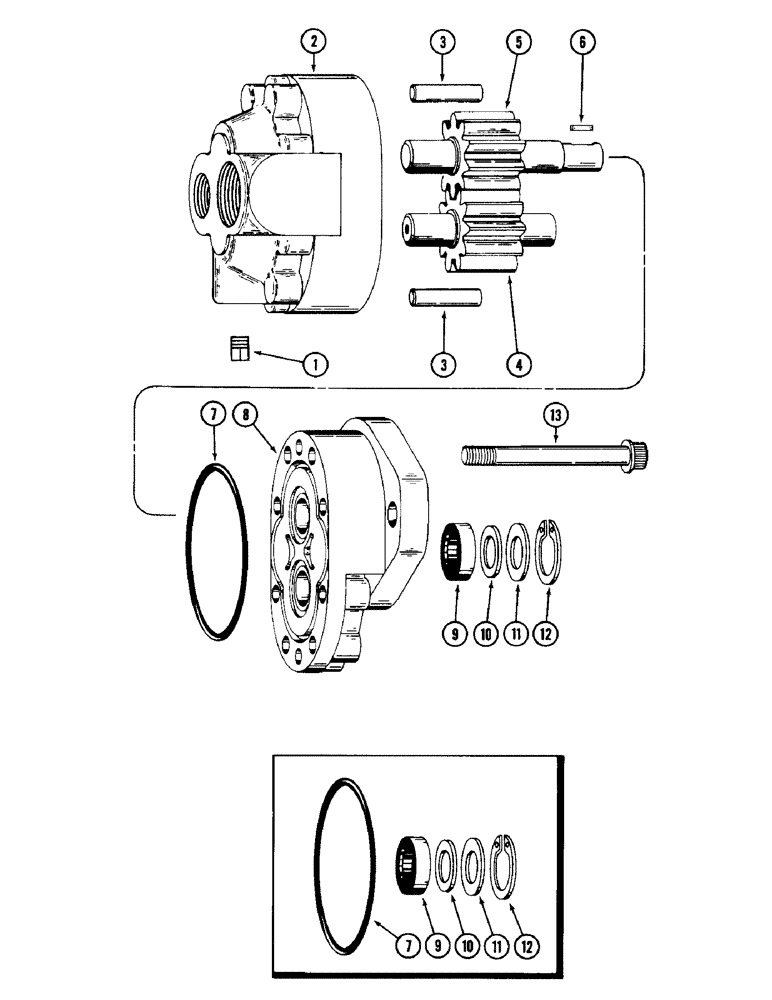

Запчасти Case IH 16 (08) - GEAR MOTOR

ZA551335

MOTOR

ASSEMBLY - gear

1шт.

1

ZA551979

PLUG

- pipe

1шт.

2

ZA551975

HOUSING

ASSEMBLY - motor

1шт.

3

ZA551978

PIN

- dowel

2шт.

4

ZA551976

GEAR

ASSEMBLY - idler

1шт.

5

ZA551977

GEAR

ASSEMBLY - drive

1шт.

6

ZA551981

KEY

- shaft

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING - 3 ID x 1/16 inch (76 x 2 MM)

1шт.

Part of seal kit P/N ZA551982.

1шт.

8

ZA551974

PLATE

ASSEMBLY - front

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - shaft

1шт.

Part of seal kit P/N ZA551982.

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER - backup

1шт.

Part of seal kit P/N ZA551982.

1шт.

11

NSS

NOT SOLD SEPARAT

WASHER - steel

1шт.

Part of seal kit P/N ZA551982.

1шт.

12

NSS

NOT SOLD SEPARAT

RING - retaining, internal

1шт.

Part of seal kit P/N ZA551982.

1шт.

13

27690R1

12 PT SCREW,Flg, 5/16"-18 x 1 1/2"

BOLT - 12 point flanged, 5/16 NC x 1-1/2 inch

8шт.

ZA551982

SEAL KIT

- seal, Includes: Ref. 7 and 9 - 12

1шт.
