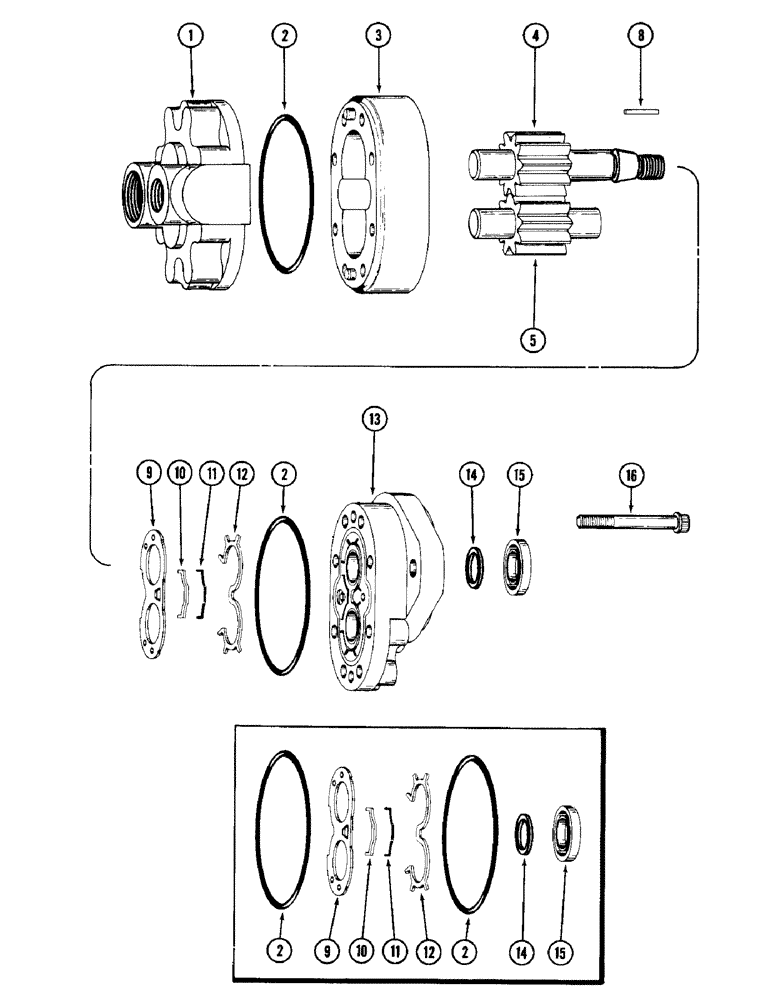

Запчасти Case IH 16 (06) - GEAR PUMP

ZA551336

PUMP

ASSEMBLY - gear

1шт.

1

ZA551987

PLATE

ASSEMBLY - back

1шт.

2

NSS

NOT SOLD SEPARAT

O-RING - 3 ID x 1/16 inch (76 x 2 MM)

2шт.

Part of seal kit P/N 1272638C2.

1шт.

3

ZA551989

BODY

ASSEMBLY - pump

1шт.

4

ZA551991

GEAR

ASSEMBLY - drive

1шт.

5

ZA551990

GEAR

ASSEMBLY - idler

1шт.

8

ZA703292

BUCKET TOOTH KEY

KEY - shaft

1шт.

9

NSS

NOT SOLD SEPARAT

PLATE - wear

1шт.

Part of seal kit P/N 1272638C2.

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - bearing

1шт.

Part of seal kit P/N 1272638C2.

1шт.

11

NSS

NOT SOLD SEPARAT

RING - molded

1шт.

Part of seal kit P/N 1272638C2.

1шт.

12

NSS

NOT SOLD SEPARAT

GASKET - backup

1шт.

Part of seal kit P/N 1272638C2.

1шт.

13

ZA551988

PLATE

ASSEMBLY - front

1шт.

14

NSS

NOT SOLD SEPARAT

WASHER - shaft

1шт.

Part of seal kit P/N 1272638C2.

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL - shaft

1шт.

Part of seal kit P/N 1272638C2.

1шт.

16

636020R1

BOLT

- 12 point flanged, 5/16 NC x 3 inch

8шт.

1272638C2

SEAL KIT

KIT - seal, Includes: Ref. 2, 9 - 12, 14 and 15

1шт.
