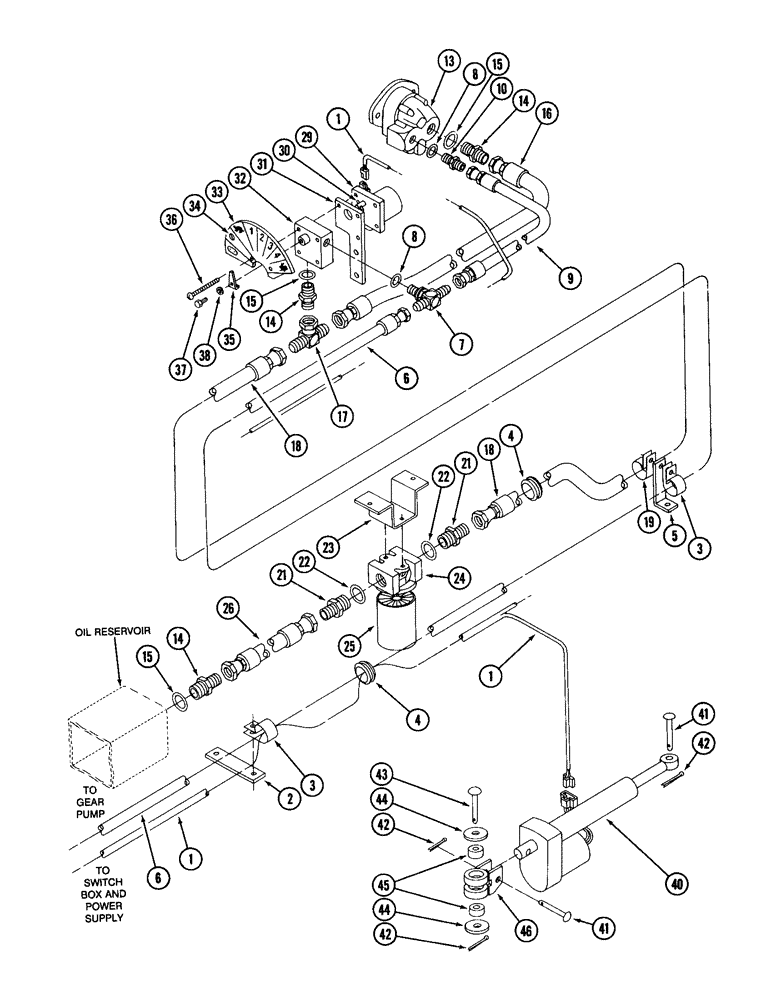

Запчасти Case IH 16 (04) - SPEED CONTROL, HOSES, AND GEAR MOTOR

1

ZA551938

HARNESS

- wiring, speed control

1шт.

2

ZA551856

BRACKET

- hose support

1шт.

3

28135R1

CLAMP

- mounting, hose

2шт.

4

1960483C1

GROMMET

- rubber, 1-5/8 inch hole diameter

2шт.

5

ZA711359

BRACKET

- hose support

1шт.

6

ZA551952

HOSE

ASEMBLY - pressure, 5/8 ID x 147 inch (16 x 3 733 MM)

1шт.

7

9411119

TEE,7/8"-14, 37 Degree x 7/8"-14, O-Ring Br

- hydraulic, 5/8 inch tube

1шт.

8

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 ID x 3/32 inch (19 x 2 MM)

2шт.

9

ZA551953

HOSE

ASSEMBLY - pressure, 5/8 ID x 25 inch (16 x 635 MM)

1шт.

10

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - 5/8 inch tube, short

1шт.

13

REF

INSTRUCTION

MOTOR ASSEMBLY - gear (See page 8)

1шт.

14

9410205

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR - 3/4 inch tube, short

3шт.

15

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/64 inch (23 x 3 MM)

3шт.

16

ZA551956

HOSE

ASSEMBLY - return, 3/4 ID x 24 inch (19 x 610 MM)

1шт.

17

9410309

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Br

- swivel, 3/4 inch tube

1шт.

18

ZA551954

HOSE

ASSEMBLY - return, 3/4 ID x 80 inch (19 x 2 032 MM)

1шт.

19

892033C1

CLAMP

- mounting, hose

1шт.

21

380633R1

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 5/16"-12, O-Ring

CONNECTOR - 3/4 inch tube, short 1-1/16 - 12 x 1-5/16 - 12

2шт.

22

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

- 1-11/64 ID x 7/64 inch (30 x 3 MM)

2шт.

23

ZA551861

BRACKET

- oil filter

1шт.

24

ZA502956

FILTER ASSY

FILTER ASSEMBLY - oil

1шт.

25

ZA502957

FILTER

ELEMENT - filter, oil

1шт.

26

ZA551960

HOSE

ASSEMBLY - return, 3/4 ID x 28 inch (19 x 711 MM)

1шт.

29

ZA551942

MOTOR

ASSEMBLY - speed control

1шт.

30

19371R1

PIN,1/8" x 3/4", Coiled

1шт.

31

ZA551384

SUPPORT

- flow control valve

1шт.

32

REF

INSTRUCTION

VALVE ASSEMBLY - speed control (See page 10)

1шт.

33

ZA551380

PLATE

- mounting, decal

1шт.

34

REF

INSTRUCTION

DECAL - speed control (See page 22)

1шт.

35

ZA551922

POINT

ER - speed control

1шт.

36

ZA551947

SCREW

- round head slotted, no. 10 NF x 3 inch

3шт.

37

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

1шт.

38

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

40

REF

INSTRUCTION

ACTUATOR ASSEMBLY - linear (See page 12)

1шт.

41

21932R1

HEADED PIN,1/2" x 2"

PIN - headed, 1/2 x 2 inch

2шт.

42

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

3шт.

43

21994R1

HEADED PIN,1/2" x 3 1/4"

PIN - headed, 1/2 x 3-1/4 inch

1шт.

44

460908R1

WASHER

- flat, 17/32 x 1-1/2 x 7/64 inch (13 x 38 x 3 MM)

2шт.

45

ZA551916

BUSHING

- rubber

2шт.

46

ZA551923

PIVOT

HINGE - actuator

1шт.
