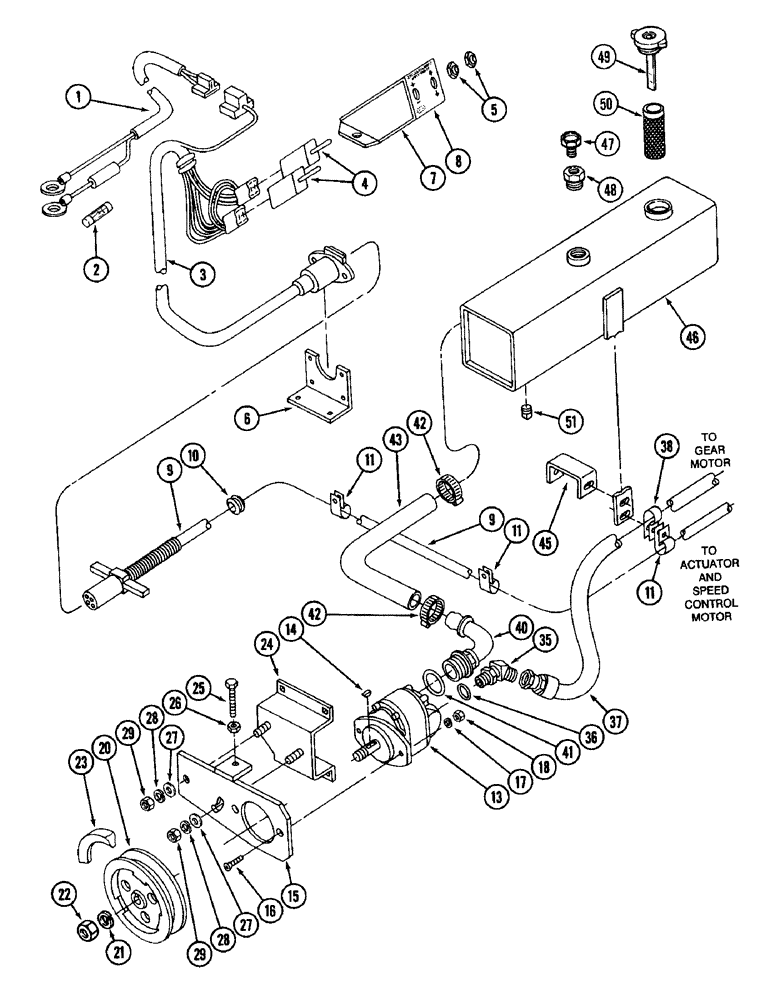

Запчасти Case IH 16 (02) - WIRING HARNESSES, OIL RESERVOIR, AND GEAR PUMP

1

ZA551939

HARNESS

ASSEMBLY - wiring, power supply

1шт.

2

223-31

FUSE,10 Amp, Type 3AG

- type 3AG, 30 ampere

1шт.

3

ZA551938

HARNESS

ASSEMBLY - wiring, speed control

1шт.

4

529933R91

SWITCH

- toggle

2шт.

5

91973C1

SEAL

- toggle switch (See note)

2шт.

Used for service on original equipment switch only. Not used with 529933R91.

1шт.

6

ZA551825

BRACKET

- mounting, harness

1шт.

7

ZA551944

BOX

- switch

1шт.

8

REF

INSTRUCTION

DECAL - switch box (See page 22)

1шт.

9

ZA551937

HARNESS

ASSEMBLY - wiring, switch box

1шт.

10

1960488C1

GROMMET

- rubber, 1-11/32 inch hole diameter

1шт.

11

117308R1

CLIP

CLAMP - mounting, hose

3шт.

13

REF

INSTRUCTION

PUMP ASSEMBLY - gear (See page 6)

1шт.

14

ZA703292

BUCKET TOOTH KEY

KEY - shaft

1шт.

15

ZA551326

SUPPORT

BRACKET - adjusting, gear pump

1шт.

16

602701R1

SCREW

BOLT - flat head hex socket, 7/16 NC x 1-1/2 inch

2шт.

17

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

18

271501

SOCKET

NUT - hex, 7/16 inch NC

2шт.

20

ZA551331

PULLEY

- gear pump

1шт.

21

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

22

120371

NUT,1/2"-20, G5

1шт.

23

ZA104486

V-BELT,0.66" W x 76.75" L

Gear pump 0.66" W x 76.75" L

1шт.

24

ZA551329

BRACKET

- fixed, gear pump

1шт.

25

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8"-16 NC x 1-3/4", grade 5

1шт.

26

120377

NUT,3/8" - 16, Gr 5

1шт.

27

460908R1

WASHER

- flat, 17/32 x 1-1/2 x 7/64 inch (13 x 38 x 3 MM)

2шт.

28

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

29

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

35

9411106

ELBOW

- 45 degree, 5/8 inch tube

1шт.

36

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 ID x 3/32 inch (19 x 2 MM)

1шт.

37

ZA551952

HOSE

ASSEMBLY - pressure, 5/8 ID x 147 inch (16 x 3 733 MM)

1шт.

38

28135R1

CLAMP

- mounting, hose

1шт.

40

ZA551948

TUBE,1.00" OD x 3.38", 2.94" Length

FITTING - beaded insert, 1 inch tube

1шт.

41

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/64 inch (23 x 3 MM)

1шт.

42

311164C91

HOSE CLAMP,#20, 0.81/1.75 Type F Worm

CLAMP - hose, no. 20, type F

2шт.

43

NSS

NOT SOLD SEPARAT

HOSE - suction, 15-1/2 inch (394 MM) (Cut from bulk hose 490960R2)

1шт.

490960R2

HOSE

- rubber, 1 inch ID x 50 feet (25 MM x 20 M)

1шт.

45

ZA551968

BRACKET

- oil reservoir

1шт.

46

ZA551340

TANK

RESERVIOR ASSEMBLY - oil

1шт.

47

1969203C1

BREATHER - 1/4 inch pt

1шт.

48

217-42

REDUCER,3/8" - 18 NPT x 1/4" - 18 NPT

BUSHING - 3/8 male pt x 1/4 inch female pt

1шт.

49

ZA551881

CAP

- pressure, oil reservoir

1шт.

50

ZA551882

STRAINER ASSY.

STRAINER - oil reservoir

1шт.

51

20972R1

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG - pipe, square head, 3/8 inch pt

1шт.
