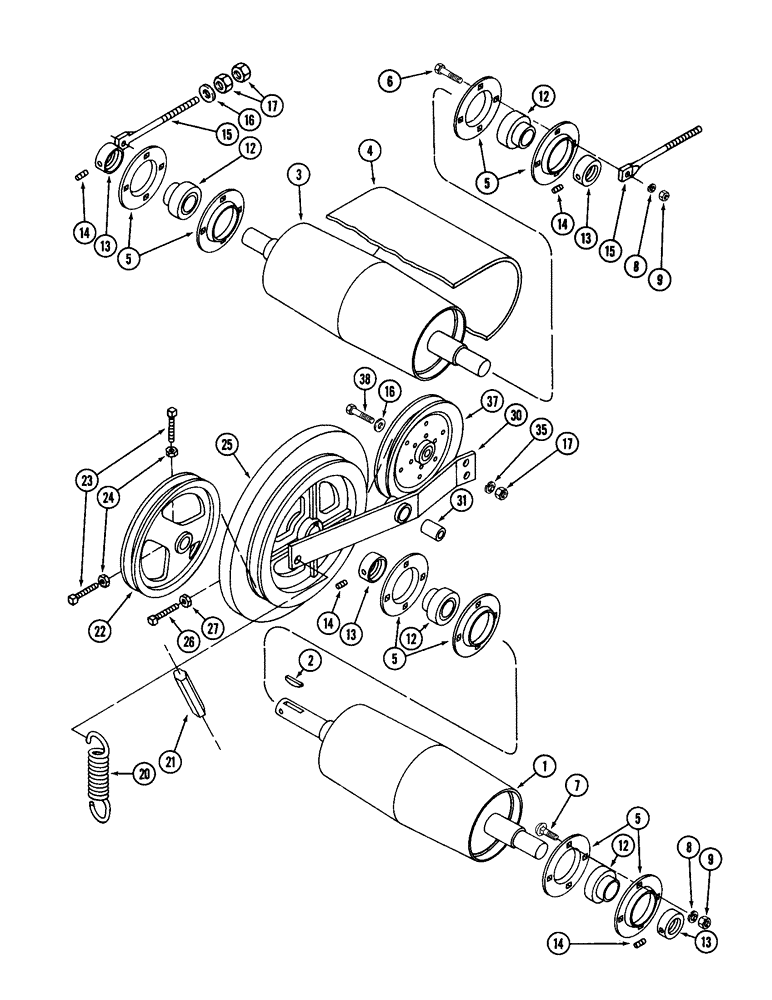

Запчасти Case IH 16 (18) - UPPER BELT AND ROLLER ASSEMBLIES

1

ZA551940

ROLLER

ASSEMBLY - drive

1шт.

2

40093D

WOODRUFF KEY,#127, 1/4" x 2 1/8", HT

KEY - Woodruff, no. 127, 1/4 x 2-1/8 inch

1шт.

3

ZA551941

ROLLER

ASSEMBLY - driven

1шт.

4

ZA551333

BELT,12.00" W

- Bale transport, Endless 12.00" W

1шт.

5

1960482C1

FLANGE

- bearing

8шт.

6

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

7

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

12шт.

8

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

16шт.

9

120377

NUT,3/8" - 16, Gr 5

16шт.

12

204807C91

BEARING ASSY,25.4mm ID x 52mm OD x 15mm W

BEARING - ball

4шт.

13

455102R21

COLLAR

- locking, bearing

4шт.

14

127782

SET SCREW,Hex Skt, 1/4"-20 x 1/4", Cup Pt

1шт.

15

ZA551366

BOLT

- tensioning, 1/2 inch NC

2шт.

16

120396

WASHER

- flat, 17/32 x 1-1/16 x 5/64 inch (13 x 27 x 2 MM)

3шт.

17

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

5шт.

20

ZA551946

SPRING

- extension

1шт.

21

ZA551156

V-BELT,0.63" W x 98.89" L, 8 Ribs

Roller drive 0.63" W x 98.89" L, 8 Ribs

1шт.

22

ZA551930

PULLEY

- drive, 7-1/2 inch (191 MM) OD

1шт.

23

107327

SET SCREW,Sq Hd, 5/16"-18 x 1"

SCREW - set, square head cup point, 5/16 NC x 1 inch

2шт.

24

124824

NUT,Hex, 5/16" - 18

- hex jam, 5/16 inch NC

2шт.

25

ZA551929

FLYWHEEL

- roller

1шт.

26

1960414C1

SCREW

- set, square head dog point, 3/8 NC x 1 inch

1шт.

27

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

30

ZA551389

ARM ASSY.

ARM ASSEMBLY - pivot, with bearing

1шт.

31

ZA551393

BUSHING,0.63" ID x 0.879" OD x 1.18"

BEARING - pivot arm

1шт.

35

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

37

599356R91

PULLEY ASSY.

PULLEY - idler, 7-5/16 inch (186 MM) OD

1шт.

38

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

- hex, 1/2 NC x 2 inch

1шт.
