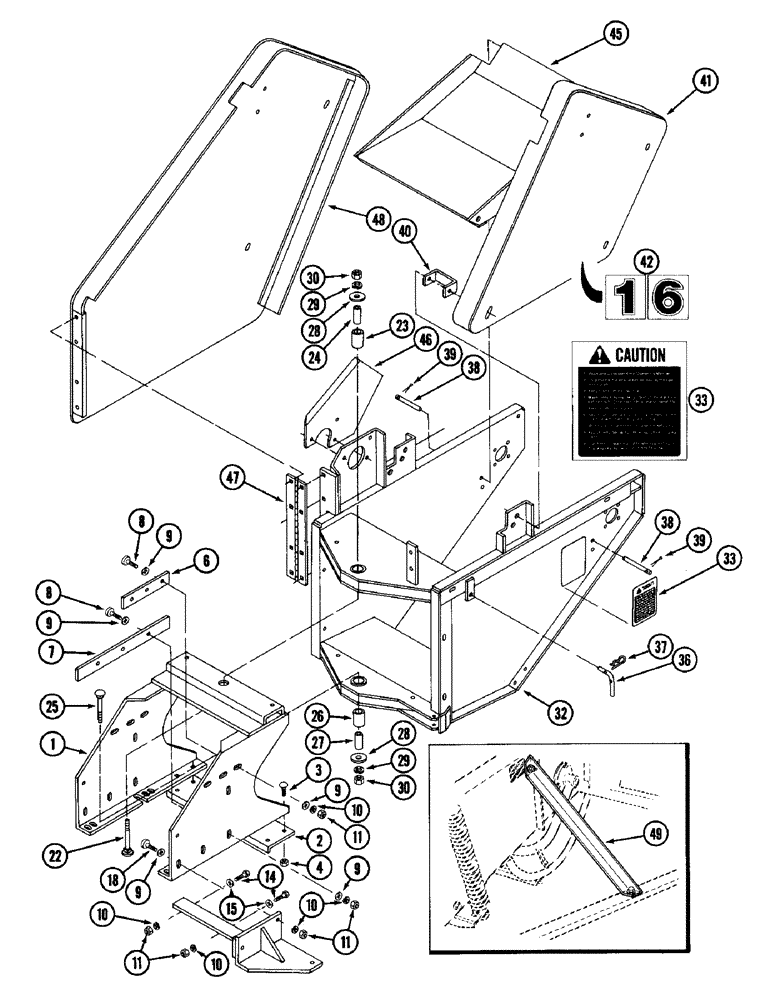

Запчасти Case IH 16 (14) - MAIN FRAME AND SHIELDS

1

ZA551044

SUPPORT

- main frame

1шт.

2

ZA551928

SUPPORT

BRACE - bottom, support

1шт.

3

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

4шт.

4

9413953

LOCK NUT,3/8"-16, GB

NUT - hex lock, 3/8 inch NC

4шт.

6

ZA551344

SPACER

- top

2шт.

7

ZA551345

SPACER

- bottom

2шт.

8

ZA551319

SCREW

BOLT - button head hex socket, 3/8 NC x 1-1/4 inch, grade 8

11шт.

9

21403R1

WASHER

- flat, 13/32 x 1 x 1/8 inch (10 x 25 x 3 MM)

1шт.

10

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

11

120377

NUT,3/8" - 16, Gr 5

1шт.

13

ZA551879

BRACKET

- mounting, actuator

1шт.

14

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

15

614452R1

WASHER

- flat, 13/32 x 1-1/4 x 3/32 inch (10 x 32 x 2 MM)

2шт.

18

ZA551820

SCREW

BOLT - button head hex socket, 3/8 NC x 1-1/2 inch, grade 8

2шт.

22

441425R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 4 1/2", Gr 5

BOLT - round head square neck, 5/8 NC x 4-1/2 inch

1шт.

23

ZA551903

BUSHING,1.3817" ID x 1.628" OD x 2.19"

BEARING - upper

1шт.

24

ZA551354

SPACER

- upper, long

1шт.

25

608532R1

SCREW,Short NK, 5/8"-11 x 3 1/2", G5

BOLT - round head square neck, 5/8 NC x 3-1/2 inch

1шт.

26

ZA551904

BUSHING,1.3817" ID x 1.628" OD x 1.88"

BEARING - lower

1шт.

27

ZA551353

SPACER

- lower, short

1шт.

28

23276R1

WASHER

- flat, 21/32 x 2 x 5/32 inch (17 x 51 x 4 MM)

2шт.

29

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

30

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

2шт.

32

ZA551818

FRAME

ASSEMBLY - main

1шт.

33

REF

INSTRUCTION

DECAL - caution, rules for safe operation (See page 22)

1шт.

36

ZA551945

PIN

- bale slide

1шт.

37

407211R1

CLIP

PIN - hair (Packaged of 20)

1шт.

38

ZA551385

ROD

- pivot

1шт.

39

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

40

ZA551932

BRACKET

- shield

1шт.

41

ZA551869

SHIELD

- left

1шт.

42

REF

INSTRUCTION

DECAL - model number (See page 22)

2шт.

45

ZA551900

SLIDE

- bale

1шт.

46

ZA551876

SHIELD

- inner, motor

1шт.

47

ZA551835

HINGE

- shield

1шт.

48

ZA551873

SHIELD

- right

1шт.

49

ZA551136

BRACE

- bale chamber to hitch brace

1шт.
