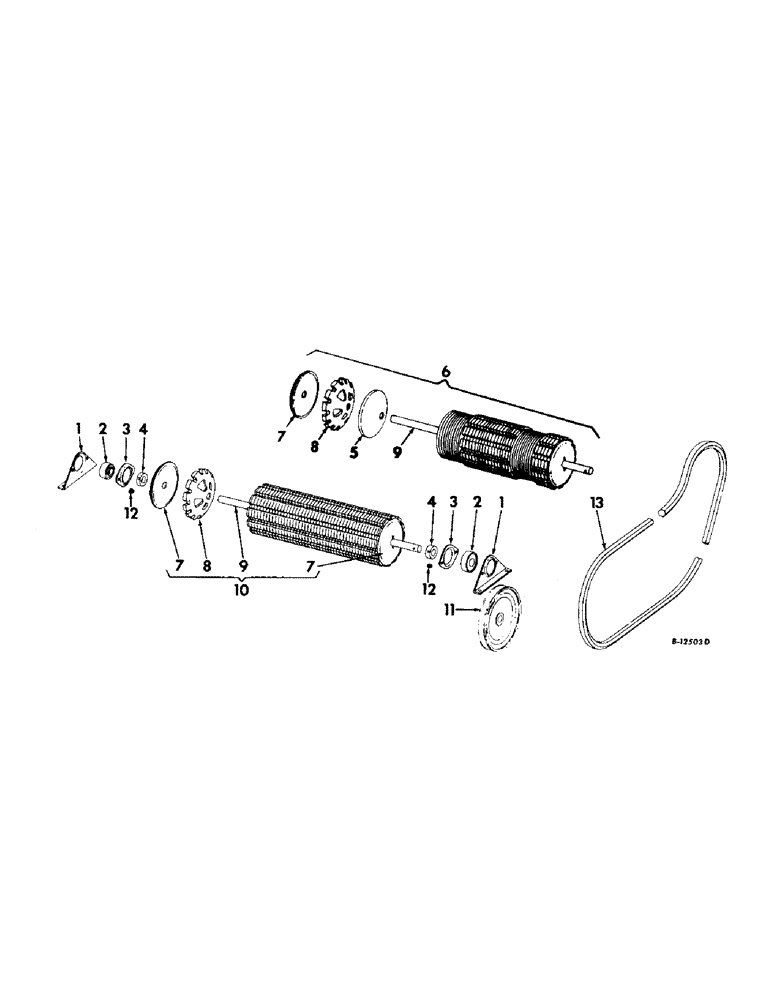

Запчасти Case IH 15 (B-05) - DRIVE ROLLS AND ENGINE DRIVE BELT

1

665721R1

BLOCK

bearing pillow

12шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 x 3/4 pln type 1

24шт.

2

564991R92

BEARING, BALL,22.23mm ID x 52mm OD x 15mm W

BEARING ASSY, roller

12шт.

3

612031R1

FLANGED BEARING

bearing

12шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

22шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z flange whiz lock

24шт.

4

658006R11

COLLAR

W/SET SCREW, bearing locking

12шт.

5

668412R1

DISC

DISK, roller plain (or as required)

50шт.

6

668411R91

ROLLER

ASSY

2шт.

7

667162R1

RETAINER

roller

12шт.

8

667161R1

DISC

DISK, roller (or as required)

322шт.

9

667163R1

SHAFT

roller

6шт.

23285R1

PIN,1/4" x 1 5/8"

1/4 x 1-5/8 znd chamf str

12шт.

10

667164R91

ROLLER

ASSY

4шт.

11

674408R1

PULLEY

roll shaft

6шт.

22975R1

PIN, 5/16 x 1-5/8 slt-spr

6шт.

22969R1

LOCK PIN,3/16" x 1 3/4", Slotted

Pin, 3/16" x 1 3/4", Slotted

6шт.

12

200891C1

LOCK NUT

3/8-16 small flange lock

24шт.

13

21049K

BELT,190.83 mm L

Engine drive 190.83 mm L

1шт.
