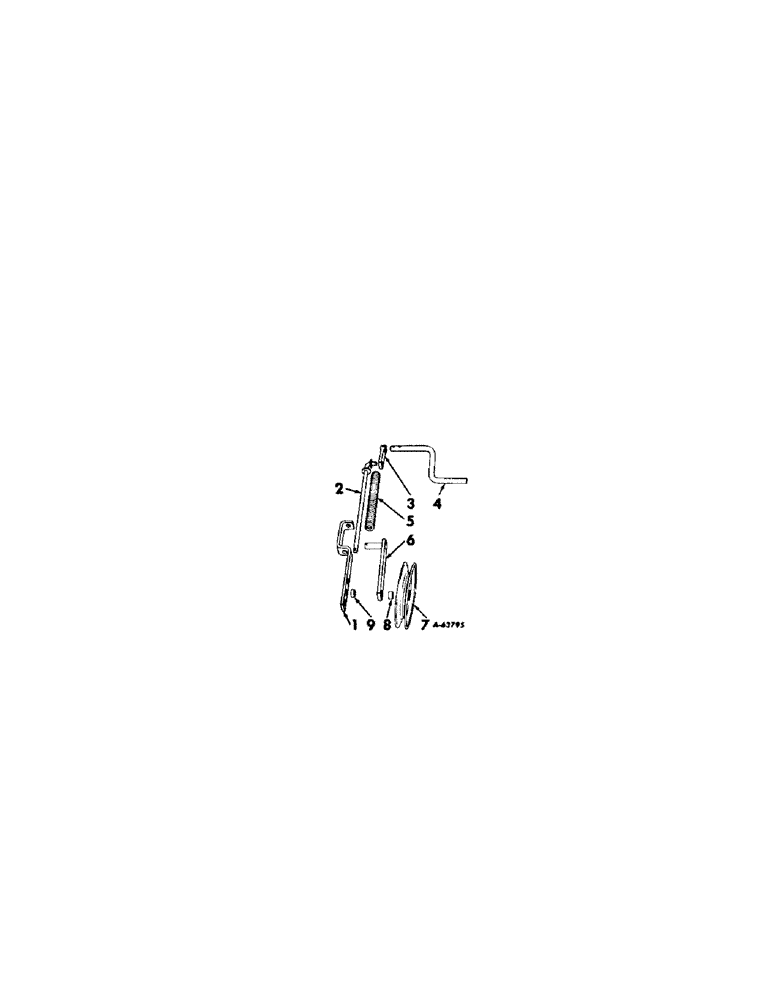

Запчасти Case IH 15 (B-05[A]) - BELT IDLER

1

665767R2

SLIDE, idler arm

1шт.

2

665766R11

ROD

SLIDE ASSY, idler rod

1шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

178373R1

WASHER

.531 x 1.000 x .056

2шт.

3

665763R91

LEVER

assy idler

1шт.

21831R1

LOCK PIN,1/4" x 1 1/8", Slotted

Pin, 1/4" x 1 1/8", Slotted

1шт.

4

665762R2

HANDLE

idler

1шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

178375R1

WASHER

.781 x 1.250 x .054

2шт.

5

518926R1

SPRING

idler

1шт.

6

665768R11

ARM

ASSY, idler

1шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

178375R1

WASHER

.781 x 1.250 x .054

2шт.

7

574097R91

PULLEY

idler

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

271726

ROTOR,Hex, 5/8" - 11 x 2 3/4", Gr 5

5/8 x 2-3/4 type 5

1шт.

21796R1

WASHER

.656 x 1.000 x .054

1шт.

8

320993R1

SPACER,7/8" Tube x 1/2"

idler sheave outer

1шт.

9

665771R1

SPACER

idler sheave inner

1шт.
