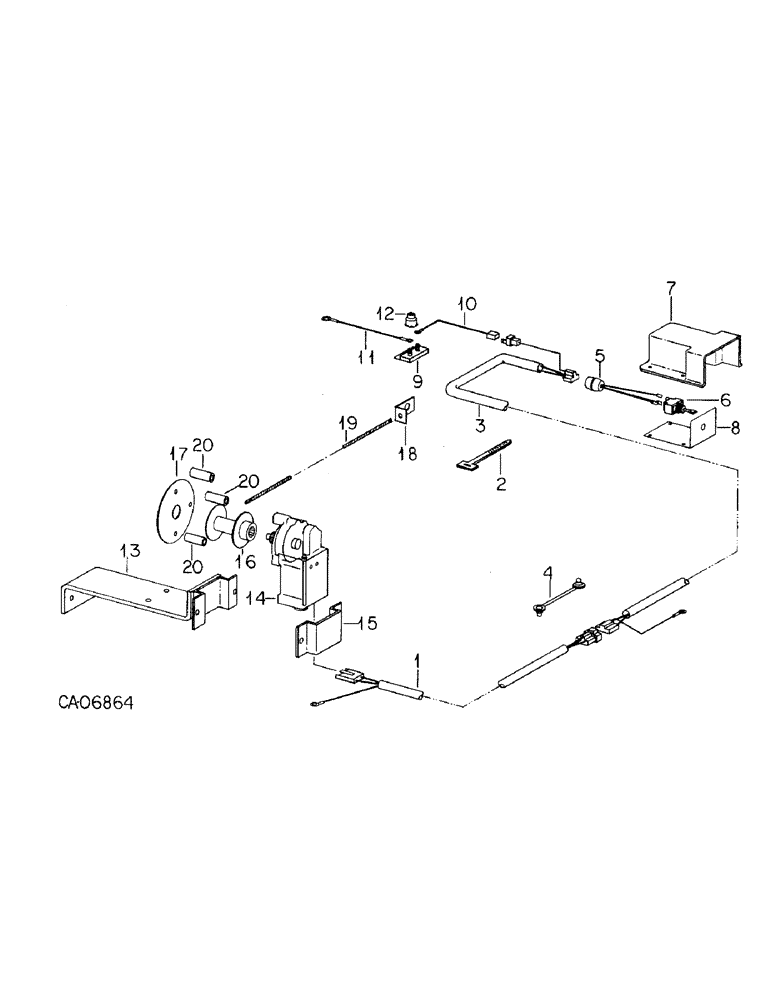

Запчасти Case IH 15 (B-14) - ELECTRIC SPEED CONTROL

1

210643C1

HARNESS

1шт.

2

702093C1

CABLE TIE

STRAP, harness

2шт.

3

55861C1

HARNESS

wiring

1шт.

4

55863C1

CLAMP

plastic

4шт.

4

299407C1

CLAMP

.500 dia znd coated med clo

1шт.

5

55862C1

ELECTRICAL WIRE

WIRE ASSY

1шт.

6

529933C91

SWITCH

1шт.

7

55857C1

BOX

switch

1шт.

8

55858C1

COVER

switch box

1шт.

21531R1

SCREW

1/4 x 1-3/4 znd p/hds mach

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

23505R1

WASHER

.281 x .625 x .054

1шт.

9

403069R1

CIRCUIT-BREAKER,30A

BREAKER, 30 amp circuit

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

10

55855C1

ELECTRICAL WIRE

WIRE ASSY, battery breaker

1шт.

11

55856C1

ELECTRICAL WIRE

WIRE ASSY, breaker switch

1шт.

12

251553C1

NIPPLE CIRCUIT

1шт.

13

210603C1

SUPPORT

ASSY, speed control

1шт.

18794R1

BOLT,Hex, 7/16" - 14 x 1", Gr 2

7/16 x 1 type 1

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16 type 5

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

14

126573C1

MOTOR, ELECTRIC

MOTOR ASSY, electric

1шт.

15

122345C1

SUPPORT

motor

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

2шт.

16

116212C1

SHAFT

ASSY

1шт.

139329

SET SCREW,Hex Soc, 1/4"-20 x 5/8"

SCREW, 1/4 x 5/8 pln co/pt hdl/hs set

1шт.

17

116216C1

RETAINER

MOTOR PLATE

1шт.

18

668916R1

CLIP

rode attaching

1шт.

19

668939R1

ROPE

speed control

1шт.

20

600411R1

SPACER,3/8" Pipe x 2 3/4"

3/8 x 2.750 std

3шт.

21530R1

SCREW

1/4 x 3-1/2 znd p/hds mach

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.
