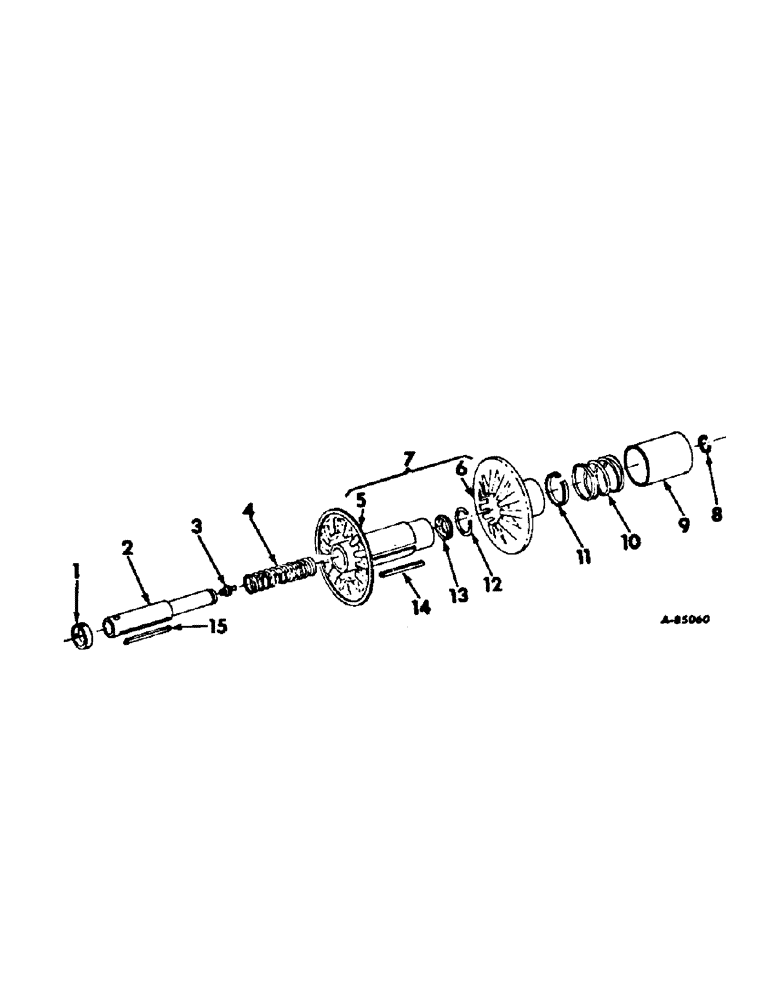

Запчасти Case IH 15 (B-12) - VARIABLE DRIVEN PULLEY, FOR 27, 37, 46, 46, 420, 425, 430, 435, 440 AND 445 BALERS

668903R93

PULLEY

VARIABLE DRIVEN PULLEY

1шт.

1

673606R1

COLLAR

shaft

1шт.

125735

SET SCREW,Hex Skt, 1/4"-20 x 3/8"

Cup point Hex Soc, 1/4"-20 x 3/8"

2шт.

2

NSS

NOT SOLD SEPARAT

SHAFT, pulley, not serviced separately, order 668903R93

1шт.

3

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 str lub

1шт.

4

673610R2

SPRING

inner

1шт.

5

NSS

NOT SOLD SEPARAT

DISC, inner, not serviced separately, order 668903R93

1шт.

6

NSS

NOT SOLD SEPARAT

DISC, outer, not serviced separately, order 668903R93

1шт.

7

NSS

NOT SOLD SEPARAT

DISC ASSY, outer and inner, not serviced separately, order 668903R93

1шт.

8

373522R1

SNAP RING,#87, .668" Dia, E-Type

Ring, Retaining, #87, .668" Dia, E-Type

1шт.

9

210715C1

COVER ASSY

COVER, spring, replaces 673614R1

1шт.

10

673611R1

VALVE SPRING

SPRING, outer

1шт.

11

673609R1

RING

key retainer

1шт.

12

673613R1

CIRCLIP

RING, spring retainer cap

1шт.

13

673612R1

RETAINER

CAP, spring retainer

1шт.

14

673607R1

KEY

drive outer

1шт.

15

673608R2

KEY

drive inner

1шт.
