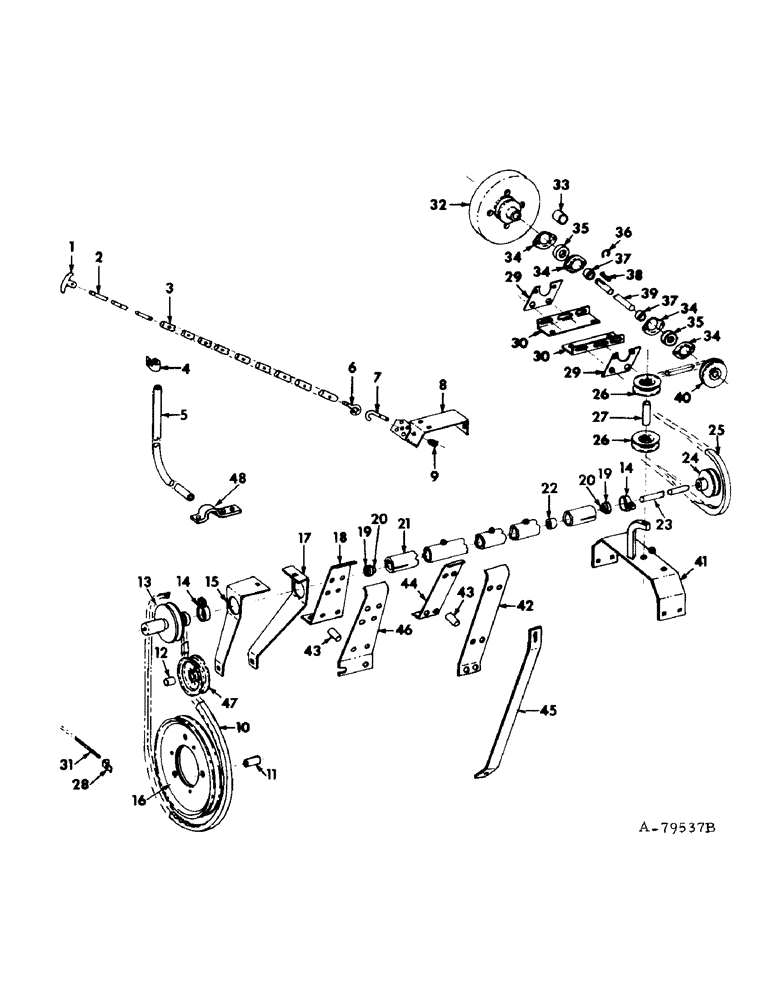

Запчасти Case IH 15 (B-10) - POWER TAKE-OFF DRIVE, FOR 27, 37, 46, 47, 420, 425, 428, 430,435,440, AND 445 BALERS

1

668945R1

HANDLE

speed control

1шт.

23310R1

PIN, 5/32 x 3/8 znd groove

1шт.

2

668922R1

ROD

speed control

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

517543R1

PIN, 3/16 quick attachable

1шт.

3

668921R1

HOUSING

speed control crank

1шт.

4

668923R1

CLAMP

control rod

1шт.

18658R1

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 2

1/4 x 1-3/4 type 1

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

5

665667R1

STAND

speed control

1шт.

6

668920R1

EYE

control rod

1шт.

7

668919R2

HOOK

speed control J

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

21903R1

WASHER

.531 x .750 x .054

1шт.

8

668917R1

BRACKET

speed control

1шт.

18794R1

BOLT,Hex, 7/16" - 14 x 1", Gr 2

7/16 x 1 type 1

2шт.

271501

SOCKET

NUT, 7/16 type 5

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

9

30A

SPRING

speed control, replaces 352370R1

1шт.

10

668902R1

BELT

PTO drive

1шт.

10

210628C1

BELT,2133.43 mm L

PTO drive, 425 baler 2133.43 mm L

1шт.

11

936153R1

SPACER

pulley sheave, replaces M23361

3шт.

12

651612R1

SPACER, idler pulley front, replaces 651260R1

1шт.

21905R1

WASHER

.656 x 1.750 x .224

1шт.

13

668903R93

PULLEY

variable driven, for components see list of parts under details of variable driven pulley

1шт.

14

668906R1

CLAMP

drive shaft brg

2шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 type 1

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

15

668915R1

BRACKET

idler pulley front

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 crg type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

16

668901R12

PULLEY

ASSY, drive

1шт.

20628R1

BOLT,Hex, 3/8"-16 x 3 1/4", G2

3/8 x 3-1/4 type 1

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

17

668914R1

BRACKET

idler pulley rear

1шт.

18

668910R1

BRACKET

drive shaft right front

1шт.

18

210619C1

SUPPORT

front right, 425 baler

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 CD or zn-pltd hex

2шт.

18696R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/2", Gr 2

BOLT, 7/16-14 x 1-1/2 CD or zn-pltd short-sq-nk crg

2шт.

180149

LOCK SCREW,Hex, 7/16" - 14 x 1 1/2", Gr 5

SCREW, 7/16-14 x 1-1/2 CD or zn-pltd hex-hd cap

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

21029R1

WASHER

.469 x 1.000 x .105

4шт.

19

668907R92

BEARING ASSY,15.88mm ID x 40mm OD x 13mm W

BEARING ASSY, drive shaft

2шт.

20

468391R11

COLLAR

W/SET SCREW, brg locking

2шт.

21

668905R11

HOUSING

ASSY, drive shaft

1шт.

21

210615C1

TUBE

ASSY, drive shaft, 425 baler

1шт.

178758

SET SCREW,Sq Hd, 5/16" - 18 x 3/4", Cup Pt

SCREW, 5/16 x 3/4 znd sq/hd c/pt set

4шт.

NLS

NO LONGER SERVICED

5/16 jam type 5

4шт.

22

668909R1

BUSHING,0.627" ID x 1.502" OD x 1"

BEARING, drive shaft sleeve

4шт.

23

668904R2

SHAFT

drive

1шт.

23

210617C1

SHAFT

drive, 425 baler

1шт.

24

673758R2

PULLEY

V belt mule drive, replaces 668927R91

1шт.

107327

SET SCREW,Sq Hd, 5/16"-18 x 1"

SCREW, 5/16-18 x 1 C-Z sq-hd cup-pt set

2шт.

120376

NUT,5/16"-18, G5

2шт.

25

668929R1

V-BELT,65.80" L

Mule drive 65.80" L

1шт.

25

210629C1

BELT,16.00 mm W x 1823.55 mm L

V-BELT , Mule drive, 425 baler 16.00 mm W x 1823.55 mm L

1шт.

26

668940R91

PULLEY

ASSY, idler

2шт.

27

F18186

SPACER,1/2" Pipe x 3 1/4"

idler pulley rear

1шт.

22471R1

BOLT,Hex, 1/2" - 13 x 6 3/4", Gr 5

1/2-13 x 6-1/2 CD or zn-pltd hex-hd mach

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 CD or zn-pltd hex lock

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

178373R1

WASHER

.531 x 1.000 x .056

2шт.

28

668916R1

CLIP

rope attaching

1шт.

29

668935R1

PLATE ASSY.

PLATE, bearing

2шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 type 1

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

21741R1

WASHER

.406 x .875 x .105

4шт.

30

668936R1

BRACKET

brg mount

2шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 type 1

6шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

31

ROPE, speed control, purchase locally 3/16 x 30 inches nylon rope

1шт.

32

668937R1

FLYWHEEL

AND SHEAVE

1шт.

33

315179R1

TUBE

SPACER, flywheel and sheave, replaces M74461

1шт.

34

612031R1

FLANGED BEARING

brg mounting

4шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 crg type 1

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

35

669533R91

BEARING ASSY,1" ID x 2.21875" OD x 1.21875"

ASSY, rear countershaft

2шт.

36

683059R1

RING,#112, Ext

Snap, , flywheel and sheave #112, Ext

1шт.

37

455102R21

COLLAR

W/SET SCREW, brg locking

2шт.

38

Q3914

KEY,Gib, 1/4" Sq x 1 1/2"

1/4 x 1-1/2 gib

1шт.

39

668934R2

SHAFT

COUNTERSHAFT, rear

1шт.

21742R1

WASHER

1.031 x 1.500 x .027

1шт.

40

668933R91

PULLEY

rear countershaft

1шт.

107327

SET SCREW,Sq Hd, 5/16"-18 x 1"

SCREW, 5/16-18 x 1 C-Z sq-hd cup-pt set

2шт.

120376

NUT,5/16"-18, G5

2шт.

41

668930R91

SUPPORT

ASSY, pivot brace upper

1шт.

42

668926R1

BRACKET

drive shaft left rear

1шт.

42

210627C1

SUPPORT

rear left, bracket, 425 baler

1шт.

43

M23361

ROLLER

SPACER, drive shaft bracket

4шт.

43

468460R1

SPACER

drive shaft bracket, 425 baler

4шт.

18783R1

BOLT,Hex, 3/8"-16 x 2 1/2", G2

3/8-16 x 2-1/2 CD or zn-pltd hex-hd mach

2шт.

18784R1

BOLT,Hex, 3/8"-16 x 2 3/4", G2

3/8 x 2-3/4 znd hex-hd mach

2шт.

189304

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

3/8 x 3-1/4 type 5, 425 baler

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

44

668925R1

BRACKET

drive shaft rear

1шт.

44

210626C1

SUPPORT

right rear bracket, 425 baler

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8-16 x 3/4 CD or zn-pltd short sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

45

201601C2

SUPPORT

rear bracket

1шт.

45

210624C1

SUPPORT, rear bracket, 425 baler

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 crg type 1

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 crg type 1

1шт.

18784R1

BOLT,Hex, 3/8"-16 x 2 3/4", G2

3/8 x 2-3/4 type 1

3шт.

18785R1

BOLT,Hex, 3/8"-16 x 3", G2

3/8 x 3 type 1

1шт.

102377

3/8-16 hex

7шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

7шт.

469668R1

WASHER

.406 x .734 x .056

1шт.

189304

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

3/8 x 3-1/4 type 5, 425 baler

1шт.

46

668911R1

BRACKET

drive shaft left front

1шт.

46

210620C1

SUPPORT

front left, 425 baler

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4 type 5

2шт.

47

564745R91

PULLEY

ASSY, drive belt idler

1шт.

20312R1

SCREW,Short NK, 5/8"-11 x 4 1/4", G2

BOLT, 5/8 x 4-1/4 sq-nk crg

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

473211R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 hex lock

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

578274R1

WASHER

.65 x 1 x .105 pln

1шт.

48

665668R1

SUPPORT

CLAMP, remote throttle stand

1шт.

271726

ROTOR,Hex, 5/8" - 11 x 2 3/4", Gr 5

5/8 x 2-3/4 type 5

1шт.

271729

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

5/8 x 3-1/2 type 5

1шт.
