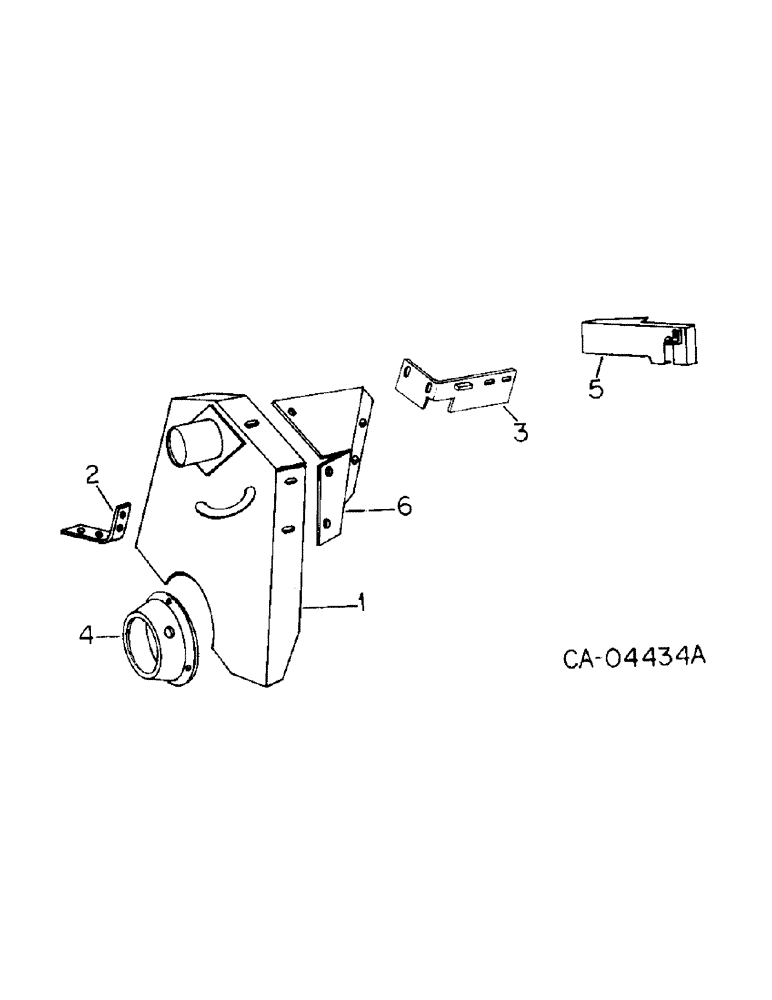

Запчасти Case IH 15 (B-09) - POWER TAKE-OFF DRIVE SHIELDS

1

210597C92

SHIELD

W/PRODUCT GRAPHIC, ZA015891, front

1шт.

2

208164C1

SUPPORT

right front shield

1шт.

2

210625C1

SUPPORT

right front shield, 425 baler

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 type 1

4шт.

469668R1

WASHER

.406 x .734 x .056

6шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

3

204834C1

SUPPORT, shield upper, replaces 208165C1

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 type 1

4шт.

469668R1

WASHER

.406 x .734 x .056

6шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

4

210562C2

SHIELD

flywheel cone

1шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW, 1/4 x 1/2 h/whd tap

3шт.

5

208174C1

SHIELD

ASSY, mule drive

1шт.

5

210621C1

SHIELD

ASSY, mule drive, 425 baler

1шт.

178373R1

WASHER

.531 x 1.000 x .056

1шт.

6

210509C1

SHIELD

PTO idler front

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 type 1

4шт.

469668R1

WASHER

.406 x .734 x .056

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.
