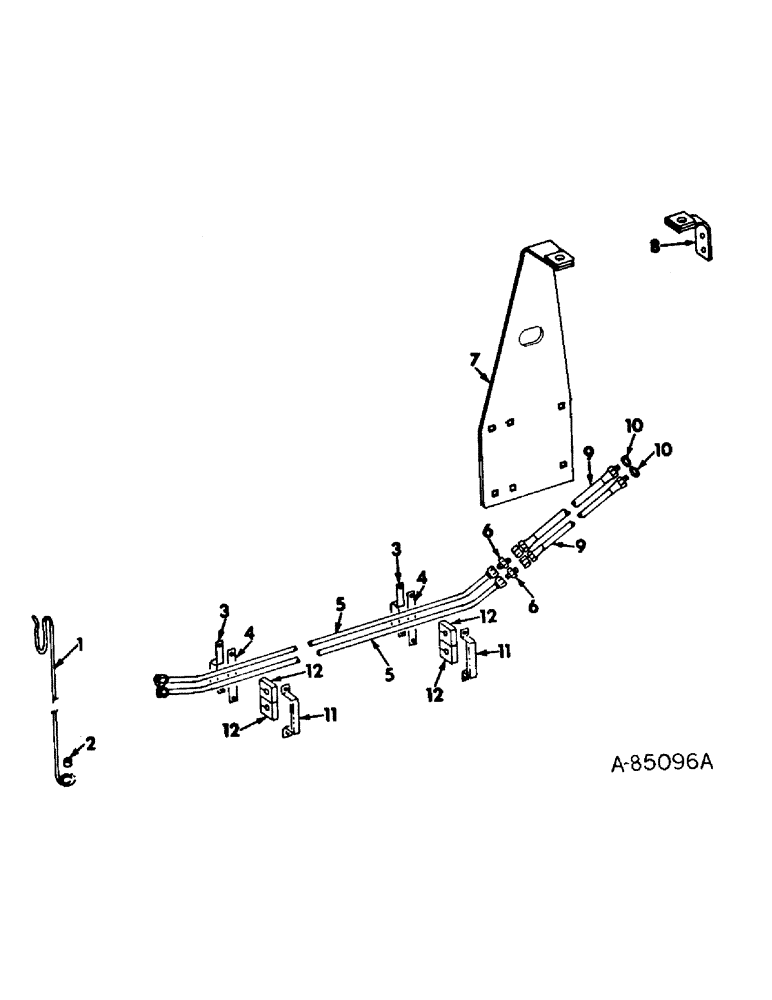

Запчасти Case IH 15 (B-08) - HYDRAULIC STEERING, NOT USED WITH 57 BALER / PRODUCT GRAPHICS

1

200508C1

SUPPORT

flexible hose

1шт.

180153

BOLT,Hex, 7/16" - 14 x 2", Gr 5

SCREW, 7/16-14 x 2 znd hex-hd cap

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 znd hex

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

893862R1

WASHER

15/32 x 1-1/4 x 11 ga C-Z

1шт.

2

353232R1

SPACER,3/8" Pipe x .344

hose support pipe

1шт.

3

200511C1

SUPPORT

BRACKET, tube mounting

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 znd hex-hd cap

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 znd hex-hd mach

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

4

200510C1

BAR

SPACER, tube mounting

2шт.

5

200509C11

HYD TUBE

TUBE ASSY, hydraulic

2шт.

6

9402788

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

7/8-14 37 deg hyd flared tube

2шт.

7

200512C2

PIVOT

ASSY, front

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd sq-nk crg

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

8

200515C1

BRACKET

PIVOT ASSY, rear

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 znd hex-hd mach

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

178758

SET SCREW,Sq Hd, 5/16" - 18 x 3/4", Cup Pt

SCREW, 5/16-18 x 3/4 C-Z sq-hd

1шт.

9

467163R91

HOSE

hyd 1/2 x 28 in.

2шт.

10

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32 class 4

2шт.

11

673385R1

CLAMP

hyd line

2шт.

12

673387R1

BUSHING

hyd line vibrator

4шт.

547494R92

DECAL

PRODUCT GRAPHIC, pkg IH trade mark

1шт.

64553C2

PRODUCT GRAPHIC

caution

2шт.

210572C1

PRODUCT GRAPHIC

model name, on sides

2шт.

2750825R2

DECAL

PRODUCT GRAHPIC, belt layout, on side between shields

1шт.

202707C2

PRODUCT GRAPHIC

PRODUCT GRAHPIC, caution, general warning

1шт.
